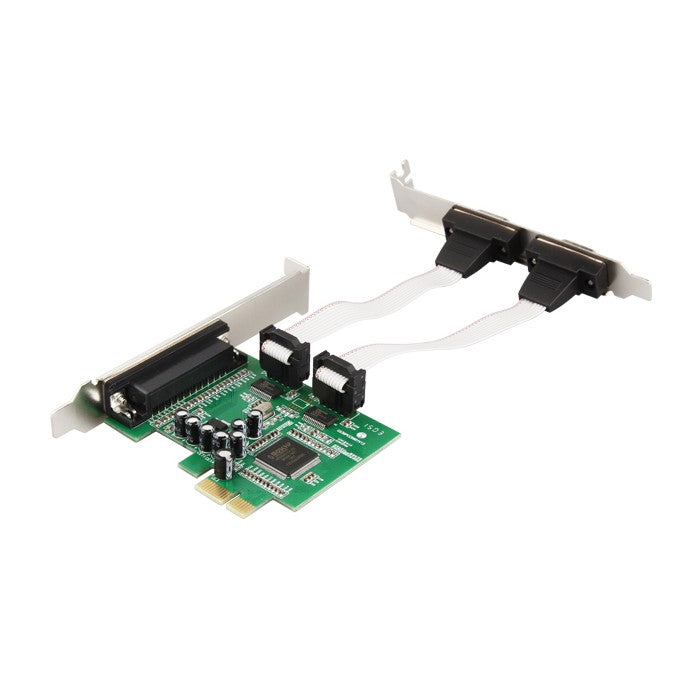

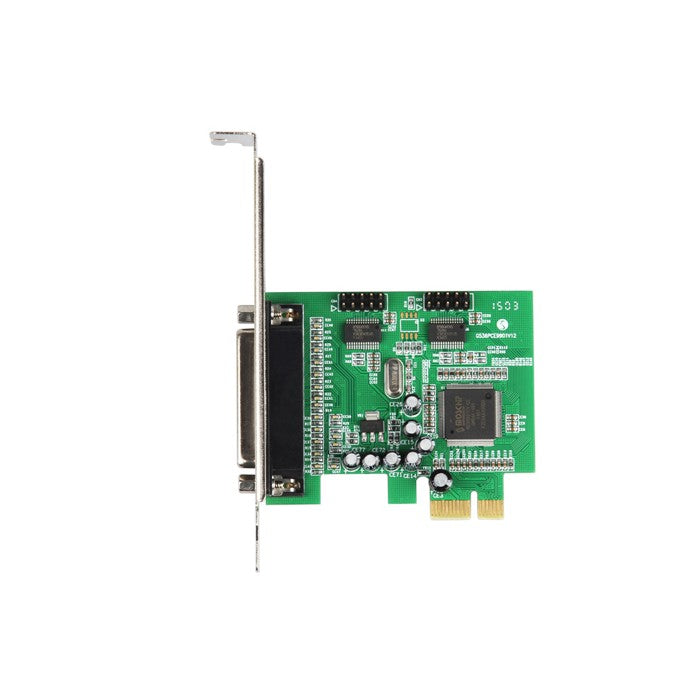

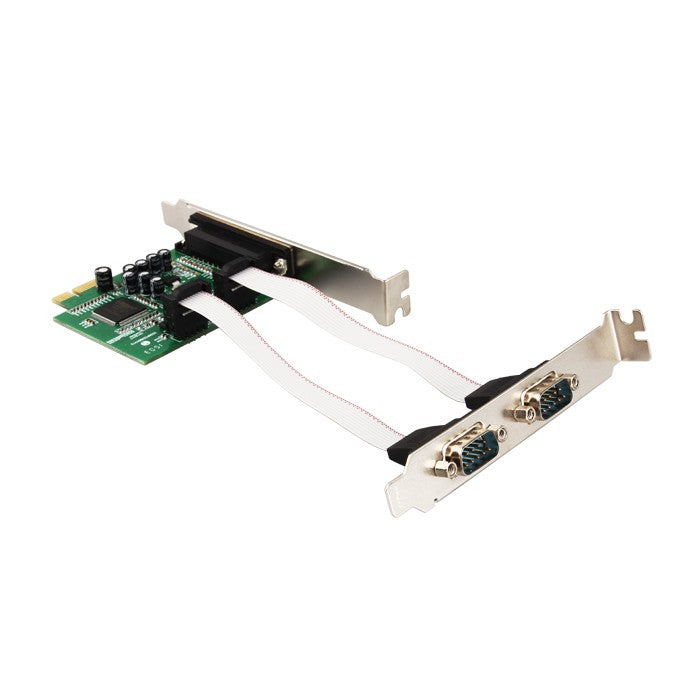

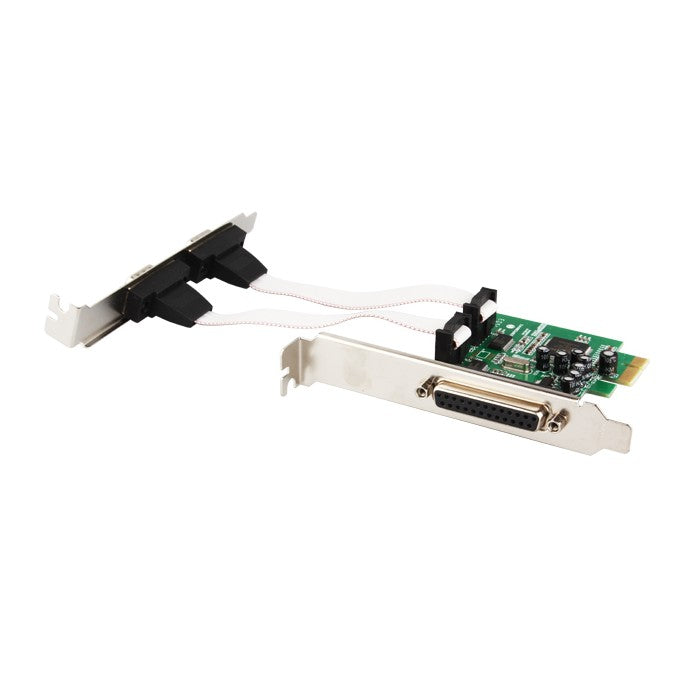

PCIe to 2 RS-232 DB-9 Serial Ports and 1 DB-25 Parallel Printer Ports (LPT1) Controller Card
$37.00
Skip to product information
PCIe to 2 RS-232 DB-9 Serial Ports and 1 DB-25 Parallel Printer Ports (LPT1) Controller Card
$37.00
- PCIe to 2 RS-232 DB9 Serial + 1 DB25 Parallel Printer Port (LPT1) Controller Card
- High-speed data transfer up to 1.5 MB/s
- Supports IEEE 1284 SPP/PS2/EPP/ECP modes
- Includes low-profile bracket and driver CD
- Compatible with Windows, Linux, and DOS
| PCIe to 2× RS-232 DB9 + 1× DB-25 Parallel Port (LPT1) Controller Card | |
| Interface | |
| Bus | PCI Express x1, compliant with PCI Express 2.0 Gen 1 |
|---|---|
| Compliance | PCIe card specifications, PCI Power Management 1.2 |
| Interrupts | Supports legacy and MSI interrupts |
| Power Management | ASPM power management supported |
| Serial Ports | |
| Connectors | 2 × RS-232 (DB9) |
| Speed | Bi-directional up to 25 Mbps per port |
| UART Support | Dual/Quad UARTs with full serial modem control |
| Data Format | Supports 5, 6, 7, 8, and 9-bit formats |
| Parity | Even, Odd, None, Space, Mark |
| FIFO Buffers | 256-byte transmit/receive per port |
| Flow Control | Hardware and software flow control |
| Special Features |
Slow IrDA mode up to 115.2 kbps Multi-drop 9-bit mode +5 V or +12 V output via COM 1st/9th pin DMA burst transfer supported Remote wakeup and transceiver shutdown support |
| Parallel Port | |
| Connector | 1 × DB-25 (LPT1) |
| Standards | IEEE 1284 – SPP, Byte, and ECP modes |
| Environmental | |
| Operating Temperature | 0 °C to 70 °C (standard) -40 °C to +85 °C (optional) |
| Applications | |
|
Serial attached devices Networking and monitoring equipment Data acquisition systems POS terminals and industrial PCs Embedded systems for I/O expansion |
|
