P71Y-P4
$1,130.00
Skip to product information
P71Y-P4
$1,130.00
- Intel® Core™ i5-1135G7 CPU
- 10.1", 12.1", 15", 17" & 19"
- Up to 64GB DDR4 memory
- 5x Gigabit LAN, 4x PoE
- 4x RS232 + RS485 / RS422
- Fanless, DC 9-36V input
- Windows 10, 11 & Linux
SKU:
P71Y-P4
| Industrial Panel PC – Model P71Y-P4 | |
| Material / Structure | Aluminum Alloy, Fanless Cooling Structure |
|---|---|
| Color | Silver |
| Dimensions | 396 × 333 × 64 mm (17" model) |
| Weight | 5.2 kg |
| Installation | VESA Mount / Embedded Panel Installation |
| Display | |
| Screen Size Options | 10.1", 12.1", 15", 17", 19" |
| Display Type | Industrial LCD Panel |
| Resolution | 1280 × 1024 (17" Model) |
| Brightness | 250 cd/m² |
| Touch Screen | |
| Type | Capacitive Multi-Touch (10-Point) |
| Light Transmittance | > 86% |
| Processor & Memory | |
| CPU | Intel® Core™ i5-1135G7, up to 4.20GHz, 4 Cores / 8 Threads, 8MB Cache |

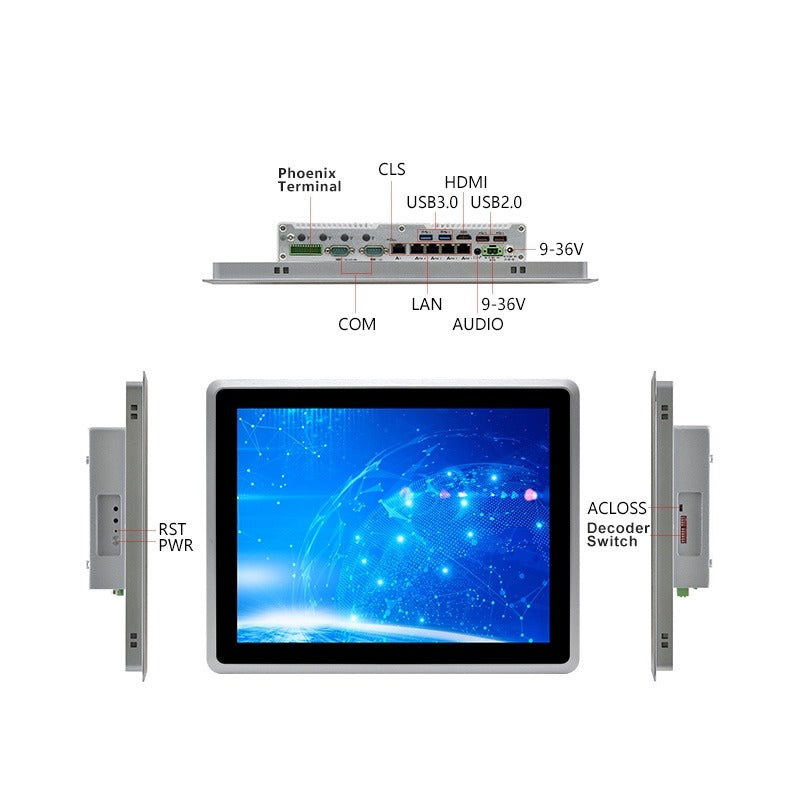

| Front I/O | |
| Power | Power Key, One-Key Restore / Reset, CMOS Reset, ACLOSS Power-On DIP Switch |
| USB | 2x USB3.0, 2x USB2.0 |
| LED | Power Indicator, Hard Disk Indicator |

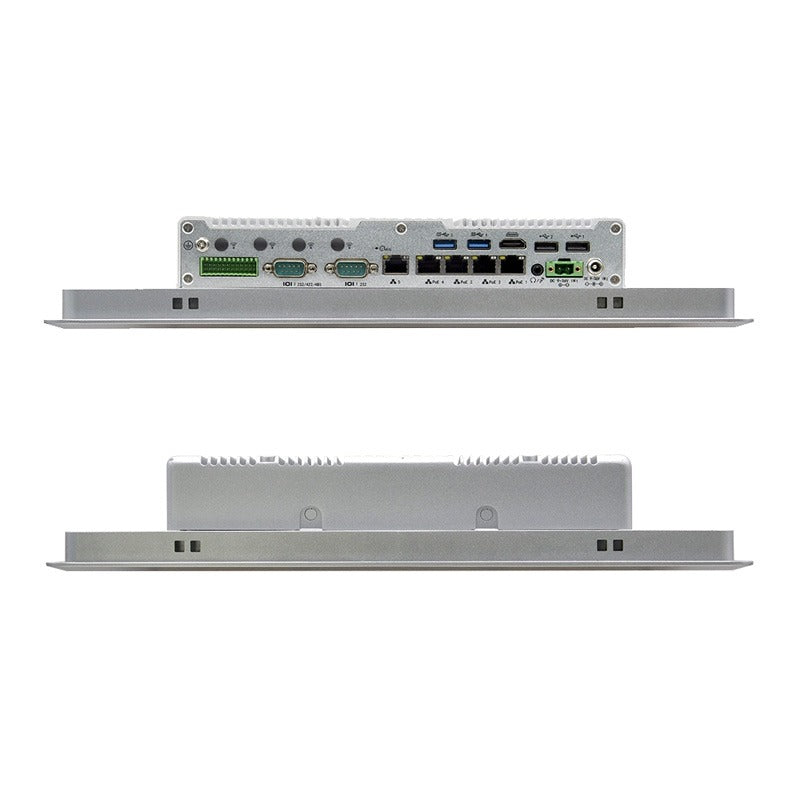

| Rear I/O | |
| LAN | 5x Intel I210 Gigabit LAN (4x PoE Supported) |
| Display Output | 1x HDMI |
| Serial Ports | 4x RS232 (COM2 supports RS485 / RS422, COM3 supports RS485) |
| Audio | Line-Out / Mic-In Combo |
| GPIO | 4 In / 4 Out via 12-Pin Phoenix Connector |
| Storage | |
| SATA | 1x 2.5" SATA HDD / SSD |
| mSATA | 1x mSATA Slot |
| M.2 | 1x M.2 Key-M 2280 NVMe PCIe x4 SSD |
| Expansion | |
| M.2 WiFi | Key-E 2230 WiFi Module Support |
| M.2 5G | Key-B 2242 / 3052 5G Module Support |
| Power | |
| Input Voltage | DC 9-36V |
| Power Supply | External Power Adapter |
| Power Consumption | AC-DC Adapter 60W or Higher |
| Operating System | |
| Windows | Windows 10, 11 & Linux |
| Linux | Ubuntu |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% – 95% RH, Non-Condensing |
| Vibration | 0.5g rms / 5-500Hz / Random |
