P6766
$995.00
Skip to product information
P6766
$995.00
- Intel® Core™ i5-1235U CPU
- 2x DDR4 SO-DIMM up to 64GB
- 3x Intel I210AT Gigabit LAN (2x PoE)
- 6x RS232/485, 5x USB3.0, 3x USB2.0
- HDMI + DisplayPort (Dual Display)
- DC 9-36V Wide Voltage, -10°C to 50°C
- Windows 10, 11 & Linux
SKU:
P6766
| Embedded Computer – Model P6766 | |
| Material / Construction | Aluminum + Sheet Metal, Fan Cooling |
|---|---|
| Color | Black |
| Dimensions | 188 × 164.7 × 66 mm |
| Weight | 1.6 kg |

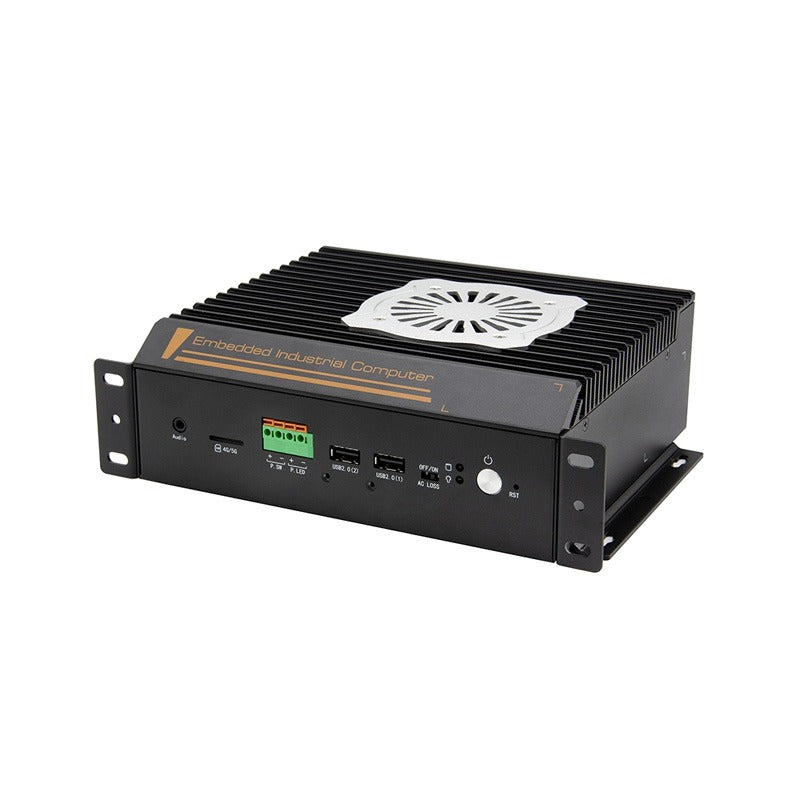

| Installation | Desktop / Wall Mount / DIN Rail (35mm) |
| Motherboard | |
| CPU | Intel® Core™ i5-1235U, 1.3GHz Base, Turbo 4.4GHz, 10 Core / 12 Thread, 15W TDP |
| Graphics | Intel® Iris Xe Graphics Eligible |
| Memory | 2x DDR4 SO-DIMM 3200MHz, Supports up to 64GB |

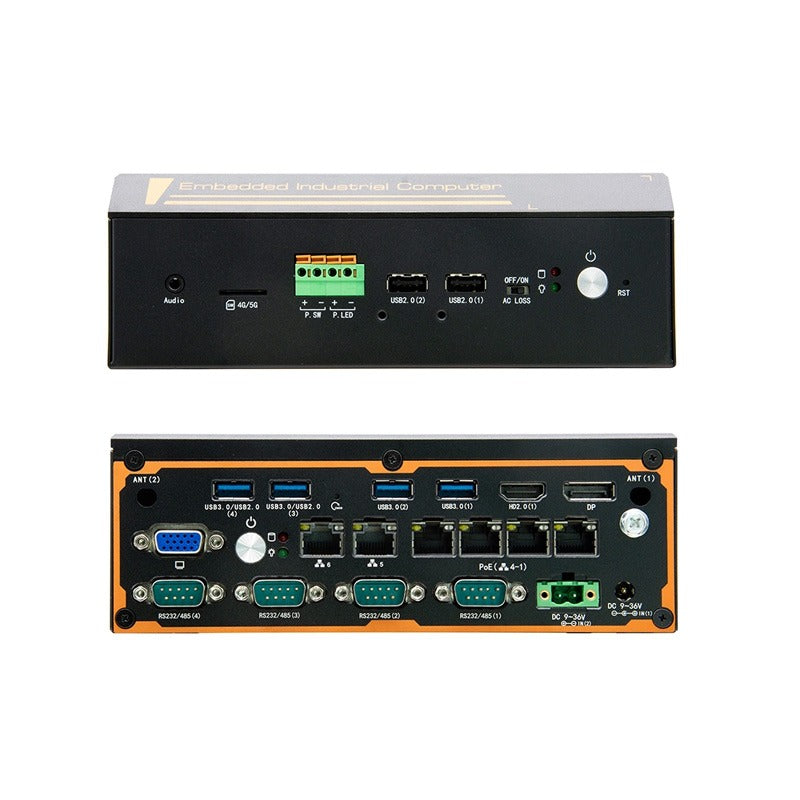

| Front Panel | |
| Switch | Boot Button, One-Key Restore, ACLOSS Power Switch |
| LED | Power Indicator, Hard Disk Indicator |
| USB | 2x USB2.0 |
| Audio | Line Out / Mic Combo |
| Phoenix Terminal | 4P (Power On Signal / Power Indicator Signal) |
| SIM Slot | Standard SIM Card Slot |

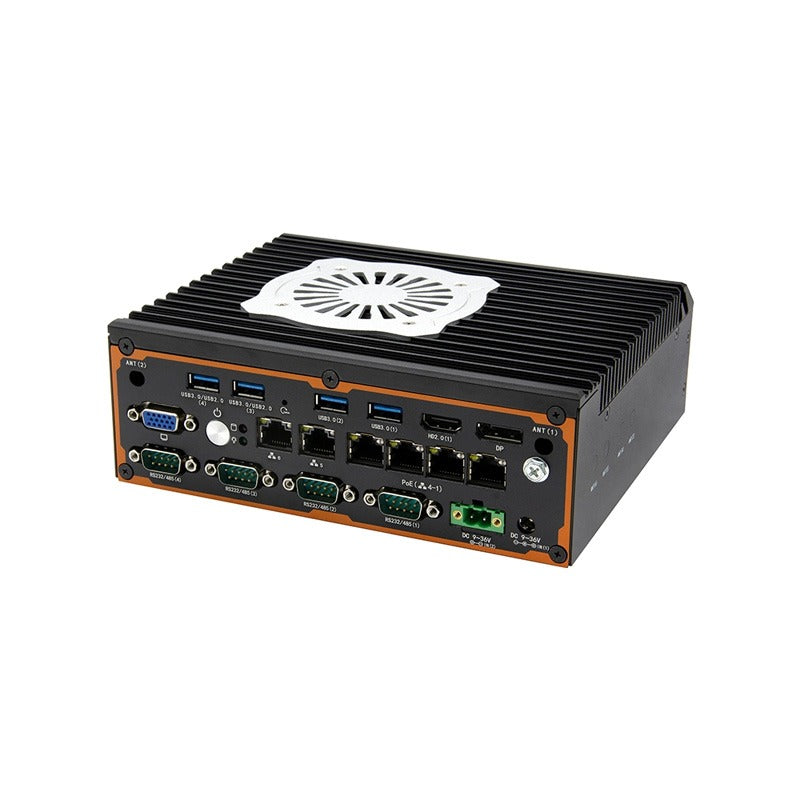

| Rear Panel | |
| Switch | CMOS Restore Button |
| Display | HDMI 2.0 + DisplayPort 1.4 (Dual Display) |
| Serial Ports | 6x RS232/485 DB9 Serial Ports |
| LAN | 3x Intel I210AT Gigabit LAN (2x PoE) |
| USB | 5x USB3.0, 1x USB2.0 |
| DIP Switch | 6 sets of 6-position DIP switches for RS232/485 switching |
| Power Interface | DC Jack or 2-Pin Phoenix Terminal |
| Storage | |
| 2.5" Drive Bay | 1x SATA 2.5" Hard Drive Bay |
| mSATA | 1x mSATA |
| M.2 | 1x M.2 Key-M 2280 NVMe PCIe x4 SSD |
| Expansion | |
| Mini PCIe | Supports WiFi + Bluetooth / 4G / CAN Module |
| System Support | |
| Operating System | Windows 10, Linux |
| Power | |
| Power Type | External Power Adapter |
| Input Voltage | DC 9-36V Wide Voltage |
| Power Output | AC to DC 90W |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5%-95% RH, Non-Condensing |
| Operating Vibration | 0.5g rms / 5-500Hz / Random |
