P6762
$1,005.00
Skip to product information
P6762
$1,005.00
- Intel® Core™ i5-1235U CPU
- 2x DDR4 SO-DIMM up to 64GB
- 6x Intel I210AT Gigabit LAN (4x PoE)
- 2x RS232/485, 4x USB3.0, 2x USB2.0
- HDMI + DisplayPort + VGA (Triple Display)
- DC 9-36V Wide Voltage, -10°C to 50°C
- Windows 10, 11 & Linux
SKU:
P6762
| Embedded Computer – Model P6762 | |
| Material / Structure | Aluminium Alloy + Sheet Metal, Fan Cooling |
|---|---|
| Color | Black + Silver |
| Dimensions | 188 × 164.7 × 66 mm |
| Weight | 1.6 kg |
| Installation | Desktop / Wall Mount / DIN Rail (35mm) |
| Motherboard | |
| CPU | Intel® Core™ i5-1235U, 1.30GHz Base, Turbo 4.4GHz, 10 Core / 12 Thread, 15W TDP |
| Graphics | Intel® Iris Xe Graphics Eligible |
| Memory | 2x DDR4 SO-DIMM 3200MHz, Supports up to 64GB |

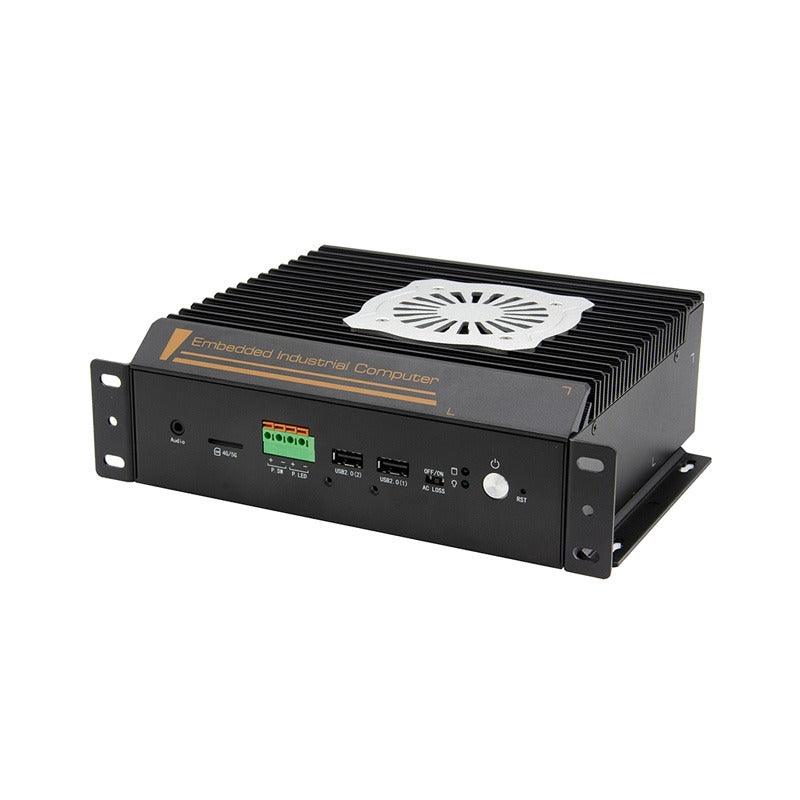

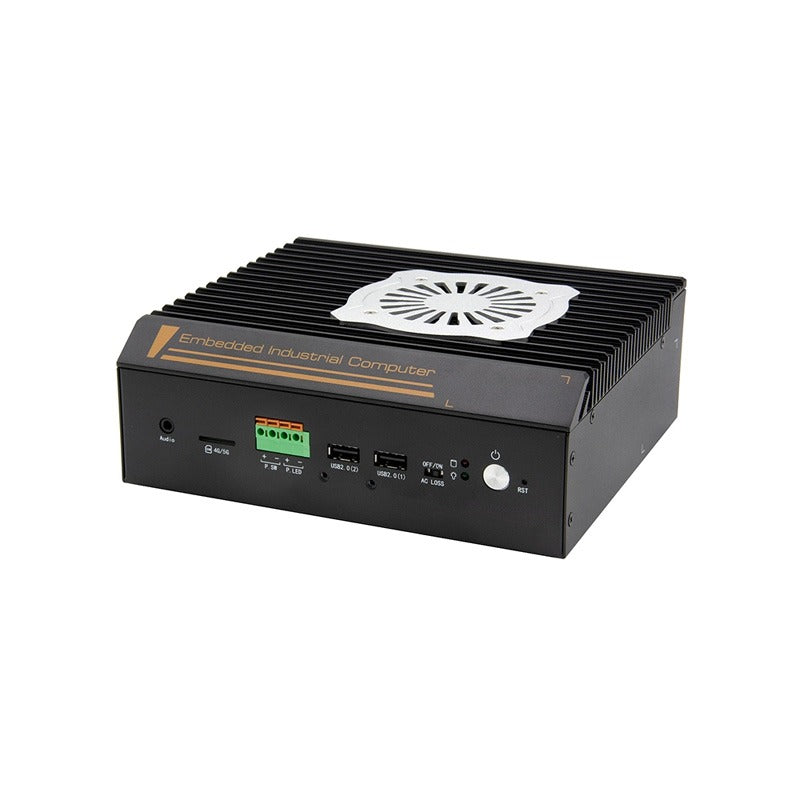

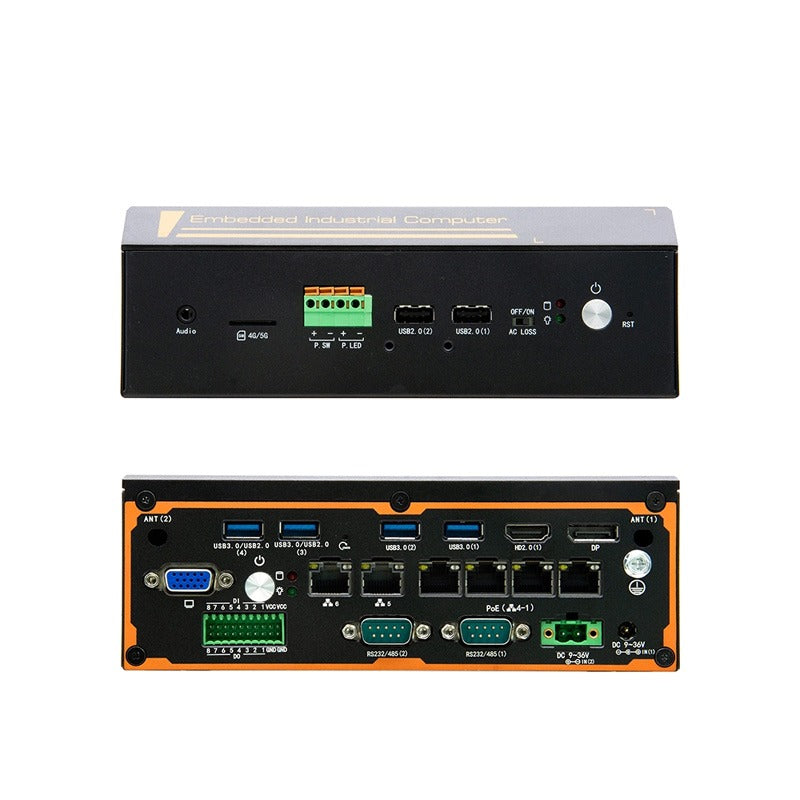

| Front Panel | |
| Switch | Boot Button, One-Key Restore, ACLOSS Power DIP Switch |
| LED | Power Indicator, Hard Drive Indicator |
| USB | 2x USB2.0 |
| Audio | Line Out / Mic Combo |
| Phoenix Terminal | 4P (Power On Signal / Power Indicator Signal) |
| SIM Slot | Standard SIM Card Slot |

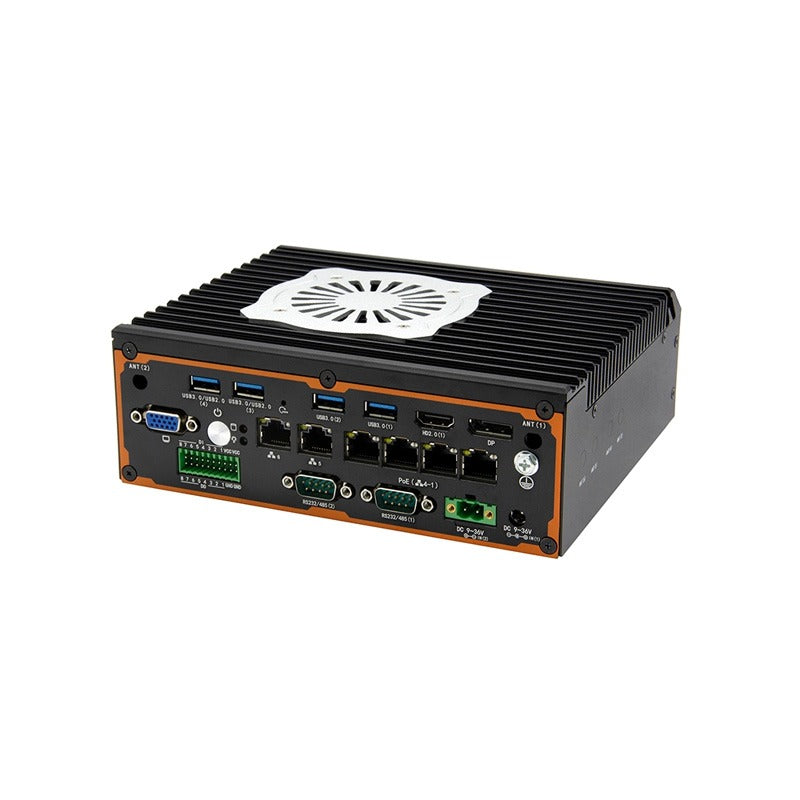

| Rear Panel | |
| Switch | Boot Button, CMOS Restore Button |
| Display | HDMI 2.0, DisplayPort 1.4, VGA (Triple Display Support) |
| COM | 2x RS232/485 DB9 Serial Ports |
| LAN | 6x Intel I210AT Gigabit LAN (4x PoE 15W) |
| DIO | 8 Input / 8 Output with Isolation |
| USB | 4x USB 3.0 |
| DIP Switch | 4 Sets of 6-Position DIP Switches for RS232/485 Switching |
| Power Connector | DC Jack or 2-Pin Phoenix Terminal |
| Storage | |
| 2.5" Drive Bay | 1x SATA 2.5" Hard Drive Bay |
| mSATA | 1x mSATA |
| M.2 | 1x M.2 Key-M 2280 NVMe PCIe x4 SSD |
| Expansion | |
| 5G Module | M.2 Key-B 3042/3052 5G Module Support |
| System Support | |
| Operating System | Windows 10, Linux |
| Power | |
| Power Supply Type | External Power Adapter |
| Input Voltage | DC 9-36V Wide Voltage |
| Power Output | AC to DC 60W or Higher |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5%-95% RH, Non-Condensing |
| Operating Vibration | 0.5g rms / 5-500Hz / Random |
