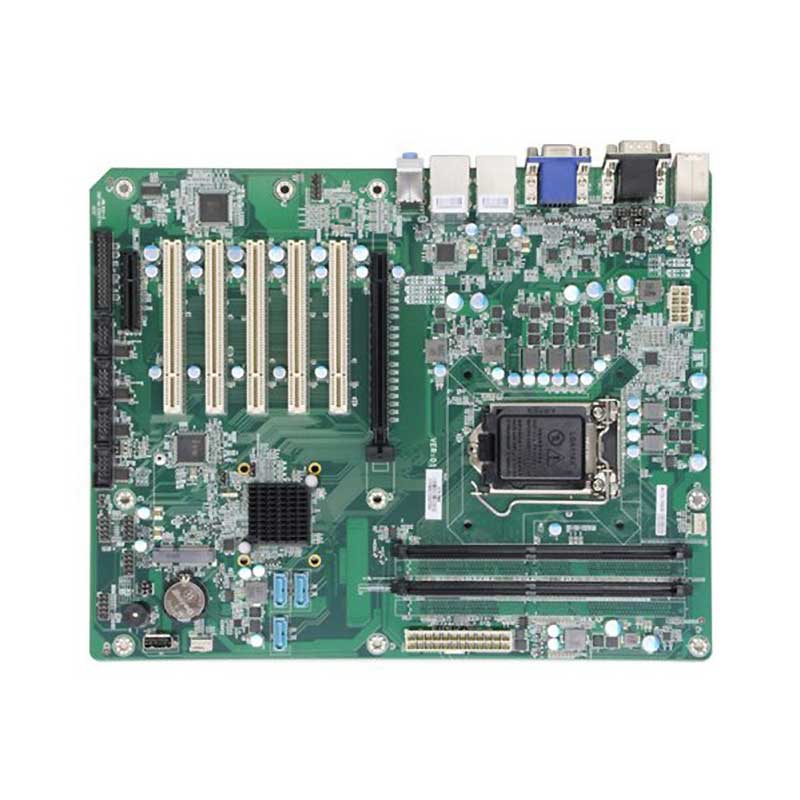

NX786 Motherboard
$395.00
Skip to product information
NX786 Motherboard
$395.00
- Intel® 6th, 7th, 8th & 9th Gen CPU
- 2x PCI-e Slots
- 5x 32-bit PCI Slots
- 6x Serial Ports & 1x Parallel Port
- Intel® H110 Chipset
- ATX Form Factor
- Win 7, 8, 10 & Linux
SKU:
NX786-B
| Motherboard – Model NX786 | |
| Form Factor | Standard ATX |
|---|---|
| Dimensions | 305mm x 245mm (12" x 9.6") |
| Chipset | Intel H110 |
| Processor | |
| Socket | LGA1151 |
| Supported CPU Series | Intel 6th/7th/8th/9th Gen Core i7/i5/i3 & Pentium/Celeron |
| Memory | |
| Capacity | Up to 64GB |
| Type | DDR4 3200MHz (Dual Channel) |
| DIMM Slots | 2x DDR4 DIMM |
| Storage | |
| SATA | 3x SATA III |
| mSATA | 1x mSATA |
| Expansion Slots | |
|
1x PCI-E x16 1x PCI-E x4 5x PCI 32-bit |
|
| Display | |
| Video Output |
VGA (1920×1080@60Hz) HDMI (4096×2160@60Hz) |
| Networking | |
| Ethernet | 2x Intel Gigabit LAN (i219V + i210) |

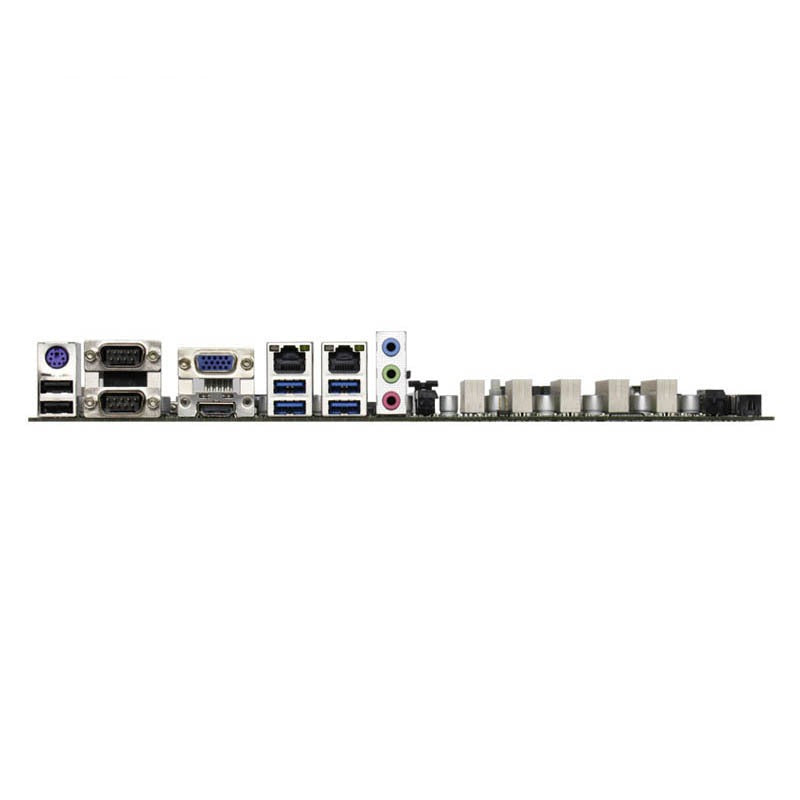

| I/O Ports | |
| Serial Ports | 6x RS232 COM (RS232/485/422 support) |
| USB | 4x USB 3.0 6x USB 2.0 |
| Legacy I/O | 1x LPT 1x PS/2 |
| Special Features | |
| GPIO | 4-in / 4-out |
| Watchdog Timer | 1–255s reset |
| Power | |
| Connectors | ATX 24-pin + 8-pin |
| Compatibility | |
| Operating Systems | Windows 7 / 8 / 10 & Linux |
