NX610M-T70
$920.00
Skip to product information
NX610M-T70
$920.00
- Intel® 12th, 13th, 14th Gen
- 2x PCI-e Slots
- 2x 32-bit PCI Slots
- 6x Serial Ports
- Intel® H610 Chipset
- Win 10, 11 & Linux
- Mini Tower Chassis
SKU:
NX610M-T70

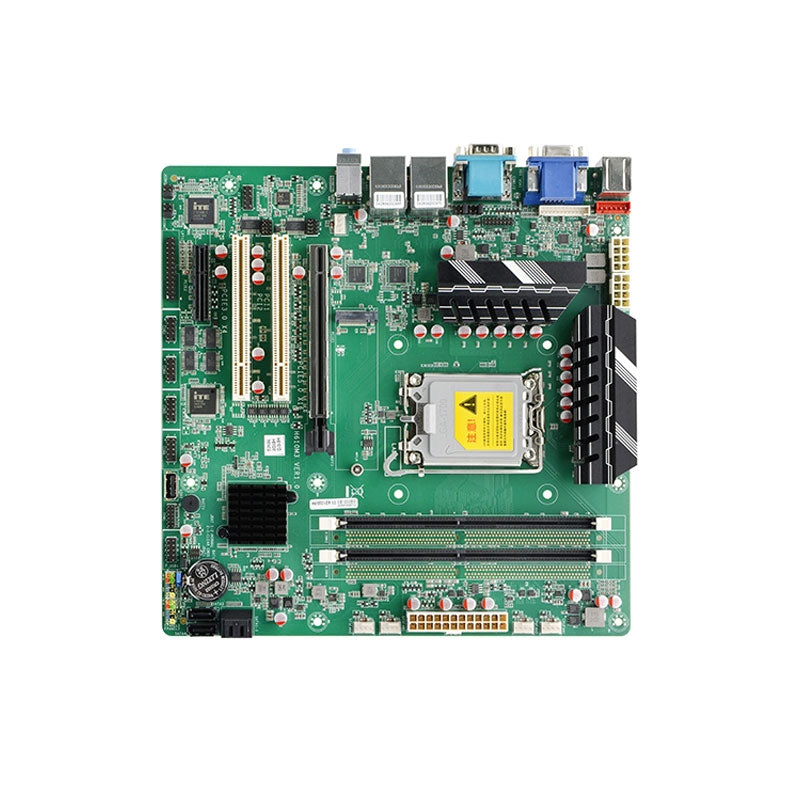

| Motherboard – Model NX610M | |
| Form Factor | mATX |
|---|---|
| Chipset | Intel® H610 |
| Dimensions | 245mm x 245mm |
| Processor | |
| Socket | LGA1700 |
| Supported CPU Series | 12th/13th/14th Gen Intel® Celeron / Pentium / Core™ i3 / i5 / i7 / i9 |
| Memory | |
| Capacity | Up to 128GB |
| Type | DDR4 DIMM, dual-channel, up to 3200MHz |
| Slots | 2× DDR4 DIMM |
| Display | |
| Integrated Graphics | Intel® HD Graphics, supports DirectX 12.1 and OpenGL 4.5, 4K display support |
| VGA | 1× VGA (max 1920×1200 @ 60Hz) |
| HDMI | 1× HDMI 1.4 (max 4096×2160 @ 24Hz) |
| Networking | |
| Ethernet | 2× Intel® I210AT Gigabit LAN |
| Features | Supports network wake-up (Wake-on-LAN) and PXE |
| Storage | |
| SATA | 4× SATA 3.0 (up to 6Gbps) |
| M.2 | 1× M.2 Key M 2280 (NVMe PCIe 3.0 x1 SSD) |
| Audio | |
| Codec | Realtek ALC897 7.1+2 channel high-fidelity audio controller |
| Ports | Supports Mic-in, Line-out, Line-in |
| Expansion Slots | |
|
1× PCIe 5.0 x16 1× PCIe 3.0 x4 2× PCI-32 |
|

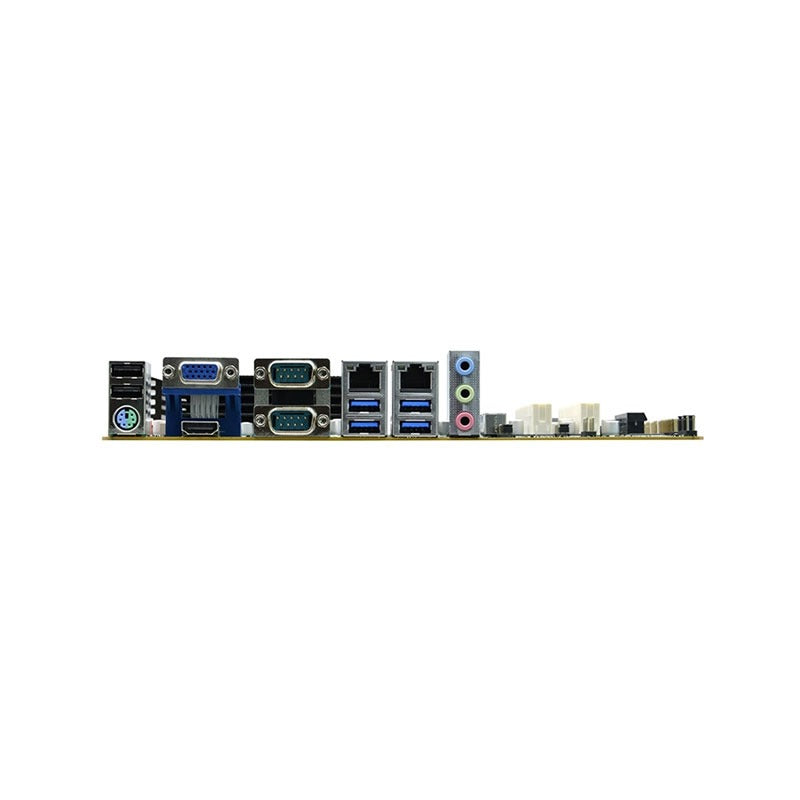

| Rear I/O Ports | |
| PS/2 | 1× PS/2 (keyboard and mouse, expandable) |
| Video Outputs | 1× DB15 VGA 1× HDMI 1.4 |
| Serial Ports | 2× DB9 RS232 (supports 9th-pin power and RS485/422) |
| USB | 4× USB 3.0 (5Gbps, single-port up to 2A) 2× USB 2.0 |
| LAN | 2× RJ45 Gigabit LAN |
| Audio Ports | 3× audio jacks (Line-out, Mic-in, Line-in) |
| Internal Headers & Built-in I/O | |
| USB Headers | 2× USB 2.0 (2×5-pin), 1× vertical USB 2.0 |
| Front Panel | 1× front panel audio (2×5-pin) 2× front panel button/LED headers (2×5-pin) |
| Video Headers | 1× JVGA (12-pin, same signal as DB15) 1× JHDMI (2×8-pin) |
| TPM | 1× TPM header (2×6-pin) |
| Serial Headers | 4× RS232 (2×5-pin) |
| Parallel Header | 1× LPT (2×13-pin) |
| Cooling & Fan Headers | |
| Fan Interfaces | 1× 4-pin CPU fan header 4× 4-pin system fan headers |
| BIOS & Special Features | |
| BIOS | 128Mb Flash ROM |
| Watchdog Timer | 256 levels (0–255 seconds), hardware reset support |
| Power | |
| Power Connectors | ATX 24-pin + 8-pin (adopts ATX 24-pin and 8-pin power supply) |
| Environment | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Working Humidity | 5% – 95% relative humidity (non-condensing) |
| Compatibility | |
| Operating Systems | Windows 10, Windows 11, Linux |

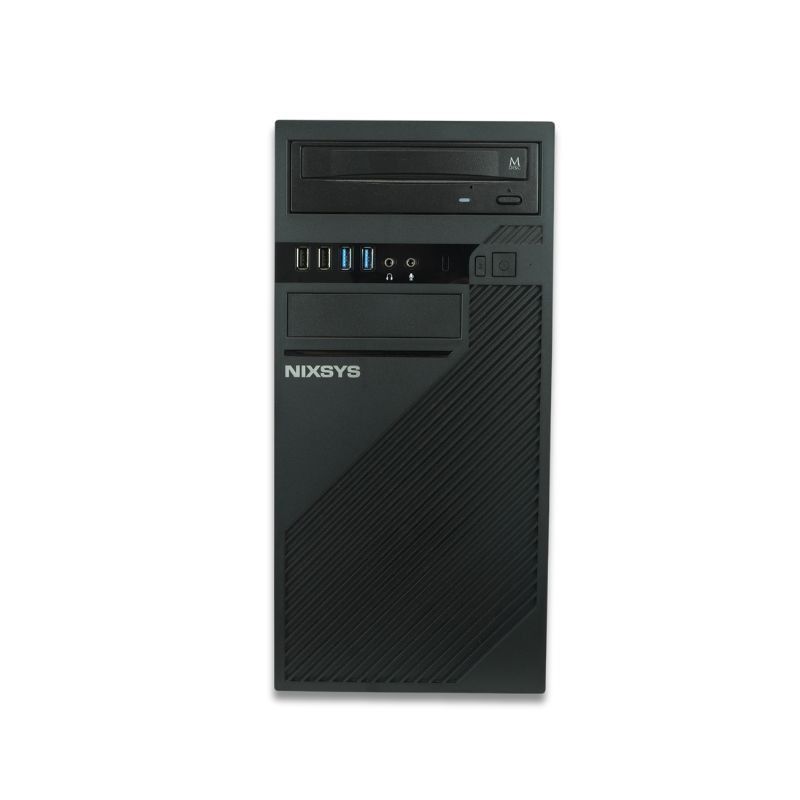

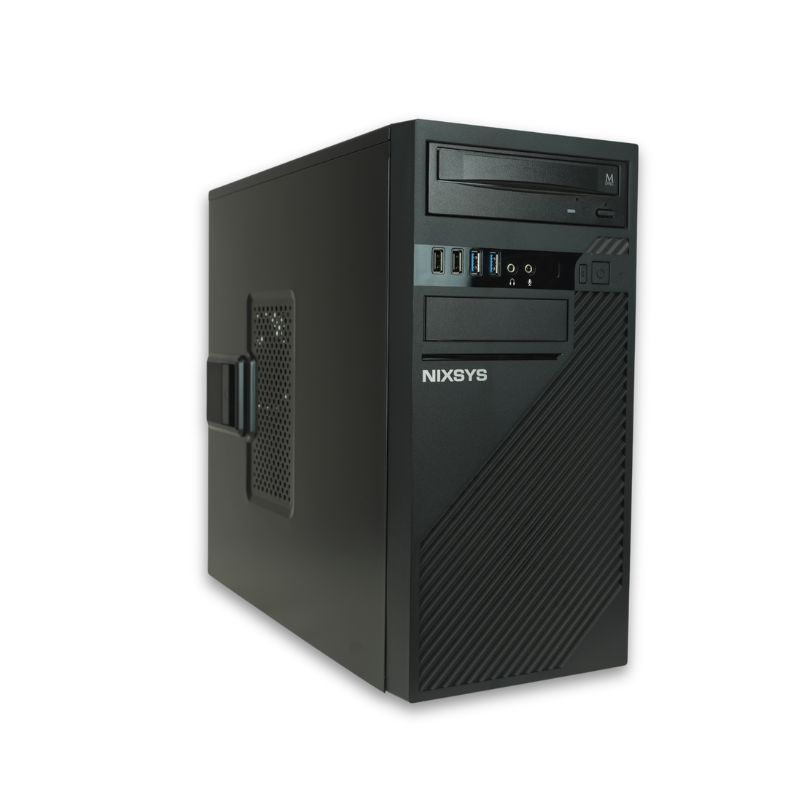

| Chassis | |
| Form Factor | Mini Tower Chassis |
|---|---|
| Motherboard Form Factor | Micro-ATX |
| Dimensions |
Height: 13.8" (350 mm) Width: 7.5" (190 mm) Depth: 15" (380 mm) |
| Approx. Weight | 18 lbs |
| Drive Bays | |
| Internal | 1x 3.5" bay 1x 2.5" bay |
| External | 2x 5.25" bays 2x 3.5" bays |
| Front Panel | |
| Buttons | Power On/Off Power Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 2x USB 2.0 ports |
| Audio | 1x 3.5mm Audio In 1x 3.5mm Audio Out |
| Expansion Slots | |
| 4x Full-Height ISA/PCI Expansion Slots | |
| System Cooling | |
| Fans | 1x 120mm Rear Fan CPU heatsink and fan |
