NX586-T70
$835.00
Skip to product information
NX586-T70
$835.00
- Intel® 6th, 7th, 8th, and 9th Gen
- 2x PCI-e Slots
- 2x 32-bit PCI Slots
- 6x Serial Ports & 1x Parallel Port
- USB 2.0 & 3.0 Ports
- Windows 7, 8, 10 & Linux
- Mini Tower Chassis
SKU:
NX586-T70

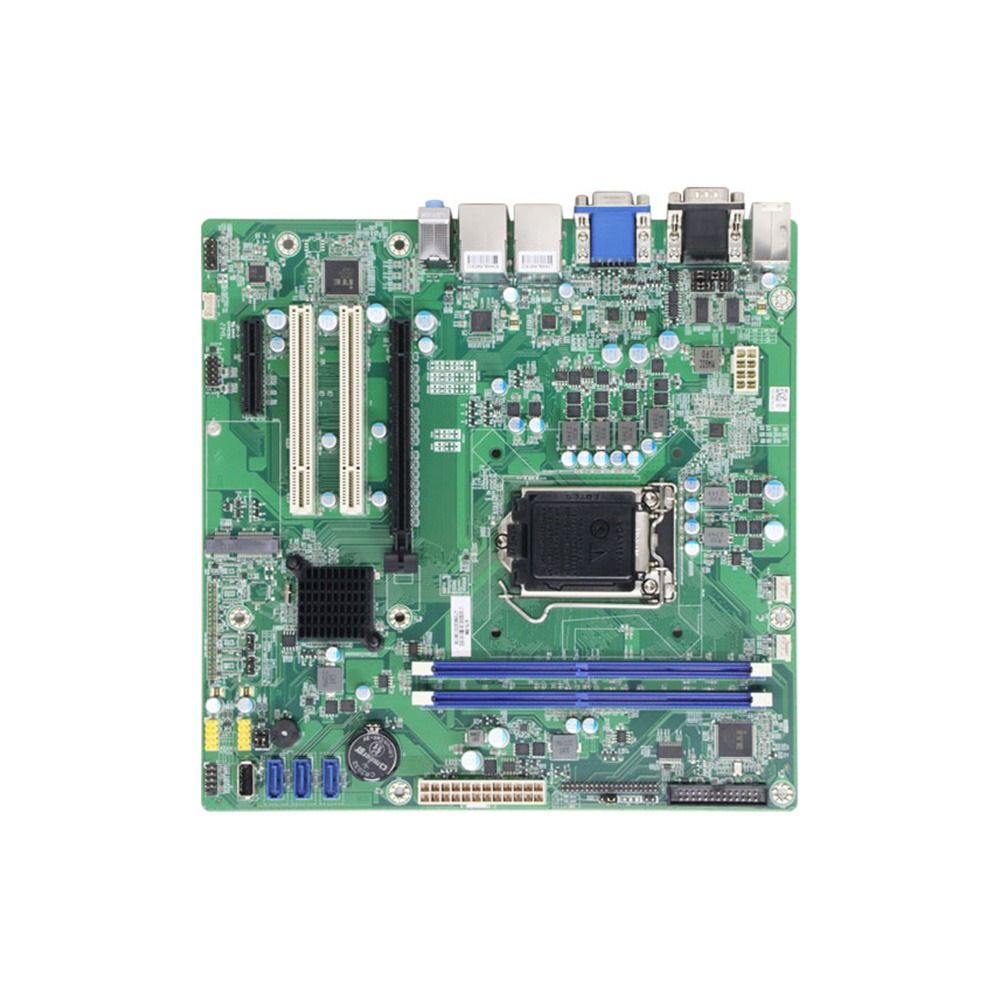

| Motherboard – Model NX586 | |
| Form Factor | Micro-ATX |
|---|---|
| Chipset | Intel H110 |
| Dimensions | 244mm x 244mm (9.6" x 9.6") |
| Processor | |
| Socket | LGA1151 |
| Supported CPU Series | Intel 6th/7th/8th/9th Gen Core i9/i7/i5/i3, Pentium, and Celeron |
| Memory | |
| Capacity | Up to 64GB (2x 32GB) |
| Type | DDR4 2133/2400/2666MHz |
| DIMM Slots | 2x DDR4 DIMM |
| Storage | |
| SATA | 3x SATA 3.0 |
| mSATA | 1x mSATA SSD |
| Expansion Slots | |
|
1x PCIe 2.0 x16 1x PCIe 2.0 x4 2x PCI 32-bit |
|
| Networking | |
| Ethernet | 2x Intel Gigabit LAN (I219-V + I210) |
| Speed | 10/100/1000 Mbps |
| Display | |
| Video Output |
VGA (1920×1080@60Hz) HDMI (4096×2304@60Hz) |

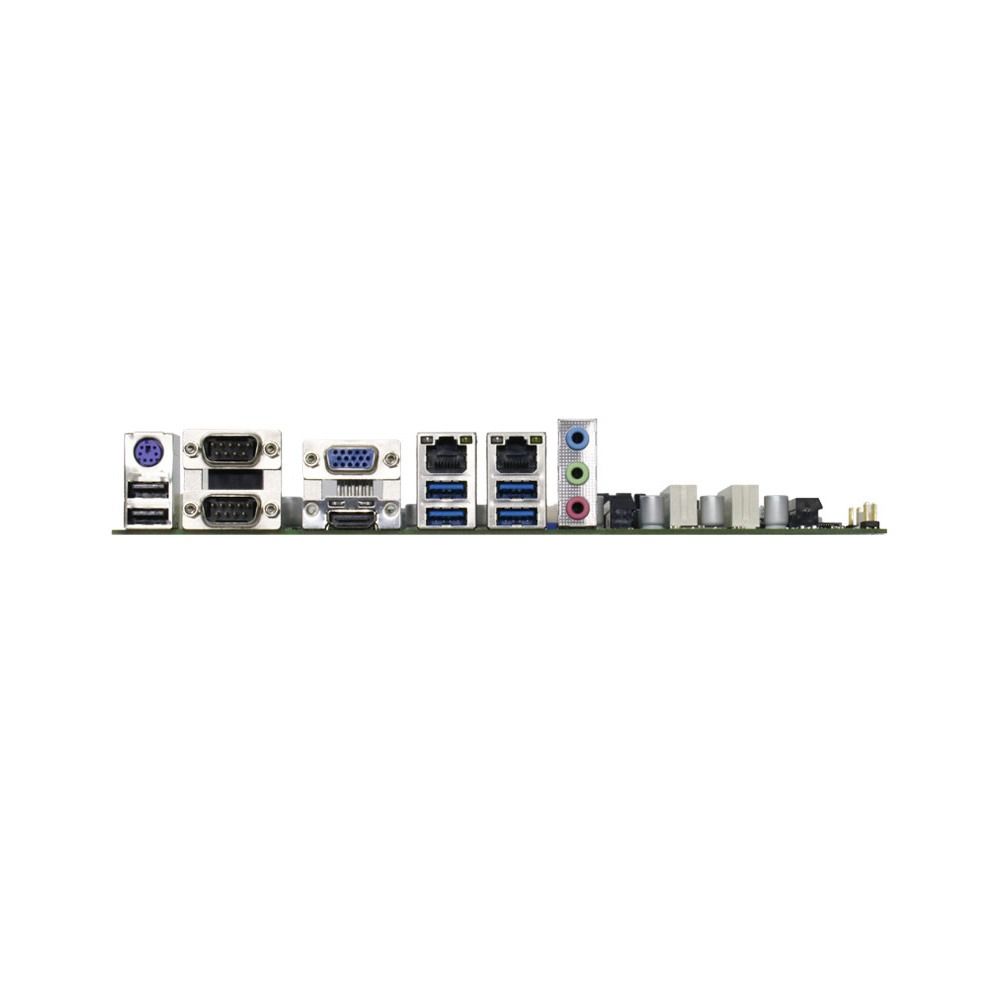

| I/O Ports | |
| Serial Ports | 6–10x COM (RS-232/485/422 configurable) |
| USB | 4x USB 3.0 6x USB 2.0 |
| Legacy I/O | 1x LPT 1x PS/2 |
| Audio | Realtek ALC892 (Line-out, Line-in, Mic-in) |
| Special Features | |
| GPIO | 4-in / 4-out (2x5 pin 2.54mm header) |
| Watchdog Timer | 1–255s configurable reset |
| Power | |
| Connector | ATX 24-pin |
| Environment | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| Compatibility | |
| Operating Systems | Windows 7 / 8 / 10 & Linux |
| Chassis | |
| Form Factor | Mini Tower Chassis |
|---|---|
| Motherboard Form Factor | Micro-ATX |
| Dimensions |
Height: 13.8" (350 mm) Width: 7.5" (190 mm) Depth: 15" (380 mm) |
| Approx. Weight | 18 lbs |
| Drive Bays | |
| Internal | 1x 3.5" bay 1x 2.5" bay |
| External | 2x 5.25" bays 2x 3.5" bays |
| Front Panel | |
| Buttons | Power On/Off Power Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 2x USB 2.0 ports |
| Audio | 1x 3.5mm Audio In 1x 3.5mm Audio Out |
| Expansion Slots | |
| 4x Full-Height ISA/PCI Expansion Slots | |
| System Cooling | |
| Fans | 1x 120mm Rear Fan CPU heatsink and fan |
