NX581-T50
$920.00
- Intel® 2nd & 3rd Gen CPU
- 2x PCI 32-bit Slots
- 2x PCI-e Slots
- 2x Serial Port & 1x Parallel Port
- 8x USB 2.0 Ports
- Windows XP, 7, 8, 10 & Linux
- Micro Tower Chassis
SKU:
NX581-T50

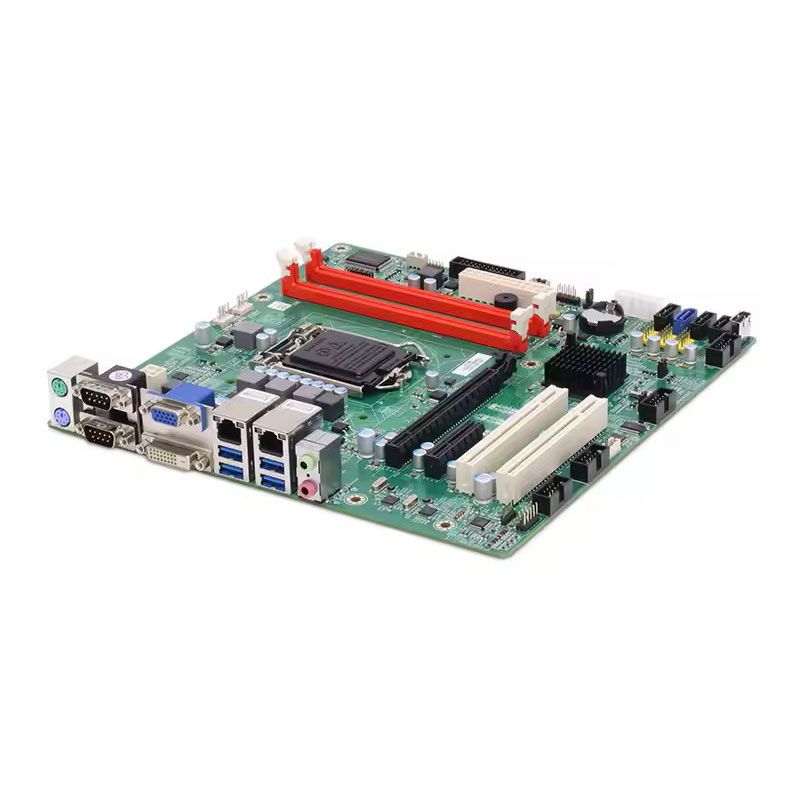

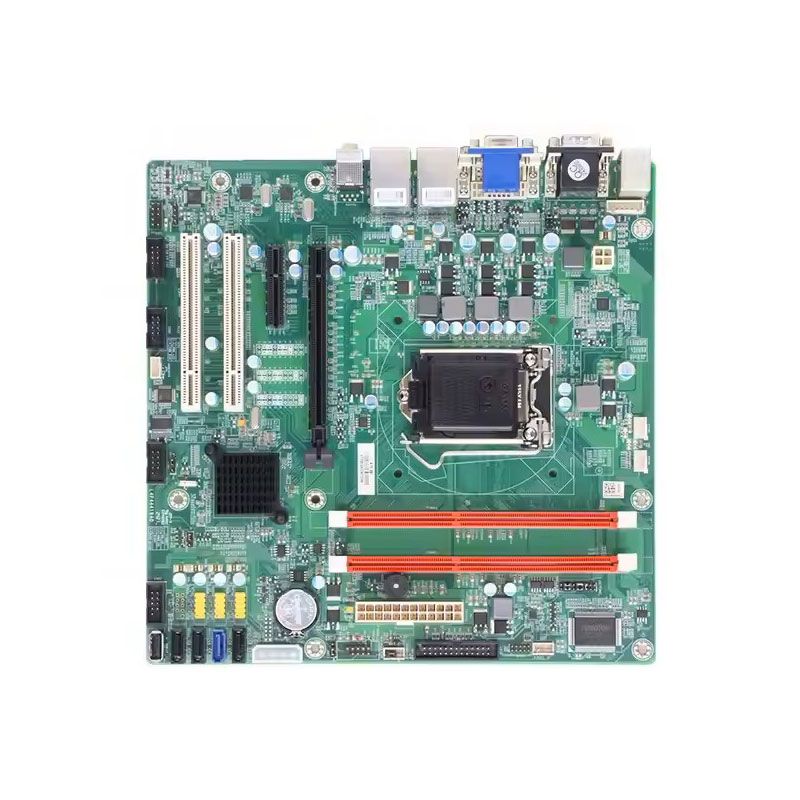

| Motherboard – Model NX581 | |
| Form Factor | Micro-ATX |
|---|---|
| Chipset | Intel B75 |
| Dimensions | 244mm x 244mm (9.6" x 9.6") |
| Processor | |
| Socket | LGA1151 |
| Supported CPU Series | Intel 2nd & 3rd Gen Core i7/i5/i3, Pentium, and Celeron |
| Memory | |
| Capacity | Up to 32GB |
| Type | DDR3 1066/1333/1600MHz |
| DIMM Slots | 2x DDR3 DIMM |
| Storage | |
| SATA | 1x SATA 3.0 & 3x SATA 2.0 |
| mSATA | 1x mSATA SSD |
| Expansion Slots | |
|
1x PCIe 2.0 x16 1x PCIe 2.0 x4 2x PCI 32-bit |
|
| Networking | |
| Ethernet | 2x Intel Gigabit LAN |
| Speed | 10/100/1000 Mbps |
| Display | |
| Video Output |
VGA (1920×1080@60Hz) HDMI (4096×2304@60Hz) |

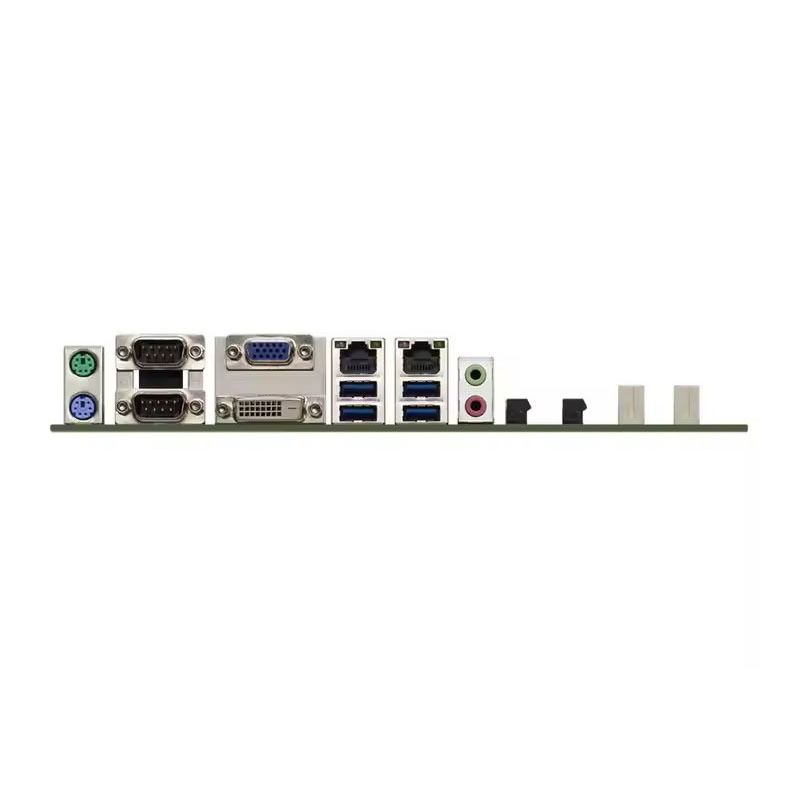

| I/O Ports | |
| Serial Ports | 6x COM (RS-232/485/422 configurable) |
| USB | 4x USB 3.0 Up to 8 USB 2.0 (optional) |
| Legacy I/O | 1x LPT 1x PS/2 |
| Audio | Realtek ALC662 (Line-out, Line-in, Mic-in) |
| Special Features | |
| GPIO | 4-in / 4-out (2x5 pin 2.54mm header) |
| Watchdog Timer | 1–255s configurable reset |
| Power | |
| Connector | ATX 24-pin |
| Environment | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| Compatibility | |
| Operating Systems | Windows XP / 7 / 8 / 10 & Linux |

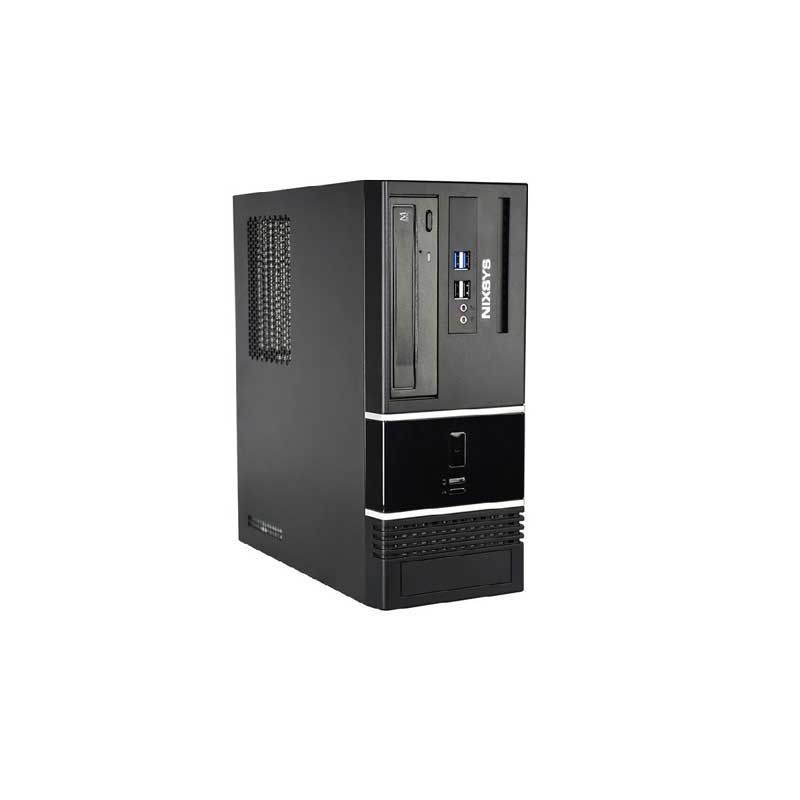

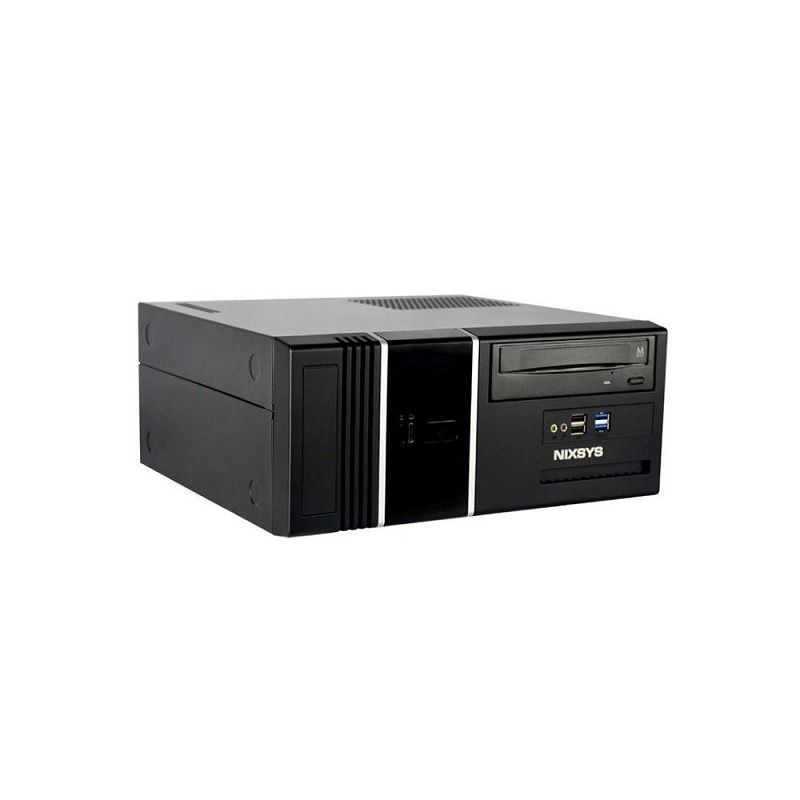

| Chassis | |
| Form Factor | Micro Desktop Chassis |
|---|---|
| Motherboard Form Factor | Micro-ATX |
| Dimensions |
Height: 5.5" (140 mm) Width: 12.0" (305 mm) Depth: 12.5" (318 mm) |
| Approx. Weight | 18 lbs |
| Drive Bays | |
| Internal | 1x 3.5" bay |
| External | 1x 3.5" bay 1x 5.25" bay |
| Front Panel | |
| Buttons | Power On/Off System Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 4x USB ports |
| Expansion Slots | |
| 4x Half-height PCI Expansion Slots | |
| System Cooling | |
| Fans | CPU heatsink and fan |
| Power Supply | |
| Output Watts | 300 Watts |
| AC Input | 115/230V~, 7/4A, 60/50Hz |
