NX110-T30
$635.00
Skip to product information
NX110-T30
$635.00
- Intel® 6th & 7th Gen
- 2x PCI-e Slots
- 2x 32-bit PCI Slots
- 1x Serial Port & 1x Parallel Port
- 8x USB 2.0 Ports
- Windows 7, 8, 10, 11 & Linux
- Slim Workstation Chassis
SKU:
NX110-T30
| Motherboard – Model NX110 | |
| Form Factor | Micro ATX |
|---|---|
| Dimensions | Height: 9.6" (244 mm) Width: 7.0" (180 mm) |
| Processor | |
| Socket | LGA1151 |
| Series | Intel 6th & 7th Generation Core i7/i5/i3 Pentium / Celeron Processors |
| Memory | |
| Capacity | Up to 32 GB |
| Type | DDR4-2400/2133 MHz Unbuffered |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| DIMM Sockets | 2 |
| On-Board Devices | |
| Chipset | Intel H110 |
| SATA | 4x SATA 6Gb/s ports |
| Network Controller | 1x Realtek Gigabit Ethernet |
| Graphics / Audio | Realtek ALC887 Flexible 8-Channel Audio CODEC with Jack Sensing |
| Headers | 1x CPU Fan 1x System Fan 2x USB 3.0 / 2.0 1x USB 2.0 / 1.1 1x Front Panel Header 1x Front Panel Audio 1x Serial |
| Expansion Slots | |
| 1x PCIe 3.0/2.0 x16 1x PCIe 2.0 x1 2x PCI | |
| System BIOS | |
| BIOS Type | 2 x 64 Mbit flash |
| Features | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |

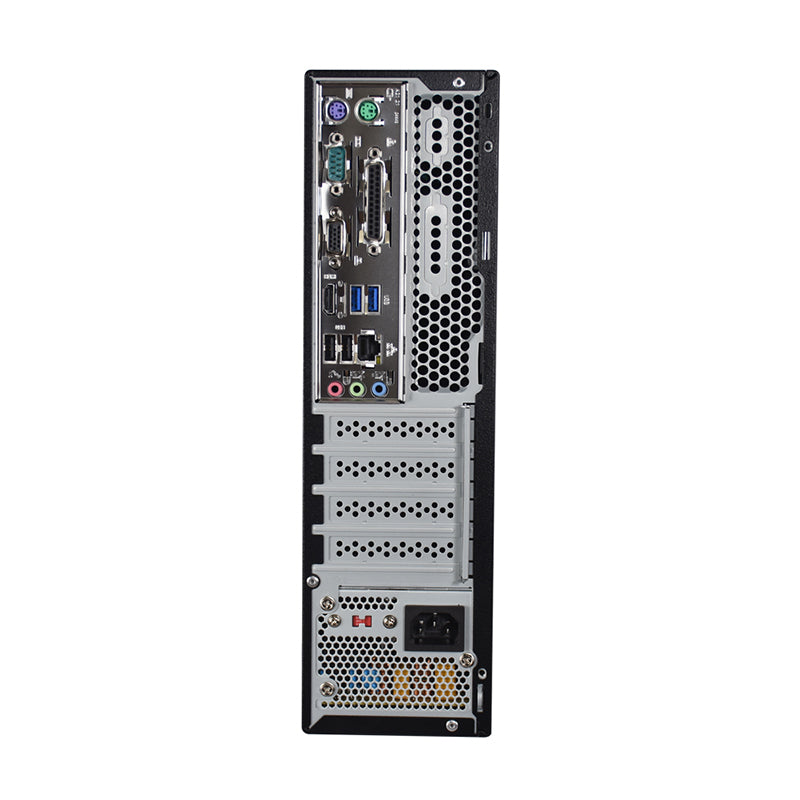

| Rear I/O | |
| Video | 1x HDMI 1x VGA |
| LAN | 1x RJ45 Port |
| USB | 2x USB 3.0 Ports 2x USB 2.0 Ports |
| Keyboard / Mouse | 1x PS/2 Keyboard and Mouse Port |
| Serial | 1x Serial Port |
| Audio | 3x Audio Jacks (Line In, Line Out, Mic In) |
| Compatibility | |
| Supported Operating Systems | Windows 7, 8, 10, 11 & Linux |
| Chassis | |
| Form Factor | Slim Micro Desktop Chassis |
|---|---|
| Motherboard Form Factor | Micro-ATX |
| Dimensions |
Height: 4.0" (102 mm) Width: 15.5" (394 mm) Depth: 13.0" (330 mm) |
| Approx. Weight | 17 lbs |
| Drive Bays | |
| Internal | 1x 3.5" bay |
| External | 1x 3.5" bay 1x 5.25" bay |
| Front Panel | |
| Buttons | Power On/Off System Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 4x USB ports |
| Expansion Slots | |
| 4x Half-height PCI Expansion Slots | |
| System Cooling | |
| Fans | CPU heatsink and fan |
| Power Supply | |
| Output Watts | 300 Watts |
| AC Input | 115/230V~, 7/4A, 60/50Hz |
