NX-i390 Front

NX-i395

$1,195.00
Skip to product information
NX-i390 Front
NX-i395

NX-i395

$1,195.00
  • Intel® Celeron or Pentium D CPU
  • 2x Full-Size ISA Slots
  • 5x 32-bit PCI Slots
  • 1x Serial Port & 1x Parallel Port
  • Intel® 945GV Chipset
  • MS DOS, Win 2K, XP, 7 & Linux
  • 3U Rackmount Chassis

SKU:
NX-i395
Base Computer *
Chassis *
Motherboard *
Processor
Memory
Primary Hard Drive (for Operating System) *
Secondary Drive(s) (max 3)
Floppy Drive
Video Adapter *
Network Adapter (max 1) *
Additional PCI Adapter (max 2)
Header Options
Power Supply *
Operating System
Mounting Hardware *
Keyboard and Mouse
Warranty *
Monitor

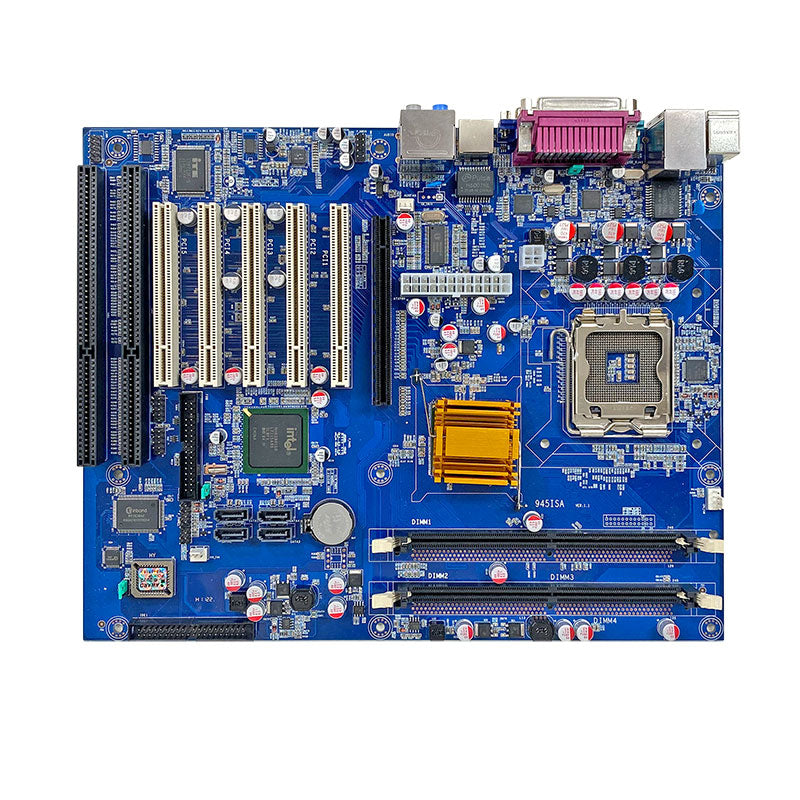

Motherboard – Model NX945
Form FactorATX
DimensionsHeight: 12.0" (306 mm)
Width: 8.0" (203 mm)
Processor
Socket775
SeriesIntel Celeron D / Intel Pentium D
Memory
Capacity4GB
TypeDDR2 533/667/800 (Unbuffered)
DIMM Sizes256MB, 512MB, 1GB, 2GB
On-Board Devices
ChipsetIntel 945GV Chipset
IDE1x Enhanced IDE Channel
SATA4x SATA Devices
Network Controllers2x RTL8111C 10/100/1000 Ethernet Controllers
GraphicsIntel 945GV Chipset
Headers1x USB 2.0 Header
Expansion Slots
2x Full-Size ISA
5x PCI 32-bit
1x PCIe (x16)
System BIOS
BIOS TypeAward BIOS
FeaturesACPI / PnP Supported

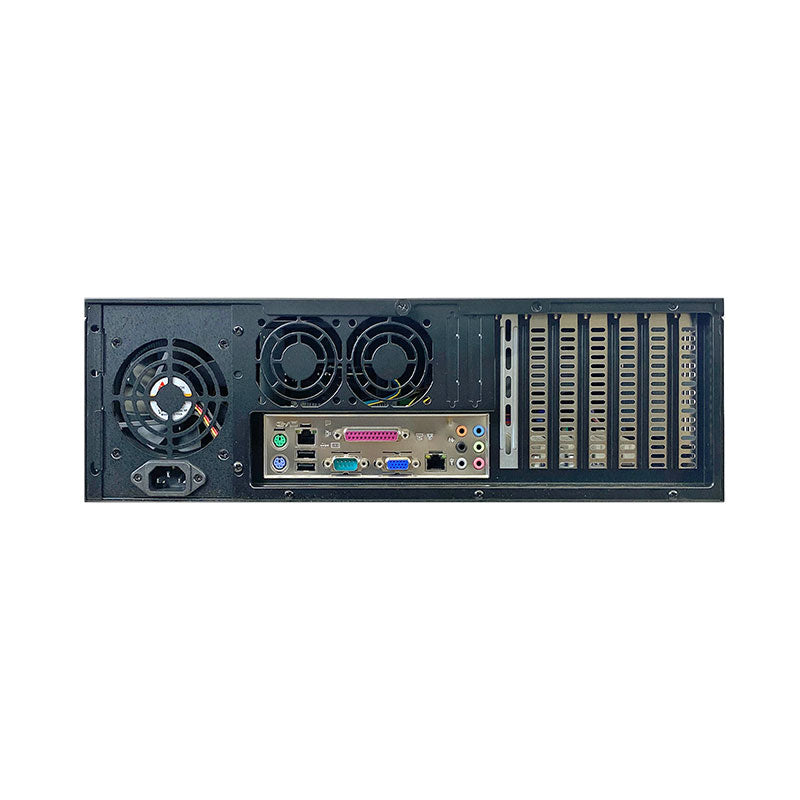

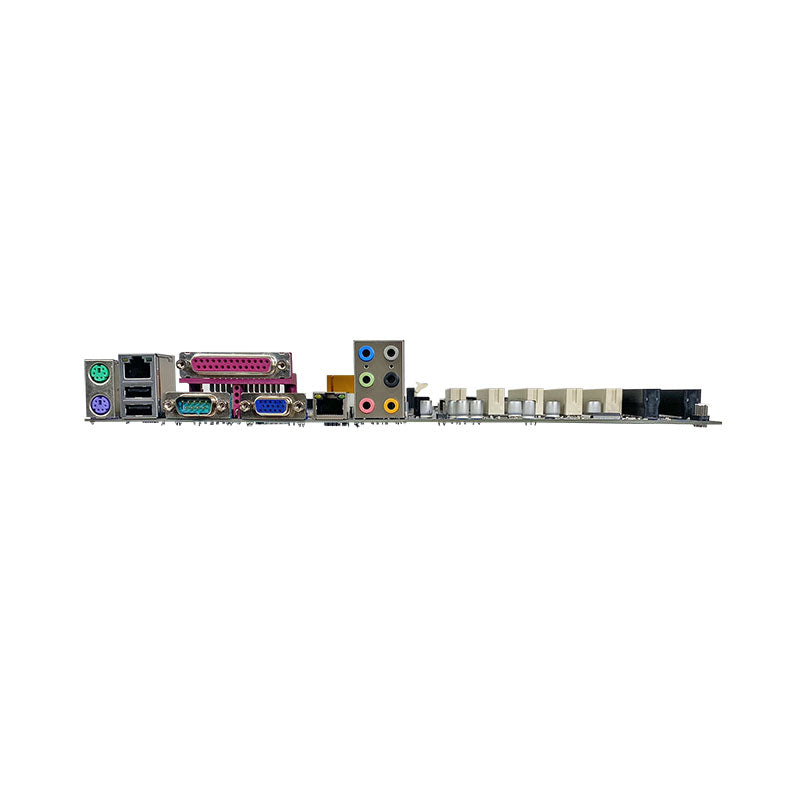

Rear I/O
VGA1x D-Sub 15-pin Port
LAN2x RJ45 LAN Ports
USB2x USB Ports
Keyboard / MousePS/2 Keyboard and Mouse Ports
Serial Port1x Fast UART 16550 Serial Port
Parallel Port1x Parallel Port
AudioICH4 Integrated Audio with AC97 Codec

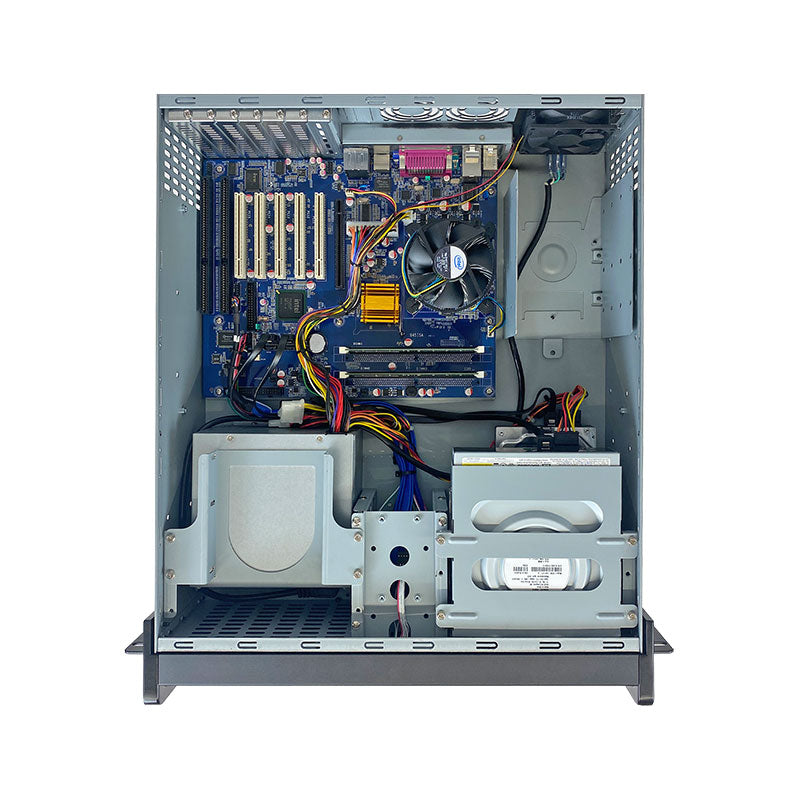

3U Rackmount Chassis
Form Factor3U Rackmount Server
Dimensions Height: 5.25" (133 mm)
Width: 17.0" (432 mm)
Depth: 20.8" (528 mm)
Approx. Weight40 lbs
Drive Bays
Internal5x 3.5" bays
External2x 5.25" bays
1x 3.5" bay
Front Panel
ButtonsPower On/Off
Power Reset
LEDsPower Status
Hard Drive Activity
LAN Activity LED
USB2x USB 2.0 Ports
AudioN/A
Expansion Slots
7x Full-Height ISA/PCI Expansion Slots
System Cooling
Fans 1x 80mm Front Fan
1x 60mm Rear Fan
