NX-8533
$570.00
Skip to product information
NX-8533
$570.00
- Intel® Core i5-3427U
- 4GB DDR3 Memory
- 4x USB 3.0 & 4x USB 2.0 Ports
- Compact Aluminum Case
- Fanless Embedded Box PC
- Windows XP, 7, 8.1, 10
SKU:
NX-8533
| Product – Model NX-8533 | |
| Chipset | Intel Skylake ULT SBC |
|---|---|
| CPU Series | Intel Core i5-3427U |
| Memory | 4GB DDR3 |
| Memory Type | DDR3 |
| On-Board Devices | |
| Network Controllers | 2x Intel Ethernet WGI211-AT PCIe GbE |
| Graphics | Intel HD Graphics 510/520 |
| BIOS Type | AMI 64Mbit Flash ROM |
| Chassis | |
| Form Factor | Small Form Factor Fanless Embedded PC |
| Dimensions |
Height: 2.95" (75 mm) Width: 9.13" (232 mm) Depth: 6.3" (160 mm) |
| Approx. Weight | ~4 lbs |
| Drive Bays | |
| Internal | 1x m.2 slot 1x mSATA |
| Front I/O Ports | |
| Buttons | Power On/Off Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 4x USB 2.0 Ports |

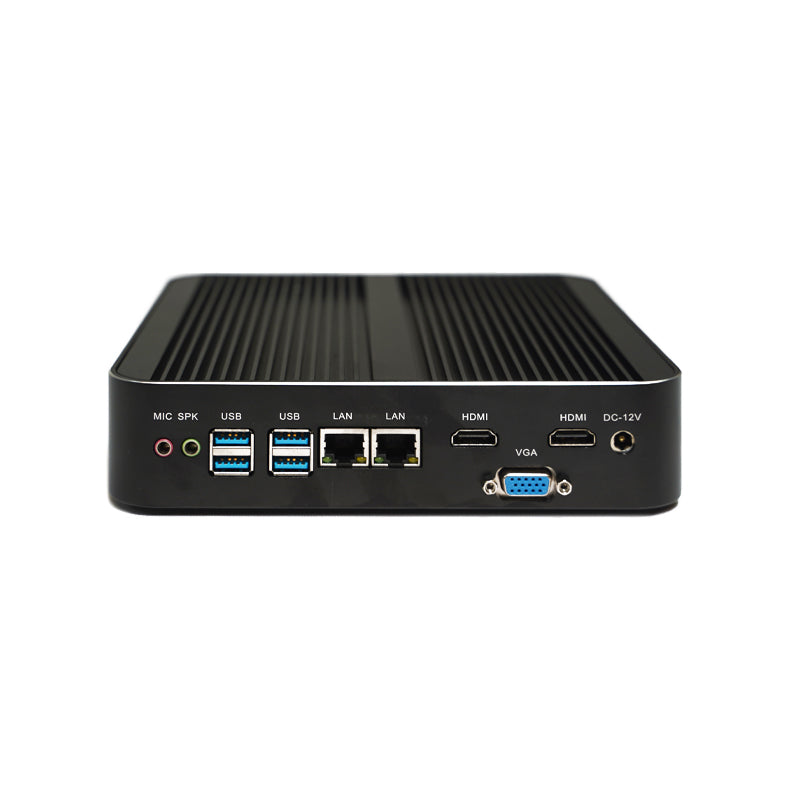

| Rear I/O Ports | |
| LAN | 2x RJ-45 LAN Ports |
| USB | 4x USB 3.0 Ports |
| COM | None |
| VGA | 1x VGA Port |
| HDMI | 2x HDMI Ports |
| Audio | 1x Line-out 1x Mic-in |
| Expansion | |
| PCIe | 1x Mini-PCIe (Supports WiFi and Bluetooth) |
| Power Supply | |
| DC-In | 1x 12V 3A Output Adapter |
