NX-704
$950.00
Skip to product information
NX-704
$950.00
- Intel® Core i5-3317U Processor
- 4GB DDR3 Memory
- 1x PCIe (x4) Slot
- 3x PCI 32-Bit Slots
- 4x Front & 2x Rear USB 2.0 Ports
- Windows XP, 7, 8.1, 10 & Linux
SKU:
NX-704
| High Performance SFF PC – Model NX-704 | |
| Chipset | Intel Express Chipset |
|---|---|
| CPU Series | Intel Core i5-3317U (Dual-Core / 4 Threads, 1.70 GHz, up to 2.60 GHz, 3 MB Cache, 17 W) |
| Memory | |
| Capacity | 4 GB DDR3 |
| Type | DDR3 1333 MHz |
| DIMM Sizes | 4 GB |
| Storage | |
| Slots | 1× mSATA Slot, 1× 2.5” SATA (7P+15P) |
| On-Board Devices | |
| Network Controllers | 2× Intel 82583V Gigabit LAN (10/100/1000M) |
| Graphics | Intel HD Graphics 4000 |
| System BIOS | |
| BIOS Type | AMI 64Mbit SMT Flash ROM |
| Chassis | |
| Form Factor | Small Form Factor, Fanless Embedded PC |
| Material | Aluminum Alloy Housing, Grey/Silver |
| Dimensions |
PC: 215 × 185 × 156 mm (8.5" × 7.3" × 6.1") Bracket: 215 × 193.2 × 192 mm (8.5" × 7.6" × 7.5") Packing: 315 × 280 × 260 mm |
| Approx. Weight | Net 9 lbs (≈4.1 kg), Gross 12 lbs (≈5.5 kg) |

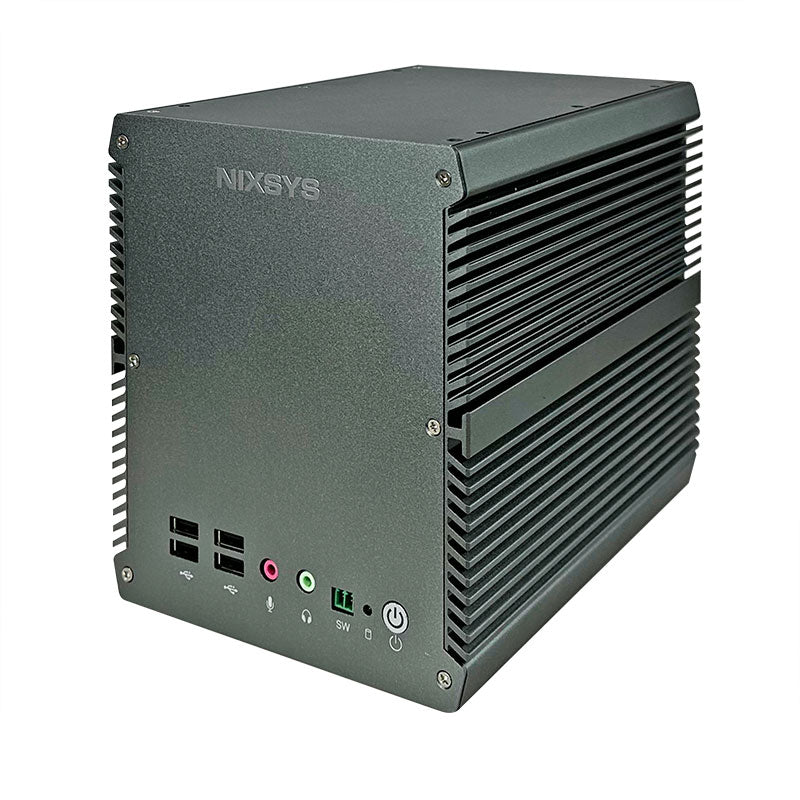

| Front Panel | |
| Buttons | Power On/Off |
| LEDs | Power Status, HDD Activity |
| USB | 4× USB 2.0 Ports |
| Audio | 1× Headphone (Line-Out), 1× Microphone Jack |
| Other | 2-Pin Remote Switch Port |

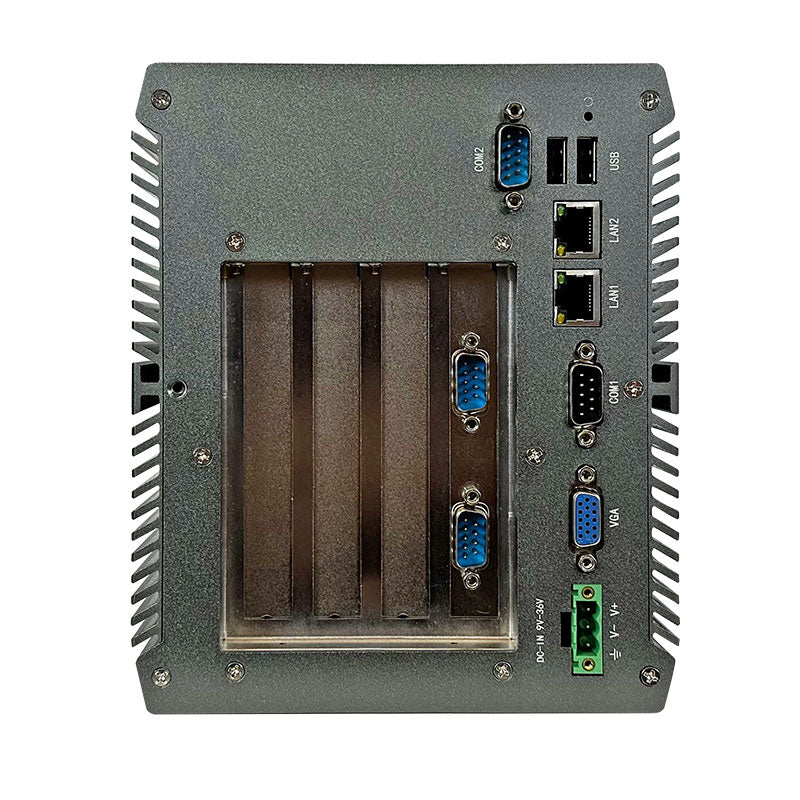

| Rear I/O Ports | |
| VGA | 1× VGA Port |
| COM | 2× COM Ports (COM1 configurable RS-232/422/485) |
| LAN | 2× RJ-45 LAN Ports |
| USB | 2× USB 2.0 Ports |
| Audio | 1× Line-Out Jack |
| Reset | 1× Reset Button |
| DC Input | 1× 3-Pin PX Port (DC-In 9–36 V) |
| Expansion Slots | |
| PCI-Express | 1× PCIe x4 Open Slot |
| PCI | 3× PCI 32-bit Open Slots |
| Mini PCIe | 1× Mini PCIe Slot |
| Power Supply | |
| DC-In | DC 9 V–36 V Power Input (Fanless Adapter) |
| Operating System | |
| Supported OS | Windows 7 / 8 / 10, Linux |
| Environment | |
| Operating Temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
| Humidity | 10% – 95% @ 40 °C, Non-condensing |
| Certifications | CE, FCC, RoHS |
