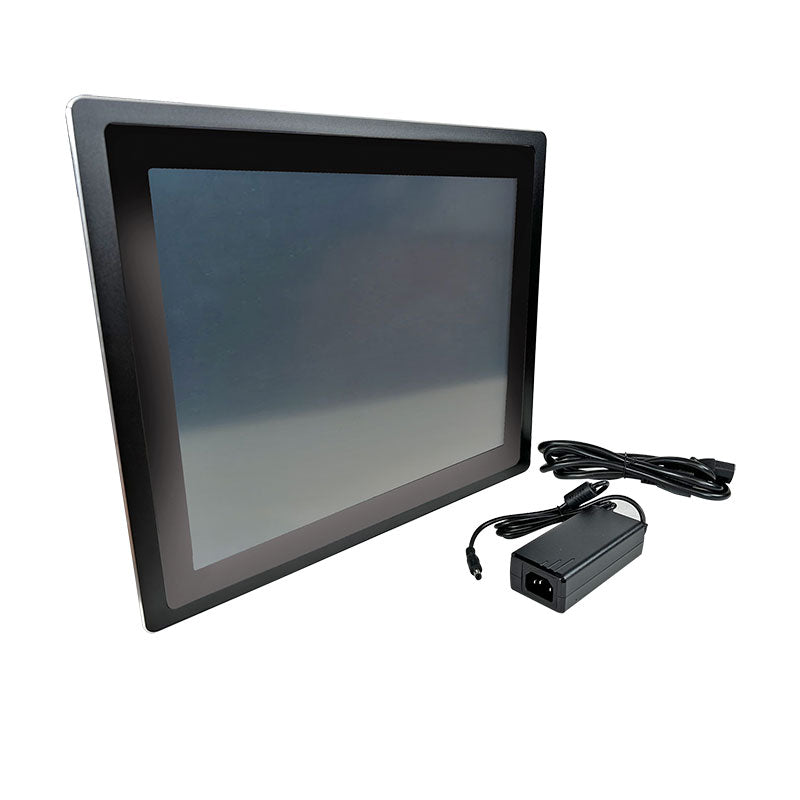

NX-6071
$920.00
Skip to product information
NX-6071
$920.00
- Intel® Core i5-3317U Processor
- 4GB DDR3 Memory
- AMI 64Mbit Flash ROM BIOS
- 4x USB 2.0 Ports
- 17-Inch Embedded Panel PC
- Windows XP, 7, 8, 10
SKU:
NX-6071
| Embedded Panel PC – Model NX-6071 | |
| Chipset | Intel Ivybridge |
|---|---|
| CPU Series | Intel Core i3-3217U |
| Memory | |
| Capacity | 4GB DDR3 |
| Type | DDR3L |
| Supported Sizes | 4GB, 8GB |
| On-Board Devices | |
| Network Controller | 1x Intel Ethernet WGI211-AT PCIe GbE |
| Graphics | Intel HD Graphics 510/520 |
| System BIOS | |
| BIOS Type | AMI 64Mbit Flash ROM |
| Chassis | |
| Form Factor | Embeddable Panel PC |
| Dimensions |
Height: 11.7" (297 mm) Width: 14.4" (366 mm) Depth: 2.5" (64 mm) |
| LCD Display | 17" 1024×768 Touch LCD Display |
| Approx. Weight | ~7 lbs |
| Drive Bays | |
| Internal | 1x mSATA Slot |
| Front I/O Ports | |
| Buttons | Power On/Off |
| LEDs | Power Status |
| Rear I/O Ports | |
| LAN | 1x RJ-45 LAN Port |
| USB |
2x USB 3.0 Ports 2x USB 2.0 Ports |
| COM | 2x COM (RS-232/422/485) Ports |
| VGA | 1x VGA Port |
| HDMI | 1x HDMI Port |
| PCIe (Internal) | 1x Mini-PCIe (Supports WiFi and Bluetooth) |
| Power Supply | |
| DC-In | 1x DC 9V~24V Output Adapter |
