NX-6011
$1,020.00
Skip to product information
NX-6011
$1,020.00
- Intel® Core i5-6200U Processor
- 4GB DDR3 Memory
- Intel® Skylake ULT SoC
- 4x USB 3.0 Ports
- Fanless 8-Inch Embedded Panel PC
- Windows 7, 8, 10
SKU:
NX-6011
| Fanless Embedded Panel PC – Model NX-6011 | |
| Chipset | Intel Skylake ULT SoC |
|---|---|
| CPU Series | Intel Core i5-6200U |
| Memory | |
| Capacity | 4GB DDR4 |
| Type | DDR4 2133MHz |
| Supported Sizes | 4GB, 8GB |
| On-Board Devices | |
| Network Controllers | 2x Intel Ethernet WGI211-AT PCIe GbE |
| Graphics | Intel HD Graphics 510/520 |
| System BIOS | |
| BIOS Type | AMI 64Mbit Flash ROM |
| Chassis | |
| Form Factor | Small Form Factor Fanless Embedded PC |
| Panel Lip Dimensions |
Height: 6.9375" (176.21 mm) Width: 8.5625" (217.48 mm) Depth: 0.3125" (8 mm) |
| Cutout Dimensions |
Height: 6.5" (165.10 mm) Width: 8.125" (204.78 mm) Depth: 1.375" (34.93 mm) |
| Total Depth | 1.625" (41.28 mm) |
| Approx. Weight | ~4 lbs |
| Drive Bays | |
| Internal | 1x mSATA Slot 1x 2.5" Bay |
| Front I/O Ports | |
| Buttons | Power On/Off |
| LEDs | Power Status |

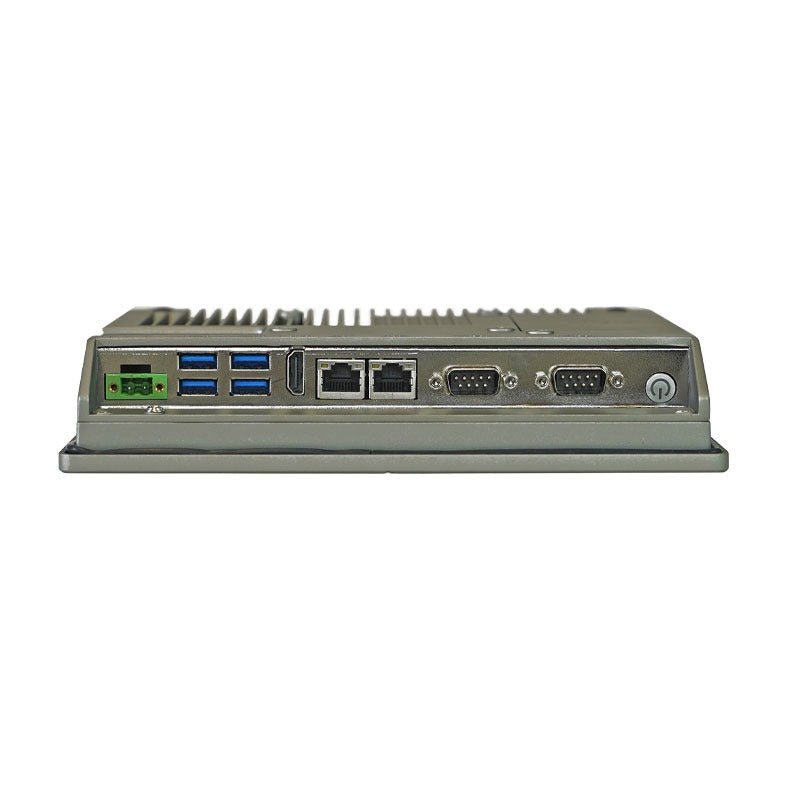

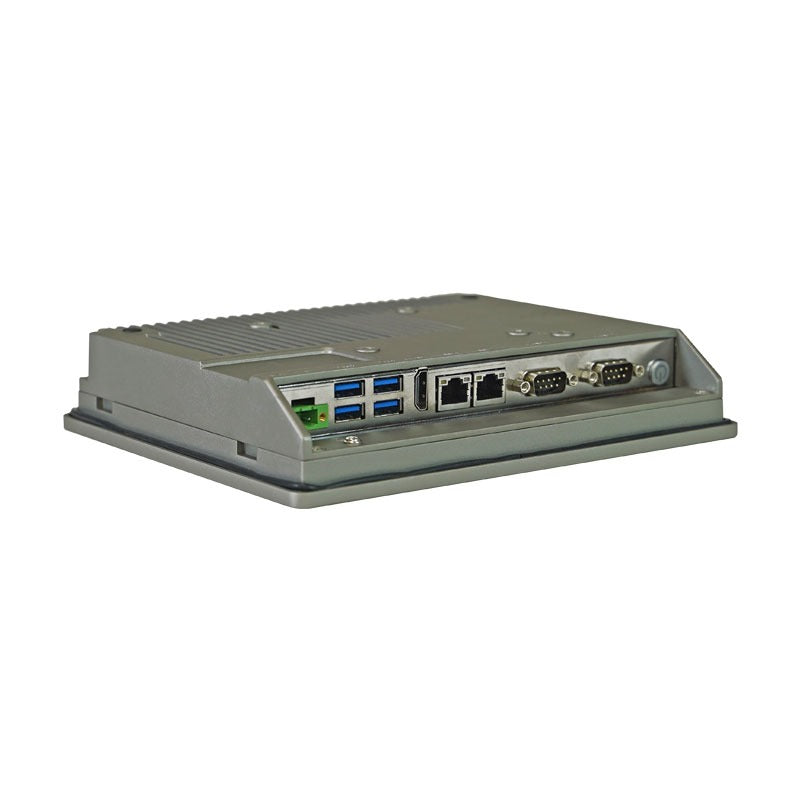

| Rear I/O Ports | |
| LAN | 2x RJ-45 LAN Ports |
| USB | 4x USB 3.0 Ports |
| COM | 2x COM (RS-232/422/485) Ports |
| HDMI | 1x HDMI Port |
| PCIe | 1x Mini-PCIe (Supports WiFi and Bluetooth) |
| Power Supply | |

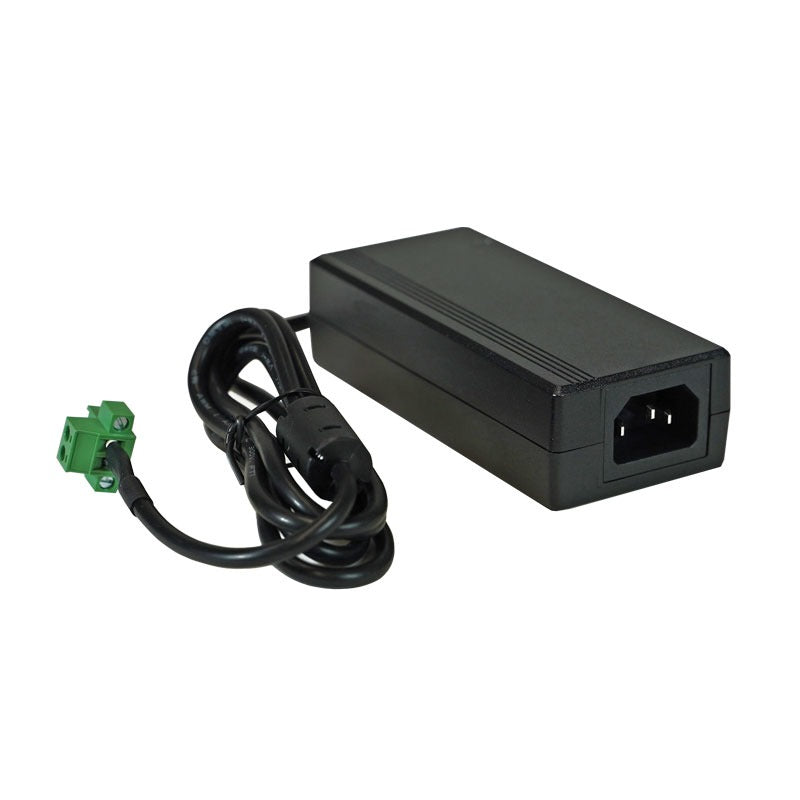

| DC-In | 1x DC 9V~24V Output Adapter |
