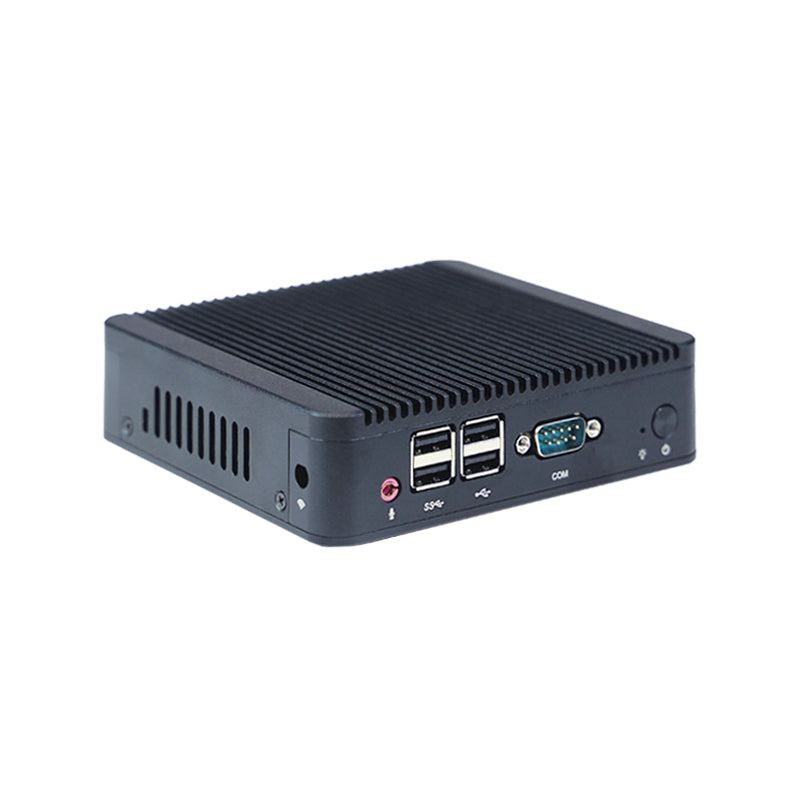

NX-3
$445.00
Skip to product information
NX-3
$445.00
- Intel® i5-3427U Processor
- Up to 8GB DDR3L
- 2x RJ45 Ethernet
- 1x Serial Port
- Supports WiFi (optional)
- SFF Mini Box
- Windows XP, 7, 8.1, 10
SKU:
NX-3
| Product – Model NX-3 | |
| Chipset | Adopt Intel Express Chipset |
|---|---|
| CPU Series | Intel® Core i5-3427U |
| Memory Capacity | Up to 8GB (Max) |
| Memory Type | DDR3L |
| DIMM Sizes | 4GB, 8GB |
| On-Board Devices | |
| Network Controllers | 2x Gigabit Ethernet Controller |
| Graphics | Integrated Intel HD Graphics |
| BIOS Type | AMI UEFI BIOS |
| Chassis | |
| Form Factor | Small Form Factor Embedded PC |
| Dimensions |
Height: 1.375" (35 mm) Width: 5.375" (137 mm) Depth: 5.0" (127 mm) |
| Approx. Weight | ~5 lbs |

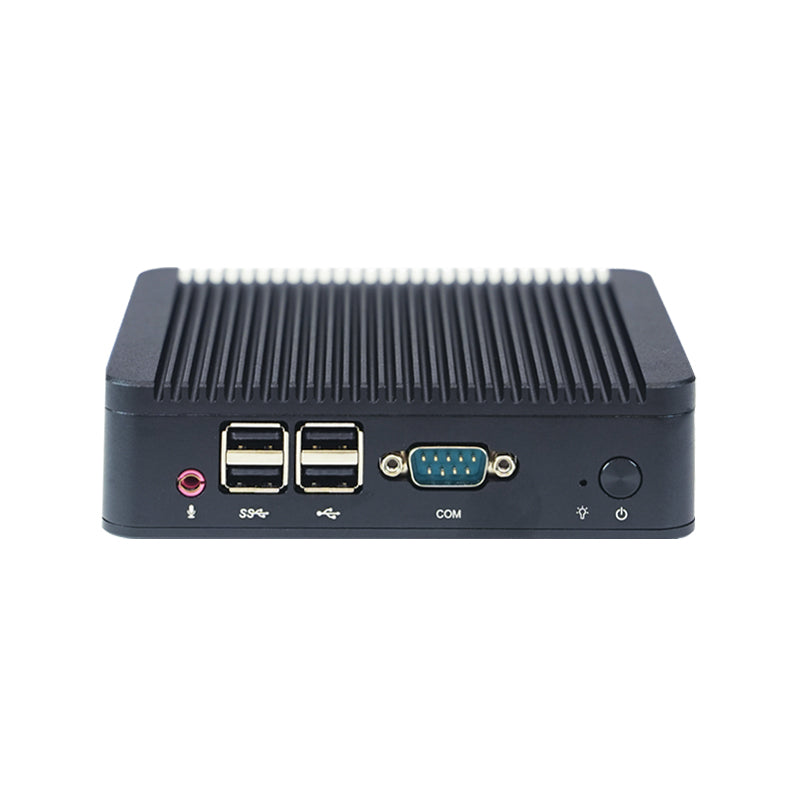

| Front Panel | |
| Buttons | Power On/Off |
| LEDs | Power Status Hard Drive Activity |
| USB | 4x USB 2.0 Ports |
| Serial Ports | 1x RS232 COM Port |

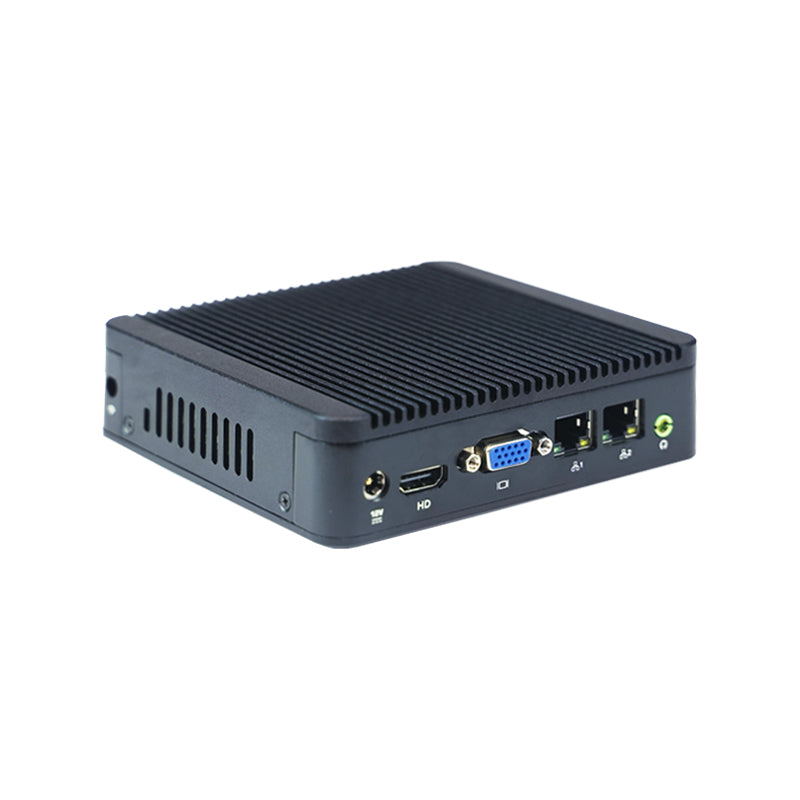

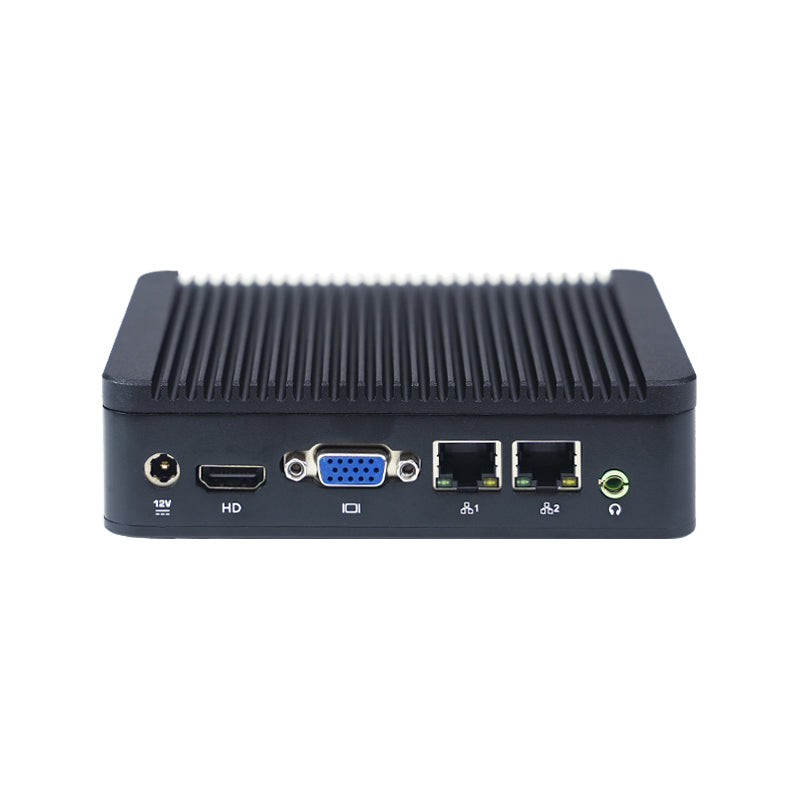

| Rear I/O Ports | |
| HDMI | 1x HDMI Port |
| VGA | 1x D-Sub 15-pin Port |
| LAN | 2x RJ-45 LAN Ports |
| Mini PCIe | 1x Mini PCIe WiFi (Optional) |
| Audio | 1x Headphone Jack 1x Microphone Jack |
| Keyboard / Mouse | N/A |
| Power Supply | |
| DC-In | 12V 5A Input |
