G3290
$1,000.00
Skip to product information
G3290
$1,000.00
- Intel® Core™ i5-12450H CPU
- 2x DDR4 2666MHz, up to 64GB
- 2x Intel I210AT Gigabit LAN
- 6x RS232/485 (RS422 / CAN capable), 6x USB3.0, 2x USB2.0
- HDMI + VGA (Dual Display)
- DC 9-36V Wide Voltage, -10°C to 50°C
- Windows 10, 11 & Linux
SKU:
G3290
| Industrial Computer – Model G3290 | |
| Material / Structure | Aluminium Alloy + Sheet Metal |
|---|---|
| Color | Black + Silver |
| Dimensions | 205 × 192.5 × 164.1 mm |
| Weight | 4.2 kg |
| Installation | Desktop / Embedded |
| Motherboard | |
| CPU | Intel® Core™ i5-12450H, up to 4.40GHz, 8-Core / 12-Thread |
| Chipset | Intel Z390 |
| Memory | 2x DDR4 2666MHz, Supports up to 64GB |

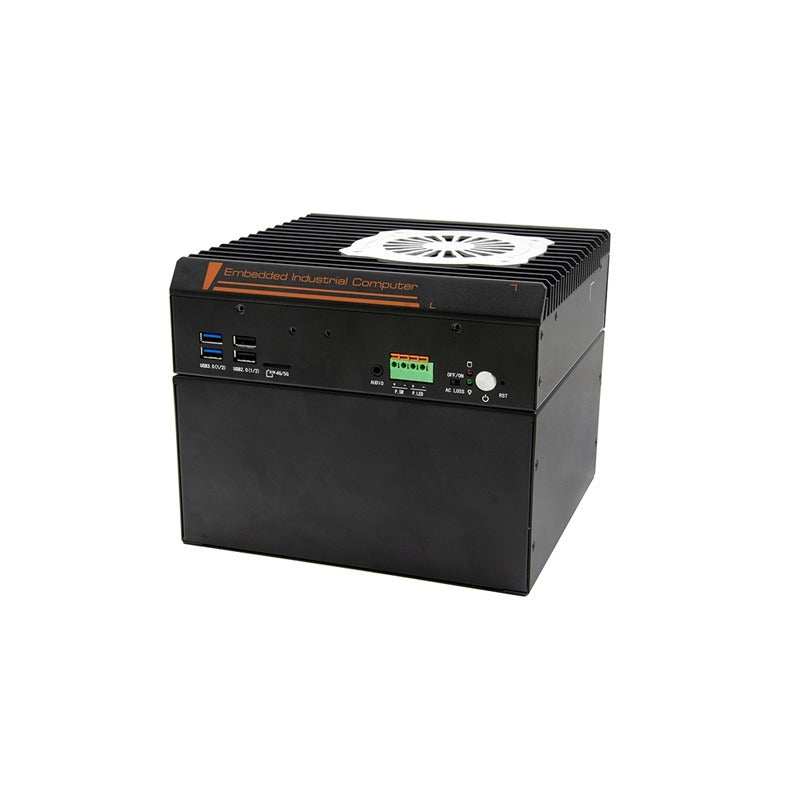

| Front Panel | |
| Switch | Power Button, One-Click Restore, ACLOSS Boot DIP Switch |
| LED | Power Indicator, Hard Drive Indicator |
| USB | 2x USB3.0, 2x USB2.0, 1x Internal USB2.0 |
| Remote Switch | Power Switch & Power Indicator via Phoenix Connector |
| Audio | Line-Out / Mic Combo |
| SIM Slot | SIM Card Slot |

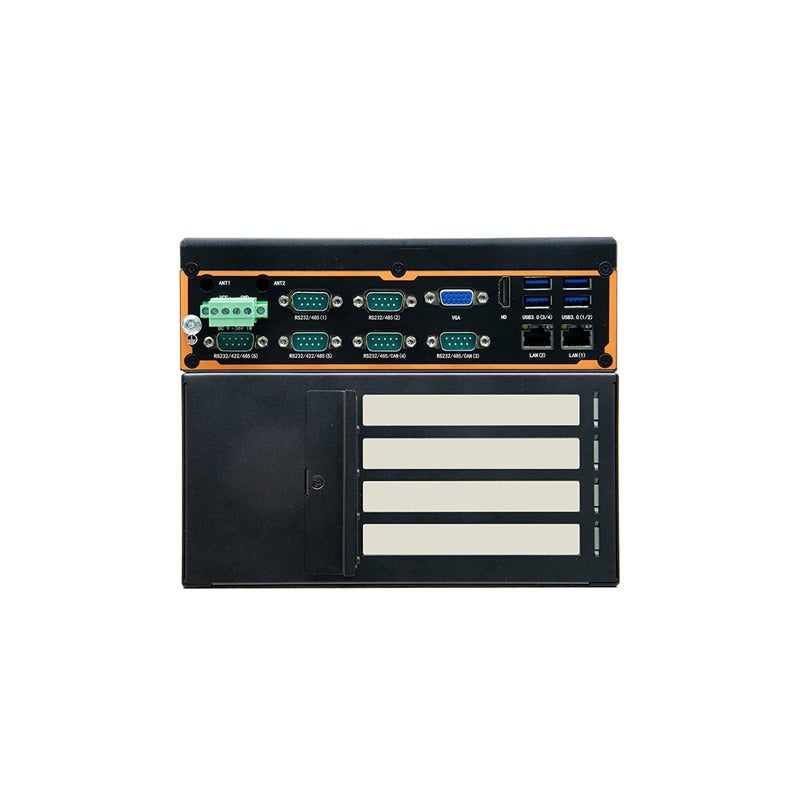

| Rear Panel | |
| Display | 1x VGA, 1x HDMI 1.4 (Dual Display) |
| USB | 4x USB3.0 |
| Serial Ports | 6x RS232/485 (COM5-6 RS422, COM3-4 CAN capable) |
| LAN | 2x Intel I210AT Gigabit LAN |
| Power Interface | 4-Pin Phoenix Terminal, DC Input |
| Storage | |
| Drive Bay | 1x 2.5" SATA HDD Bay |
| M.2 | 1x M.2 Key-M 2280 NVMe PCIe SSD |
| mSATA | Optional (CPU dependent) |
| Expansion | |
| PCIe | 1x PCIe x16 (x8 signal) |
| PCI | 3x PCI Slots |
| Mini PCIe | WiFi / 4G Support |
| M.2 WiFi | Key-E 2230 WiFi Module |
| M.2 5G | Key-B 3042 / 3052 5G Module |
| Power | |
| Input Voltage | DC 9-36V Wide Voltage |
| Power Requirement | AC-DC 60W or Higher |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5-95% RH, Non-Condensing |
| Vibration | 0.5g rms / 5-500Hz / Random |
