G3280
$1,020.00
Skip to product information
G3280
$1,020.00
- Intel® Core™ i5-12450H CPU
- 2x DDR4 SO-DIMM 2666MHz, up to 64GB
- 6x Intel I210AT Gigabit LAN (4x PoE)
- 4x RS232, 4x USB3.0, 2x USB2.0
- HDMI + VGA (Dual Display)
- DC 9-36V Wide Voltage, -10°C to 50°C
- Windows 10, 11& Linux
SKU:
G3280

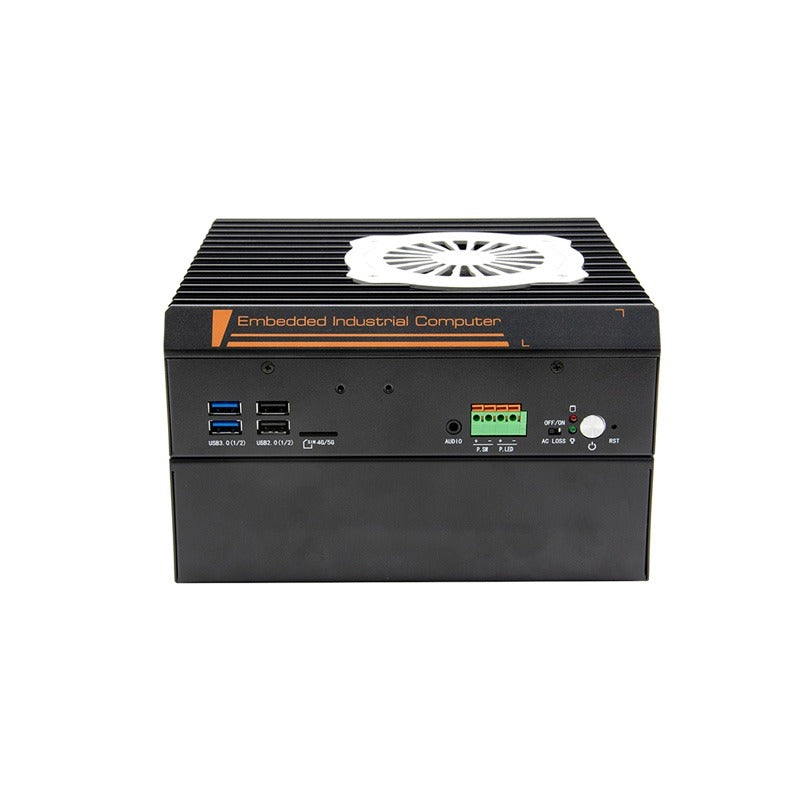

| Embedded Computer – Model G3280 | |
| Material / Structure | Aluminium Alloy + Sheet Metal + Fan Cooling |
|---|---|
| Color | Black + Silver |
| Dimensions | 205 × 192.5 × 121.6 mm |
| Weight | 3.45 kg |
| Installation | Desktop / Embedded |
| Motherboard | |
| CPU | Intel® Core™ i5-12450H up to 4.40GHz Base, 8-Core / 12-Thread |
| Chipset | Intel HM370 |
| Memory | 2x DDR4 SO-DIMM 2666MHz, Supports up to 64GB |
| Front Panel | |
| Switch | Power Button, One-Click Restore, ACLOSS Power Boot DIP Switch |
| LED | Power Indicator, Hard Drive Indicator |
| USB | 2x USB2.0, 2x USB3.0 |
| Audio | Line-out / Mic Combo |
| Remote Switch | Power Indicator Signal / Power Switch Signal via 4-Pin Phoenix Connector |
| SIM Slot | SIM Card Slot |

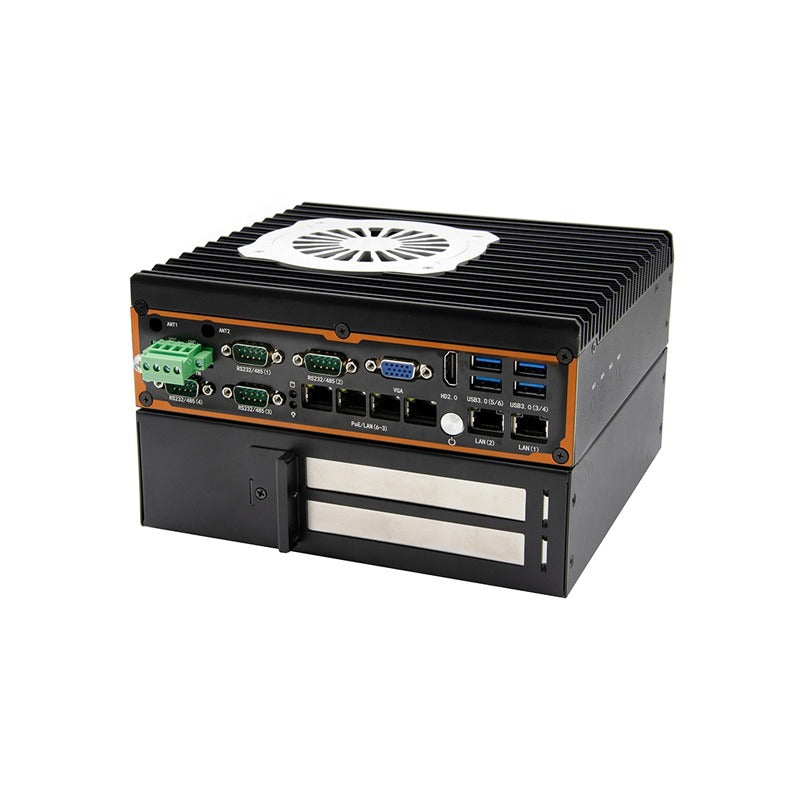

| Rear Panel | |
| Display | 1x VGA, 1x HDMI 1.4 (Dual Display) |
| USB | 4x USB3.0 |
| Serial Ports | 4x RS232 DB9 (COM3-4 support RS485 / CAN) |
| LAN | 6x Intel I210AT Gigabit LAN (4x PoE 15W) |
| DIP Switch | 2 Sets of 6-Position DIP Switches for Serial Configuration |
| Power Interface | 4-Pin Phoenix Terminal, DC Input |
| Storage | |
| mSATA | 1x mSATA (CPU dependent) |
| M.2 SSD | 1x M.2 Key-M 2280 NVMe PCIe x4 / SATA |
| Expansion | |
| PCIe | 1x PCIe x16 (x8 signal), 1x PCIe x8 (x1 signal) |
| Mini PCIe | Supports WiFi + Bluetooth / 4G |
| M.2 5G | Key-B 3042 / 3052 5G Module Support |
| Power | |
| Input Voltage | DC 9-36V Wide Voltage |
| Power Requirement | AC to DC 90W or Higher |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5-95% RH, Non-Condensing |
| Vibration | 0.5g rms / 5-500Hz / Random |
