G3250
$925.00
Skip to product information
G3250
$925.00
- Intel® Core™ i5-12450H CPU
- 2x DDR4 SO-DIMM 2666MHz, up to 64GB
- 2x Intel I210AT Gigabit LAN
- 6x RS232/485 (RS422 / CAN capable), 6x USB3.0, 2x USB2.0
- HDMI + VGA (Dual Display)
- DC 9-36V Wide Voltage, -10°C to 50°C
- Windows 10, 11 & Linux
SKU:
G3250

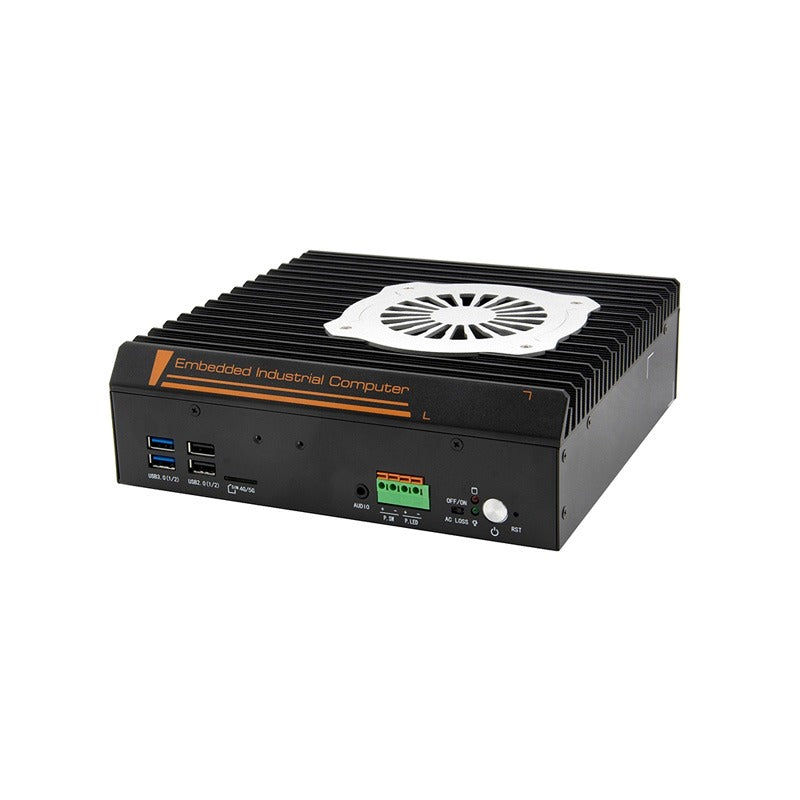

| Embedded Computer – Model G3250 | |
| Material / Construction | Aluminium + Sheet Metal |
|---|---|
| Color | Black + Silver |
| Dimensions | 205 × 192 × 61.2 mm |
| Weight | 2.2 kg |

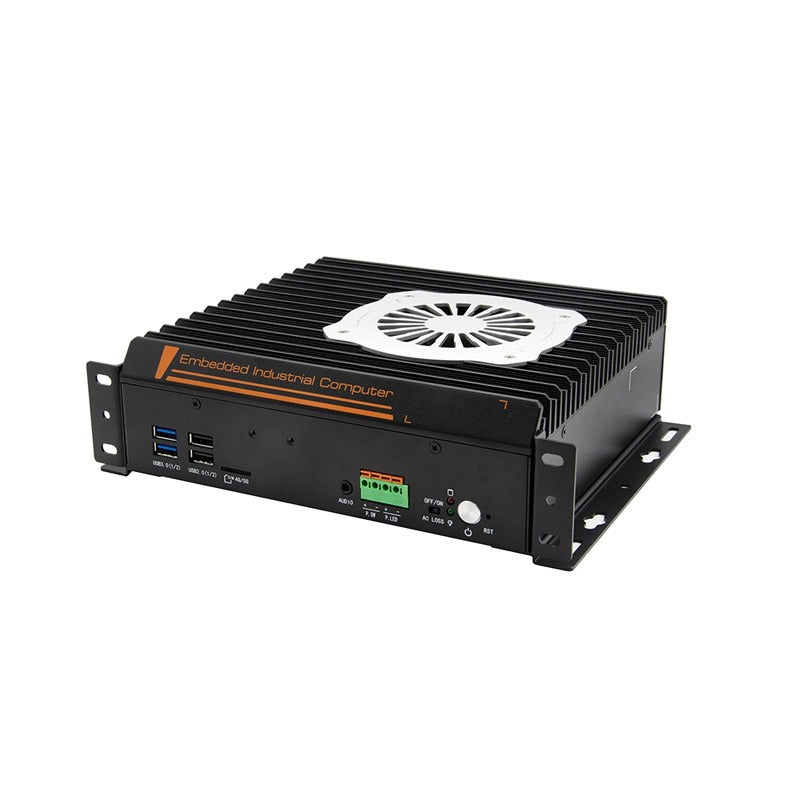

| Installation | Desktop / Embedded / DIN Rail (35mm) |
| Motherboard | |
| CPU | Intel® Core™ i5-12450H up to 4.40GHz Base, 8-Core / 12-Thread |
| Chipset | Intel HM370 |
| Memory | 2x DDR4 SO-DIMM 2666MHz, Supports up to 64GB |

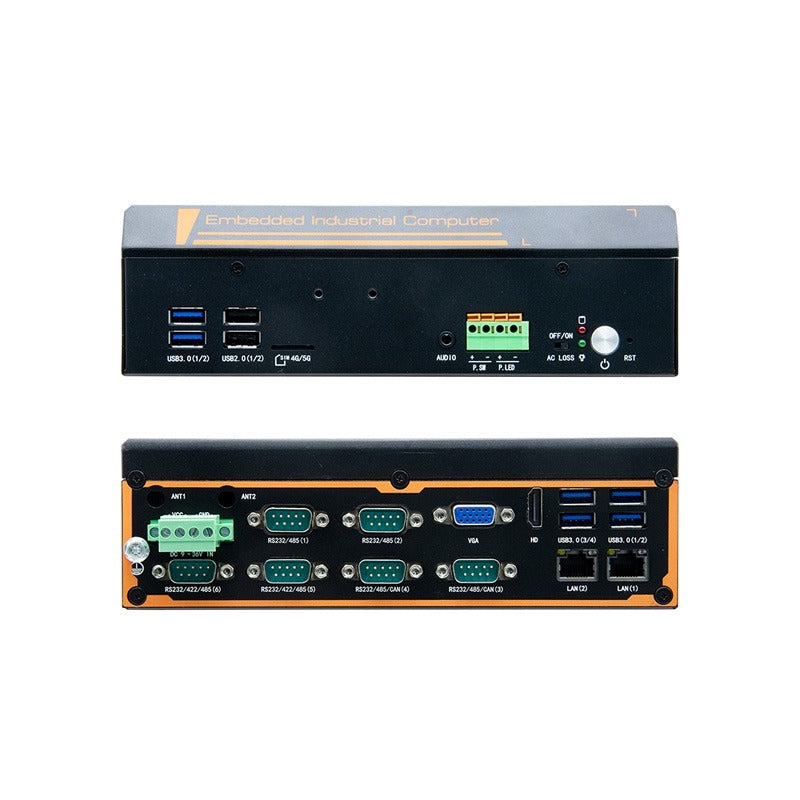

| Front Panel | |
| Switch | Boot Button, One-Key Restore, ACLOSS Power DIP Switch |
| LED | Power Indicator, Hard Drive Indicator |
| USB | 2x USB3.0, 2x USB2.0, 1x Internal USB2.0 |
| Phoenix Terminal | 4P (Power Indicator Signal / Power Switch Signal) |
| Audio | Line-out / Mic Combo |
| SIM Slot | Standard SIM Card Slot |

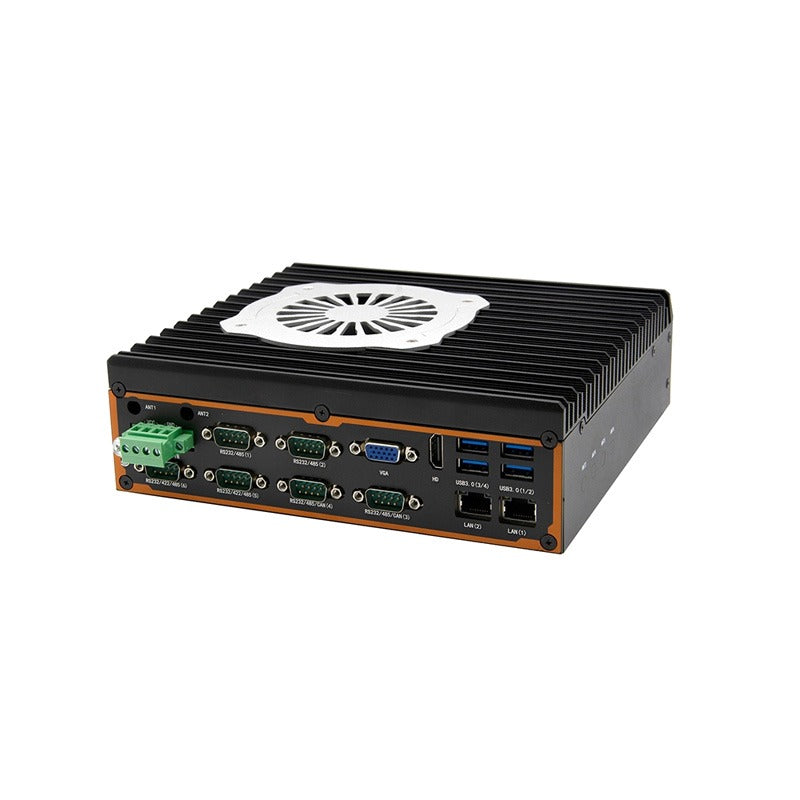

| Rear Panel | |
| Display | HDMI 1.4, VGA (Dual Display) |
| USB | 4x USB3.0 |
| Serial Ports | 6x RS232/485 DB9 (COM5-6 RS422, COM3-4 CAN capable) |
| LAN | 2x Intel I210AT Gigabit LAN |
| DIP Switch | 6 Sets of 6-Position DIP Switches for RS232/485 Switching |
| Power Interface | 4-Pin Phoenix Terminal (DC Input) |
| Storage | |
| 2.5" Drive Bay | 1x SATA 2.5" HDD Bay |
| M.2 | 1x M.2 Key-M 2280 NVMe PCIe x4 / SATA SSD |
| Expansion | |
| Mini PCIe | Supports WiFi + Bluetooth / 4G |
| M.2 WiFi | Key-E 2230 WiFi Module |
| M.2 5G | Key-B 3042 / 3052 5G Module |
| Operating System | |
| OS Support | Windows 10, Linux |
| Power | |
| Power Type | External Power Adapter |
| Input Voltage | DC 9-36V Wide Voltage |
| Power Output | AC to DC 90W or Higher |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5-95% RH, Non-Condensing |
| Operating Vibration | 0.5g rms / 5-500Hz / Random |
