G3062
$1,015.00
Skip to product information
G3062
$1,015.00
- Intel® Core™ i5-1135G7 CPU
- 2x DDR4 SO-DIMM up to 64GB
- 6x Intel I210AT Gigabit LAN (4x PoE)
- 2x RS232/485, 4x USB3.0, 2x USB2.0
- DP 1.4 + HDMI 2.0 + VGA (Triple Display)
- Fanless Design, DC 9-36V Wide Voltage
- Windows 10, 11 & Linux
SKU:
G3062

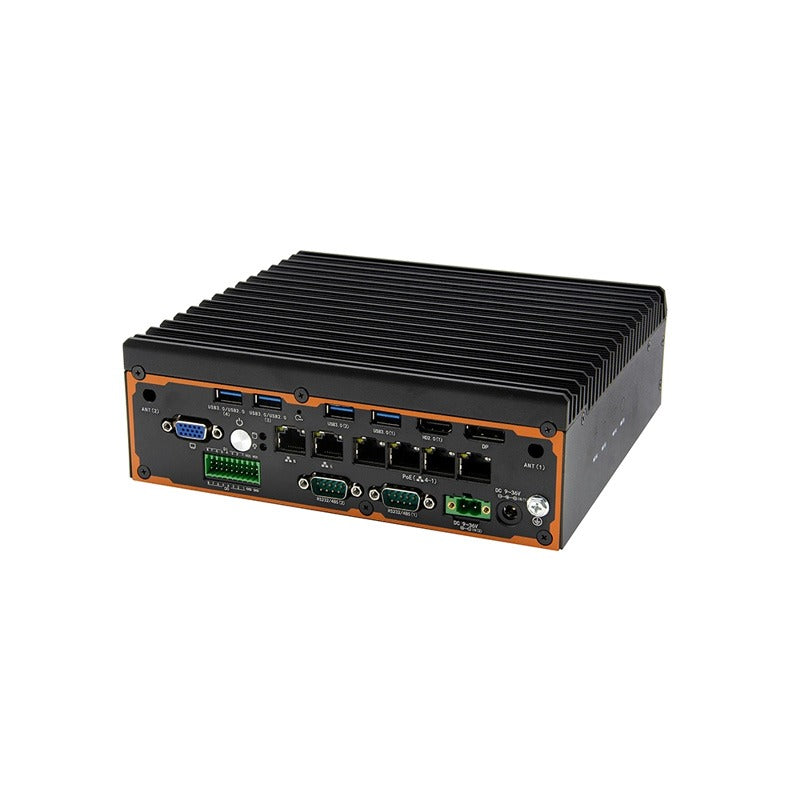

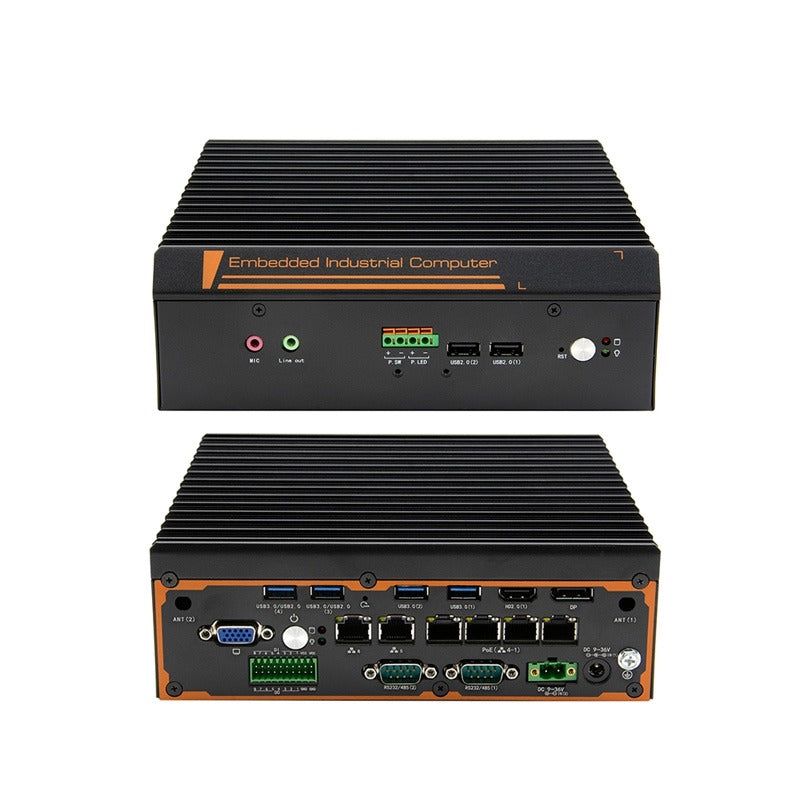

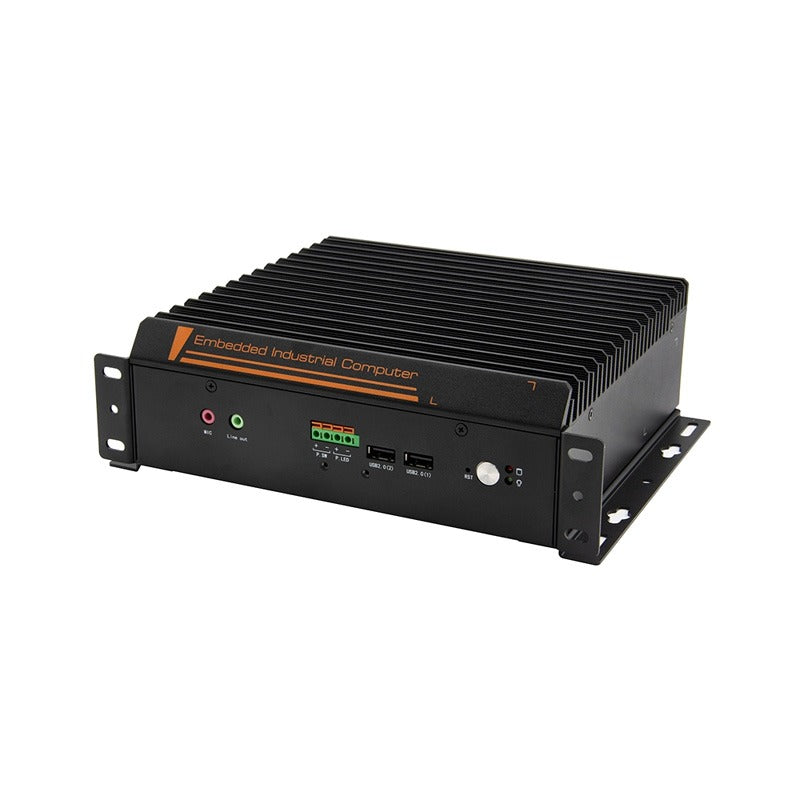

| Embedded Computer – Model G3062 | |
| Material / Structure | Aluminium + Sheet Metal |
|---|---|
| Color | Black |
| Dimensions | 205 × 192 × 68.4 mm |
| Weight | 2.2 kg |
| Installation | Desktop / Embedded / DIN Rail (35mm) |
| Motherboard | |
| CPU | Intel® Core™ i5-1135G7, 2.40GHz Base, Quad-Core / 8-Thread, 28W TDP |
| Graphics | Intel® Iris Xe Graphics |
| Memory | 2x DDR4 SO-DIMM 3200MHz, Supports up to 64GB |
| Front Panel | |
| Switch | Boot Button, Reboot Button |
| LED | Power Indicator, Hard Drive Indicator |
| USB | 2x USB2.0 |
| Audio | Line Out, Mic |
| Phoenix Terminal | 4P (Boot Signal / Power Indicator Signal) |
| Rear Panel | |
| Switch | Power Key, CMOS Reset Key |
| Display | DP1.4, HDMI2.0, VGA (Triple Display Support) |
| USB | 4x USB3.0 |
| Serial Ports | 2x RS232/485 DB9 |
| LAN | 6x Intel I210AT Gigabit LAN (4x PoE 15W) |
| DIO | 8 Input / 8 Output with 2.5KV Optical Isolation |
| DIP Switch | 2 Sets of 6-Position DIP Switches for RS232/485 Switching |
| Power Connector | DC Jack or 2-Pin Phoenix Terminal |
| Storage | |
| 2.5" Drive Bay | 1x SATA 2.5" Hard Drive Bay |
| mSATA | 1x mSATA |
| M.2 | 1x M.2 Key-M 2280 NVMe PCIe x4 SSD |
| Expansion | |
| 5G Module | M.2 Key-B 3042 / 3052 5G Module Support |
| Operating System | |
| OS Support | Windows 10, Linux |
| Power | |
| Power Type | External Power Adapter |
| Input Voltage | DC 9-36V Wide Voltage |
| Power Output | AC to DC 90W or Higher |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5-95% RH, Non-Condensing |
| Operating Vibration | 0.5g rms / 5-500Hz / Random |
