C2122
$675.00
Skip to product information
C2122
$675.00
- Intel® Core™ i5-8265U CPU
- Integrated 8GB LPDDR3 2133MHz
- 2x Gigabit LAN, Wake-on-LAN & PXE
- HDMI + DP, 4x USB 3.0, 4x USB 2.0
- Fanless Aluminum Design
- 12V DC, -10°C to 50°C
- Windows 10, 11 & Linux
SKU:
C2122

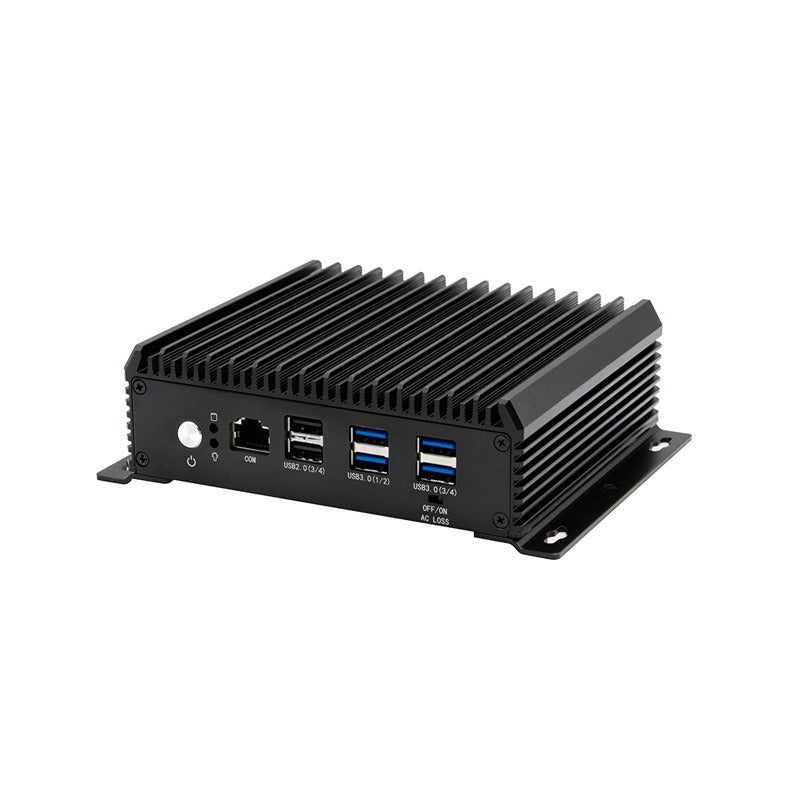

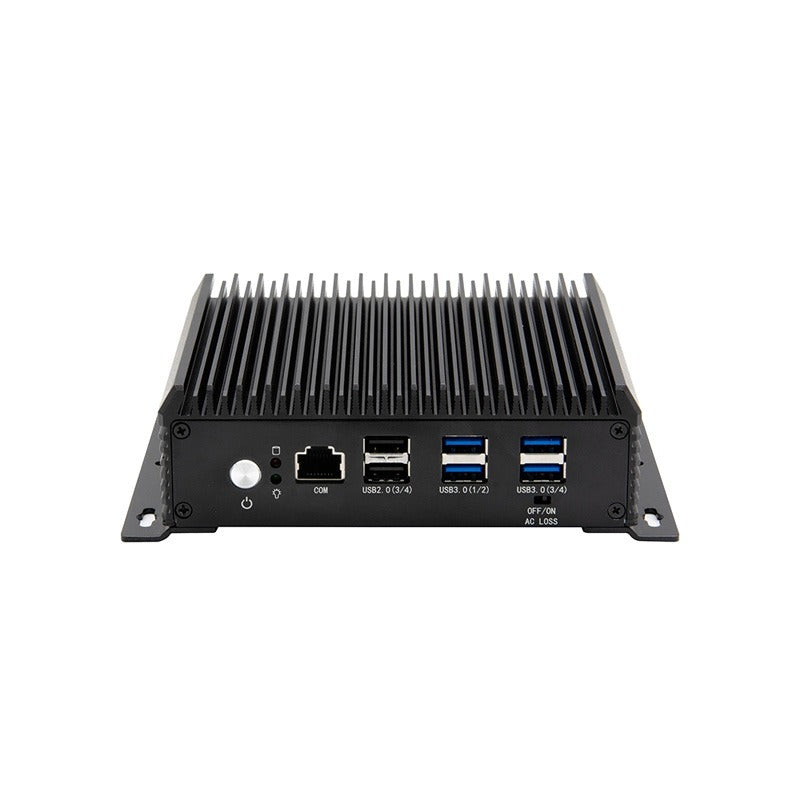

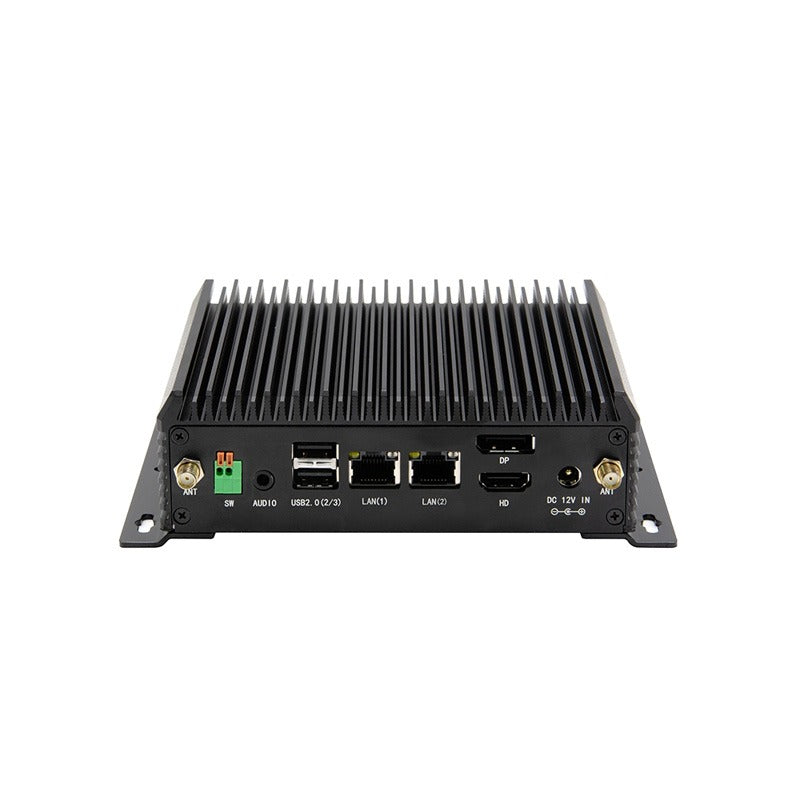

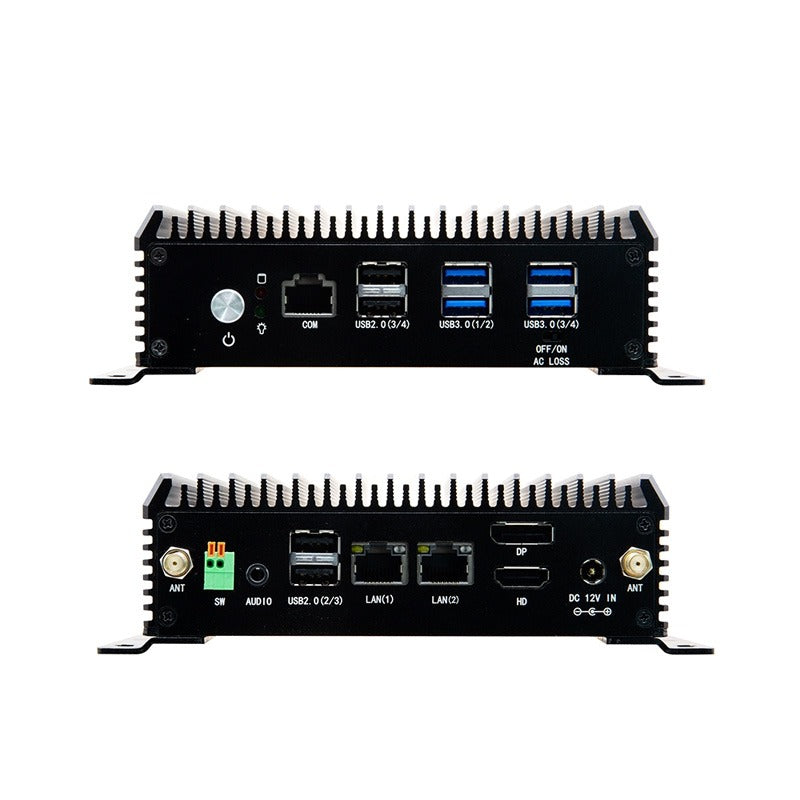

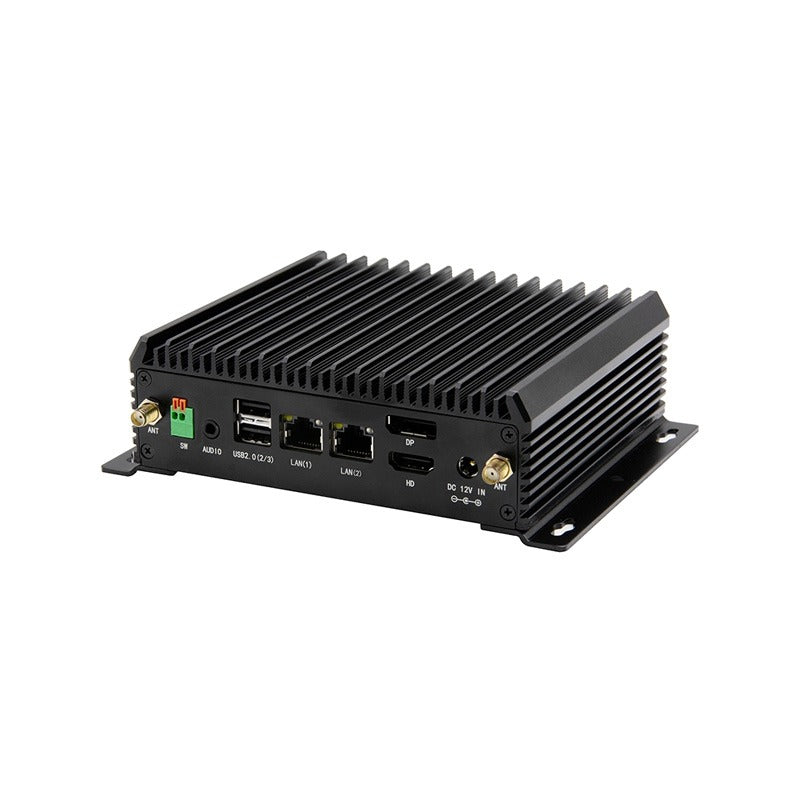

| Embedded Computer – Model C2122 | |
| CPU | Intel® Core™ i5-8265U Quad-Core / 8-Thread Processor Up to 3.90GHz Turbo TDP: 15W |
|---|---|
| Chipset | Integrated SoC (Whiskey Lake) |
| Memory | Integrated 8GB LPDDR3 2133MHz |
| Storage | |
| M.2 | 1x M.2 Key-M (2280) Supports NVMe PCIe SSD |
| Display | |
| Video Output |
1x HDMI 1x DisplayPort (4K Supported) |
| Networking | |
| Ethernet | 2x Gigabit LAN Supports Wake-on-LAN & PXE |
| I/O Interfaces | |
| USB | 4x USB 3.0 4x USB 2.0 |
| Serial Ports | 2x RS232 |
| Audio | Line-out / Mic |
| Power Input | DC 12V |
| Mechanical | |
| Construction | All Aluminum Alloy Fanless Cooling Design |

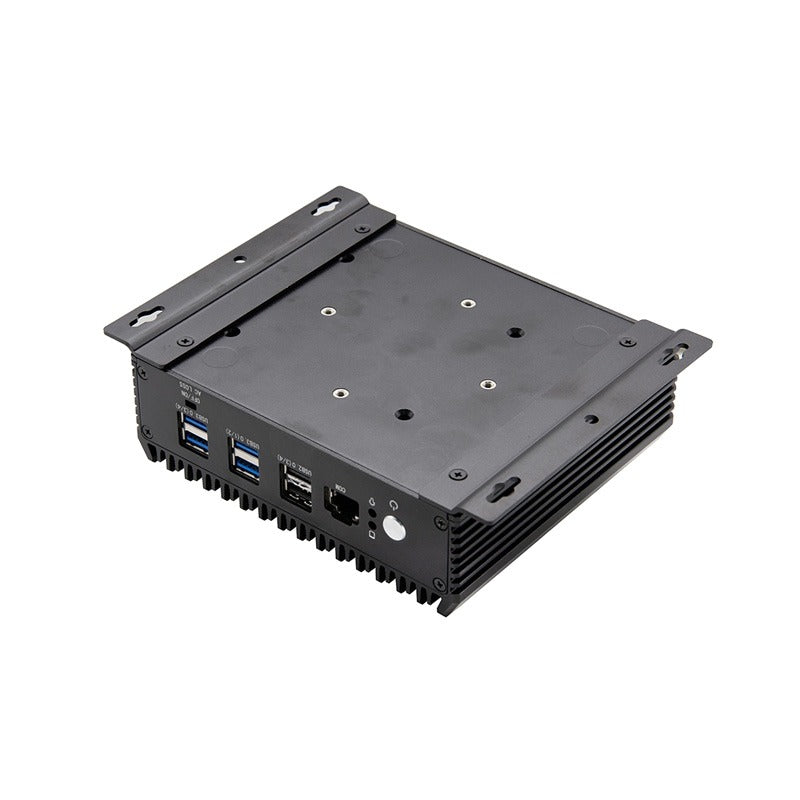

| Mounting Options | Desktop / Wall Mount |
| Power | |
| Power Type | External Power Adapter |
| Input Voltage | DC 12V |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% – 95% (Non-condensing) |
| System Support | |
| Operating Systems | Windows 10, 11 & Linux |
| Watchdog Timer | Hardware Reset Function (0–255 seconds) |
