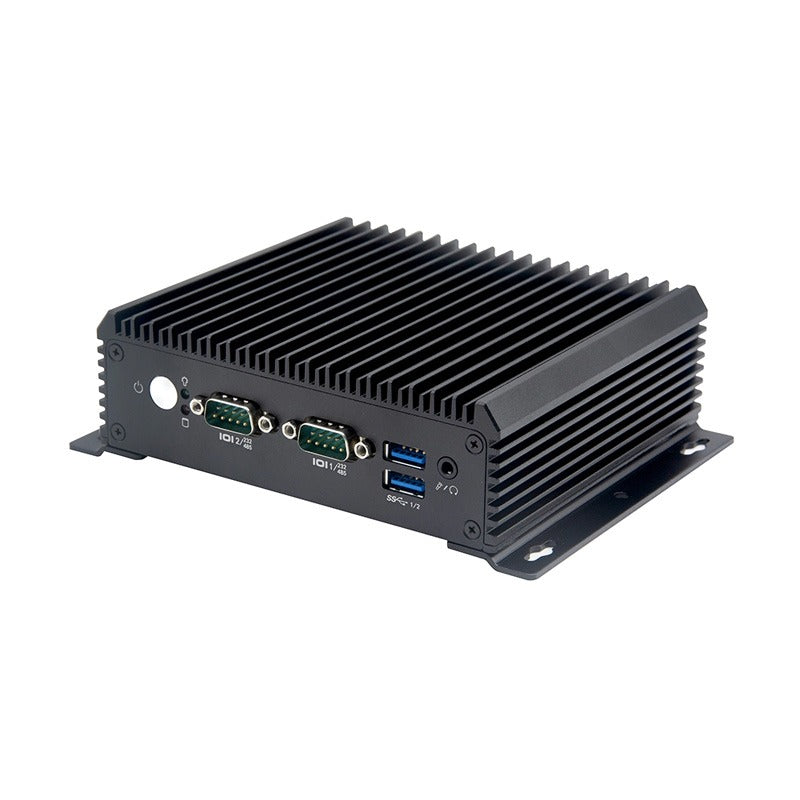

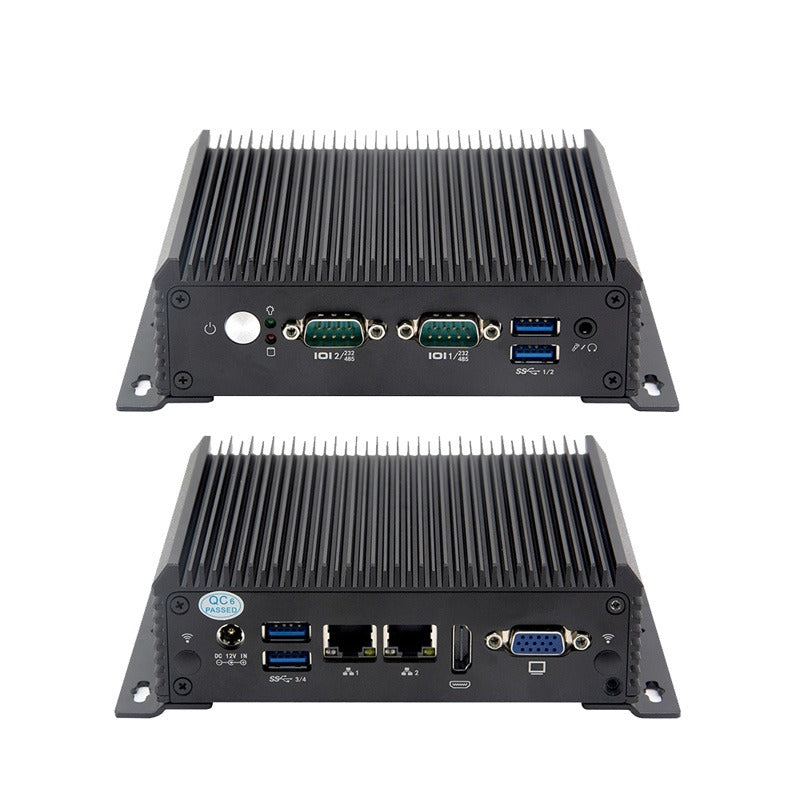

C2120
$425.00
Skip to product information
C2120
$425.00
- Intel® Celeron J6412 CPU
- 1x DDR4 SO-DIMM, up to 32GB
- 2x Gigabit LAN, Wake-on-LAN & PXE
- 2x RS232/485, 4x USB 3.0, HDMI + VGA
- Fanless Aluminum Design
- 12V DC, -10°C to 50°C
- Windows 10, 11 & Linux
SKU:
C2120
| Embedded Computer – Model C2120 | |
| CPU | Intel® Celeron J6412 Quad-Core / 4-Thread Processor Base Frequency: 2.00GHz TDP: 10W |
|---|---|
| Chipset | Integrated SoC |
| Memory | 1x DDR4 SO-DIMM Slot Supports 3200MHz Maximum 32GB |
| Storage | |
| M.2 | 1x M.2 Key-M (2280) Supports NVMe PCIe x2 SSD |
| SATA | 1x 2.5" Drive Bay (7mm thickness) |
| Display | |
| Video Output |
1x VGA 1x HDMI 2.0 (4096x2160 @ 60Hz) |
| Networking | |
| Ethernet | 2x Gigabit LAN (RTL8111H) Supports Wake-on-LAN & PXE |

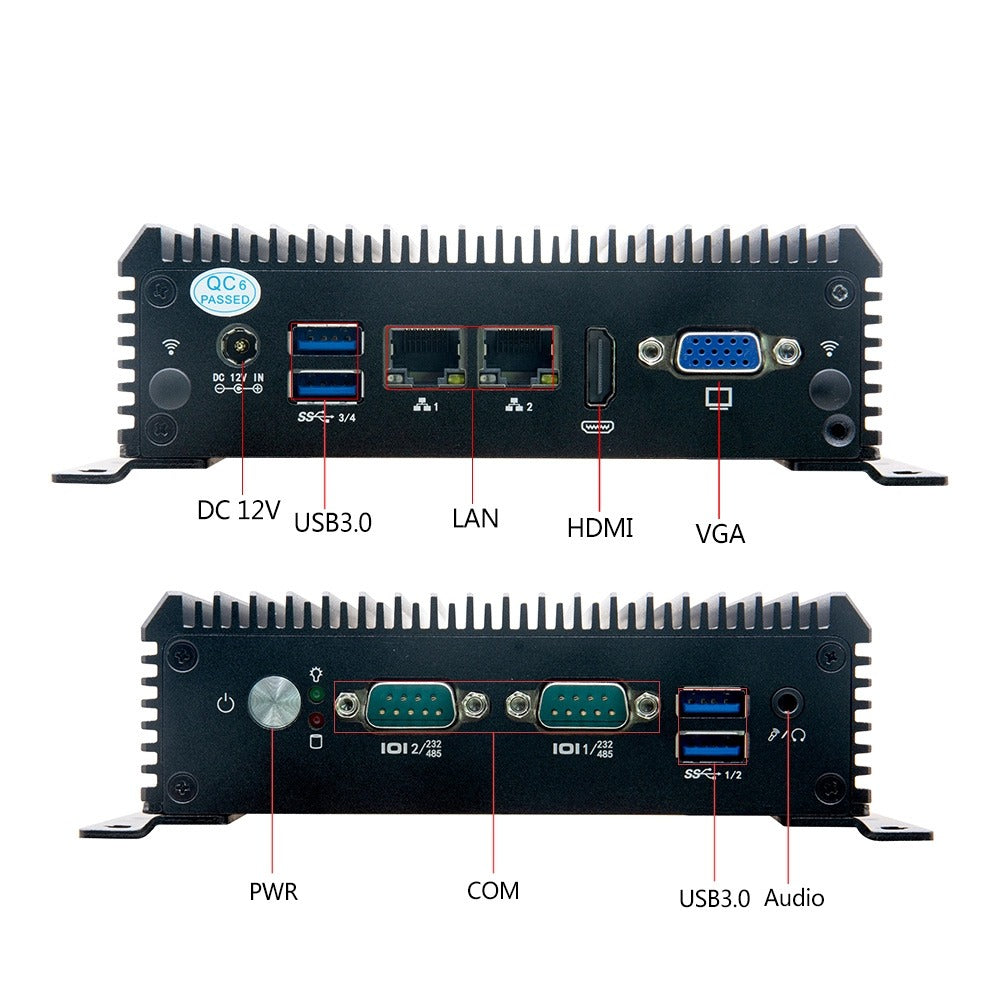

| I/O Interfaces | |
| Front USB | 2x USB 3.0 |
| Rear USB | 2x USB 3.0 |
| Serial Ports | 2x DB9 RS232/RS485 |
| Audio | 1x Line-out / Mic 2-in-1 Combo |
| Power Input | 1x DC 12V (5.5mm x 2.5mm) |
| LED Indicators | 1x Power 1x HDD Activity |
| Power Switch | 1x On/Off Button |
| Expansion | |
| Mini PCIe | 1x Mini PCIe Slot Supports WiFi / 4G Module |
| Mechanical | |
| Construction | All Aluminum Alloy Fanless Cooling Design |
| Color | Black |
| Dimensions | 141.4mm x 126mm x 43.5mm |
| Weight | 0.8kg (Barebone) |

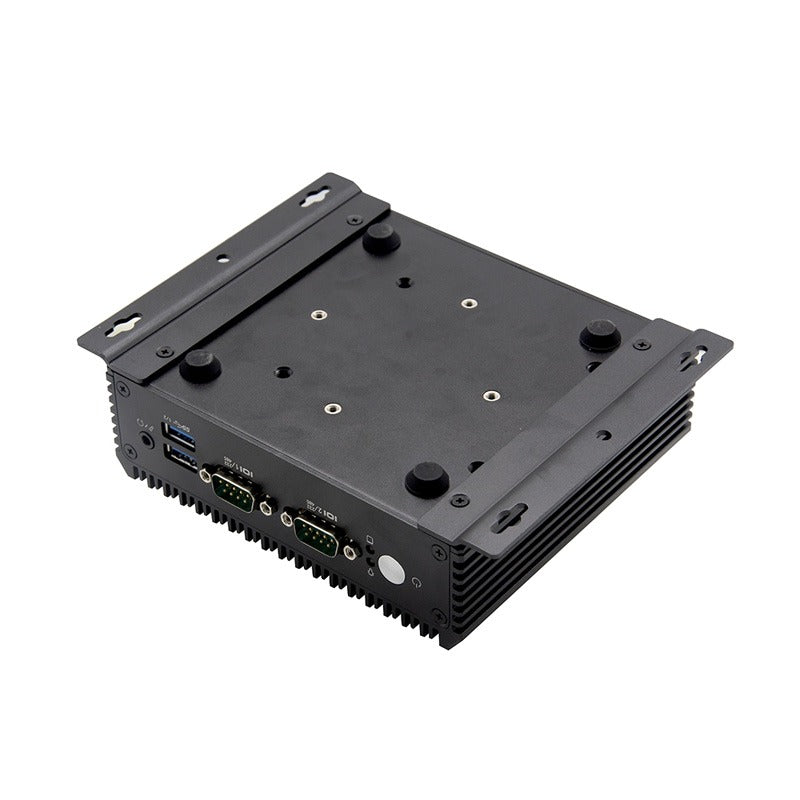

| Mounting Options | VESA Mount / Desktop / Wall Mount |
| Power | |
| Power Type | External Adapter |
| Input Voltage | DC 12V |
| Adapter Output | AC to DC, 36W |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% – 95% (Non-condensing) |
| Operating Vibration | 0.5g rms / 5–500Hz / Random |
| System Support | |
| Operating Systems | Windows 10 Windows 11 Ubuntu Linux |
| Watchdog Timer | Hardware Reset Function (0–255 seconds, 256 levels) |
