NX-i85R
$1,480.00
Skip to product information
NX-i85R
$1,480.00
- Intel® Celeron or P4 CPU
- 3x Full Size ISA
- 4x PCI 32bit
- 1x Serial Port & 1x Parallel Port
- Intel® 845GV Chipset
- 2U, 3U or 4U Rackmount
- MS DOS, 98, 2K, NT, XP & Linux
SKU:
NX-i85R

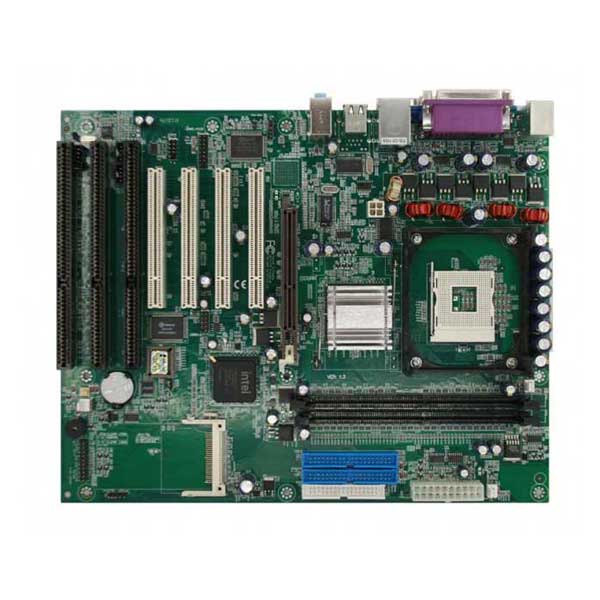

| Motherboard – Model NX800 | |
| Form Factor | ATX |
|---|---|
| Dimensions |
Height: 12.0" (306 mm) Width: 8.0" (203 mm) |
| Processor | |
| Socket | 478 |
| Series | Intel P4 / Celeron up to 3.06GHz |
| Memory | |
| Capacity | Up to 2GB |
| Type | DDR 266MHz Unbuffered |
| DIMM Sizes | 256MB, 512MB, 1GB |
| On-Board Devices | |
| Chipset | Intel 845GV chipset |
| Floppy | 1x Floppy Slot |
| IDE | 2x Enhanced IDE |
| Headers |
1x USB 2.0 Header 1x COM2 Header |
| Network Controller | ICH4 Integrated Ethernet, 10/100Mbps |
| Graphics | Intel 845GV chipset |
| AGP | Non-Functional |
| Expansion Slots | |
|
3x Full-Size ISA 4x PCI 32-bit |
|
| System BIOS | |
| BIOS Type | Award BIOS |
| Features | ACPI Supported |
| Rear I/O | |
| VGA | 1x D-Sub 15-pin Port |
| LAN | 1x RJ45 LAN Port |
| USB | 2x USB |
| Keyboard / Mouse | PS/2 Keyboard and Mouse Ports |
| Serial Port | 1x Fast UART 16550 Serial Port |
| Parallel Port | 1x Parallel Port |
| Audio | ICH4 Integrated Audio with AC97 Codec |
| Chassis | |
| Form Factor | 2U Rackmount |
|---|---|
| Motherboard Form Factor | ATX (12" x 10") |
| Dimensions |
Height: 3.46" (88 mm) Width: 17.02" (432.4 mm) Depth: 19.84" (504 mm) |
| Approx. Weight | 25 lbs |
| Drive Bays | |
| Internal | 4x 3.5" drive bays |
| External | 2x 5.25" drive bays |
| Front Panel | |
| Buttons | Power On/Off System Reset |
| LEDs | Power Status Network Activity HDD Activity |
| USB | 2x USB 2.0 Ports |
| Audio | N/A |
| Expansion Slots | |
| 7x Low Profile PCI Slots | |
| System Cooling | |
| Fans |
1x 80x25mm PWM Front Fan 1x 80x25mm PWM Rear Fan |
| 3U Rackmount Chassis | |
| Form Factor | 3U Rackmount Server |
|---|---|
| Dimensions | Height: 5.25" (133 mm) Width: 17.0" (432 mm) Depth: 20.8" (528 mm) |
| Approx. Weight | 40 lbs |
| Drive Bays | |
| Internal | 5x 3.5" bays |
| External | 2x 5.25" bays 1x 3.5" bay |
| Front Panel | |
| Buttons | Power On/Off Power Reset |
| LEDs | Power Status Hard Drive Activity LAN Activity LED |
| USB | 2x USB 2.0 Ports |
| Audio | N/A |
| Expansion Slots | |
| 7x Full-Height ISA/PCI Expansion Slots | |
| System Cooling | |
| Fans | 1x 80mm Front Fan 1x 60mm Rear Fan |
| 4U Rackmount Chassis | |
| Form Factor | 4U Rackmount Server |
|---|---|
| Motherboard Form Factor | ATX (12" x 9.6") CEB (12" x 10") EEB (12" x 13") |
| Dimensions | Height: 7.0" (175 mm) Width: 17.0" (432 mm) Depth: 21.0" (525 mm) |
| Approx. Weight | 45 lbs |
| Drive Bays | |
| Internal | 4x 3.5" bays 1x 2.5" bay |
| External | 3x 5.25" bays 1x 3.5" bay |
| Front Panel | |
| Buttons | Power On/Off Power Reset |
| LEDs | Power Status Hard Drive Activity LAN Activity LED |
| USB | 2x USB 2.0 Ports |
| Audio | N/A |
| Expansion Slots | |
| 7x Full-Height ISA/PCI Expansion Slots | |
| System Cooling | |
| Fans | 2x 80mm Front Fans |
