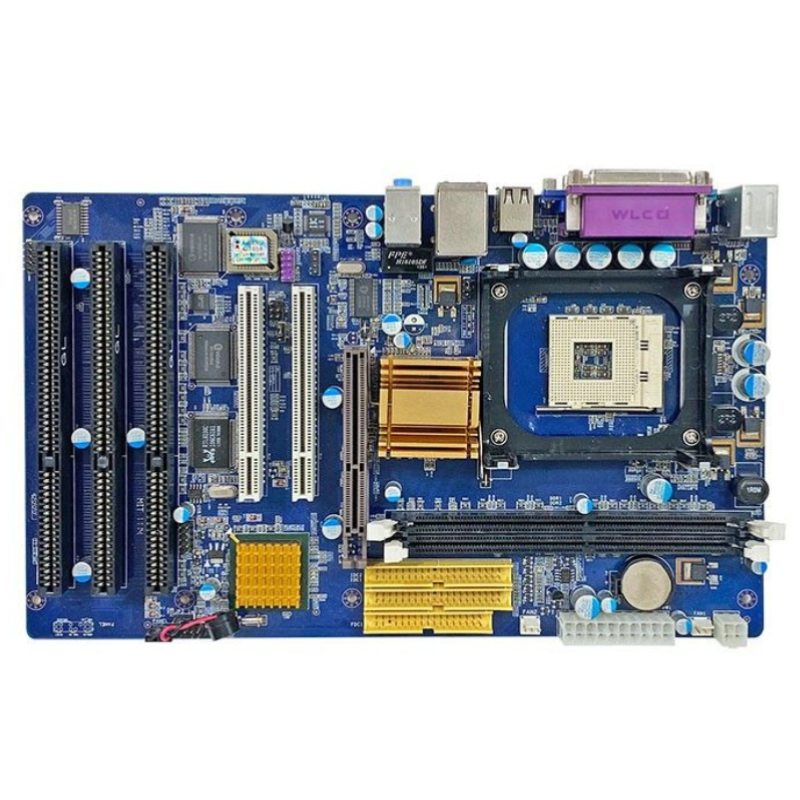

NX853 ATX motherboard with three full-size ISA slots, front view
NX853 Motherboard

NX853 Motherboard

$395.00 USD
  • Intel® Celeron or Pentium 4 CPU
  • 3x Full-Size ISA Slots
  • 2x 32-bit PCI Slots
  • 1x Serial Port & 1x Parallel Port
  • Intel® 845GV Chipset
  • ATX Form Factor
  • MS DOS, 98, 2K, NT, XP & Linux

SKU:
NX853-B
Motherboard *
Processor with Cooler
Memory
Adapter
Power Supply
Warranty *
Motherboard – Model NX853
Form FactorATX
DimensionsHeight: 12.0" (306 mm)
Width: 8.0" (203 mm)
Processor
Socket478
SeriesIntel Pentium 4 and Celeron CPU
Memory
Capacity2GB
TypeDDR200 / DDR266
DIMM Sizes256MB, 512MB, 1GB
On-Board Devices
Chipset Intel 845GV Chipset
GMCH: Intel 82845GV
ICH4: Intel 82801DB
Floppy1x Floppy Slot
IDE2x IDE Slots
Headers 1x USB 2.0 Header
1x COM2 Header
1x Audio Header
Network ControllerICH4 Integrated Ethernet, 10/100Mbps
GraphicsIntel® 845GV Chipset
AGPAccelerated Graphics Port (1.5V Key)
Expansion Slots
3x Full-Size ISA
2x PCI 32-bit
1x AGP
System BIOS
BIOS TypeAward BIOS
FeaturesACPI Supported
Rear I/O
VGA1x D-Sub 15-pin Port
LAN1x RJ45 LAN Port
USB2x USB Ports
Keyboard / MousePS/2 Keyboard and Mouse Ports
Serial Port1x Fast UART 16550 Serial Port
Parallel Port1x Parallel Port
AudioICH4 Integrated Audio with AC97 Codec
