NX81-T50
$725.00
Skip to product information
NX81-T50
$725.00
- Intel® 4th Gen CPU
- 2x PCI-e Slots
- 2x 32-bit PCI Slots
- 1x Serial Port & 1x Parallel Port
- 8x USB 2.0 Ports
- Windows XP, 7, 8, 10, 11 & Linux
- Micro Tower Chassis
SKU:
NX81-T50
| Motherboard – Model NX81 | |
| Form Factor | Micro ATX |
|---|---|
| Dimensions | Height: 9.0" (226 mm) Width: 6.7" (170 mm) |
| Processor | |
| Socket | LGA1150 |
| Series | Intel 4th Generation Core i7/i5/i3, Pentium, and Celeron Processors |
| Memory | |
| Capacity | Up to 16 GB |
| Type | DDR3-1600/1333 MHz Unbuffered |
| DIMM Sizes | 1GB, 2GB, 4GB, 8GB |
| DIMM Sockets | 2 |
| On-Board Devices | |
| Chipset | Intel H81 Express Chipset |
| SATA | 2x SATA 3Gb/s ports 2x SATA 6Gb/s ports |
| Network Controller | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Graphics | Integrated Graphics Processor – Intel® HD Graphics Support |
| Expansion Slots | |
| 1x PCI Express x16 Slot 1x PCI Express x1 Slot 2x PCI 32-bit Slots | |
| System BIOS | |
| BIOS Type | GIGABYTE UEFI DualBIOS |
| Features | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |

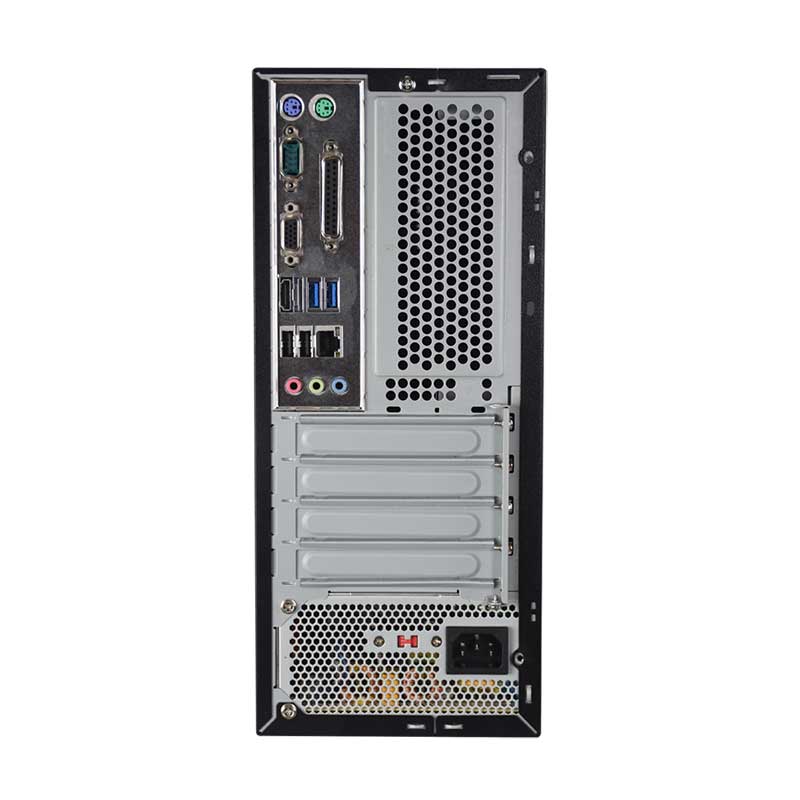

| Rear I/O | |
| Video | 1x HDMI Port 1x VGA Port |
| LAN | 1x RJ-45 Port |
| USB | 2x USB 3.0 Ports 2x USB 2.0 Ports |
| Keyboard / Mouse | 1x PS/2 Keyboard Port 1x PS/2 Mouse Port |
| Serial Port | 1x Serial Port |
| Parallel Port | 1x Parallel Port |
| Audio | 3x Audio Jacks (Line In, Line Out, Mic In) |
| Compatibility | |
| Supported Operating Systems | Windows XP, 7, 8, 10, 11 & Linux |
| Chassis | |
| Form Factor | Micro Desktop Chassis |
|---|---|
| Motherboard Form Factor | Micro-ATX |
| Dimensions |
Height: 5.5" (140 mm) Width: 12.0" (305 mm) Depth: 12.5" (318 mm) |
| Approx. Weight | 18 lbs |
| Drive Bays | |
| Internal | 1x 3.5" bay |
| External | 1x 3.5" bay 1x 5.25" bay |
| Front Panel | |
| Buttons | Power On/Off System Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 4x USB ports |
| Expansion Slots | |
| 4x Half-height PCI Expansion Slots | |
| System Cooling | |
| Fans | CPU heatsink and fan |
| Power Supply | |
| Output Watts | 300 Watts |
| AC Input | 115/230V~, 7/4A, 60/50Hz |
