NX372-T90
$1,034.00
Skip to product information
NX372-T90
$1,034.00
- Intel® Pentium III (P3) CPU
- 2x Full-Size ISA Slot
- 5x 32-bit PCI Slots
- 2x Serial Port & 1x Parallel Port
- VIA VT82C693A Chipset
- MS DOS, Win 3.1, 95, 98, 2K, NT, XP & Linux
- Mid Tower Workstation Chassis
SKU:
NX372-T90

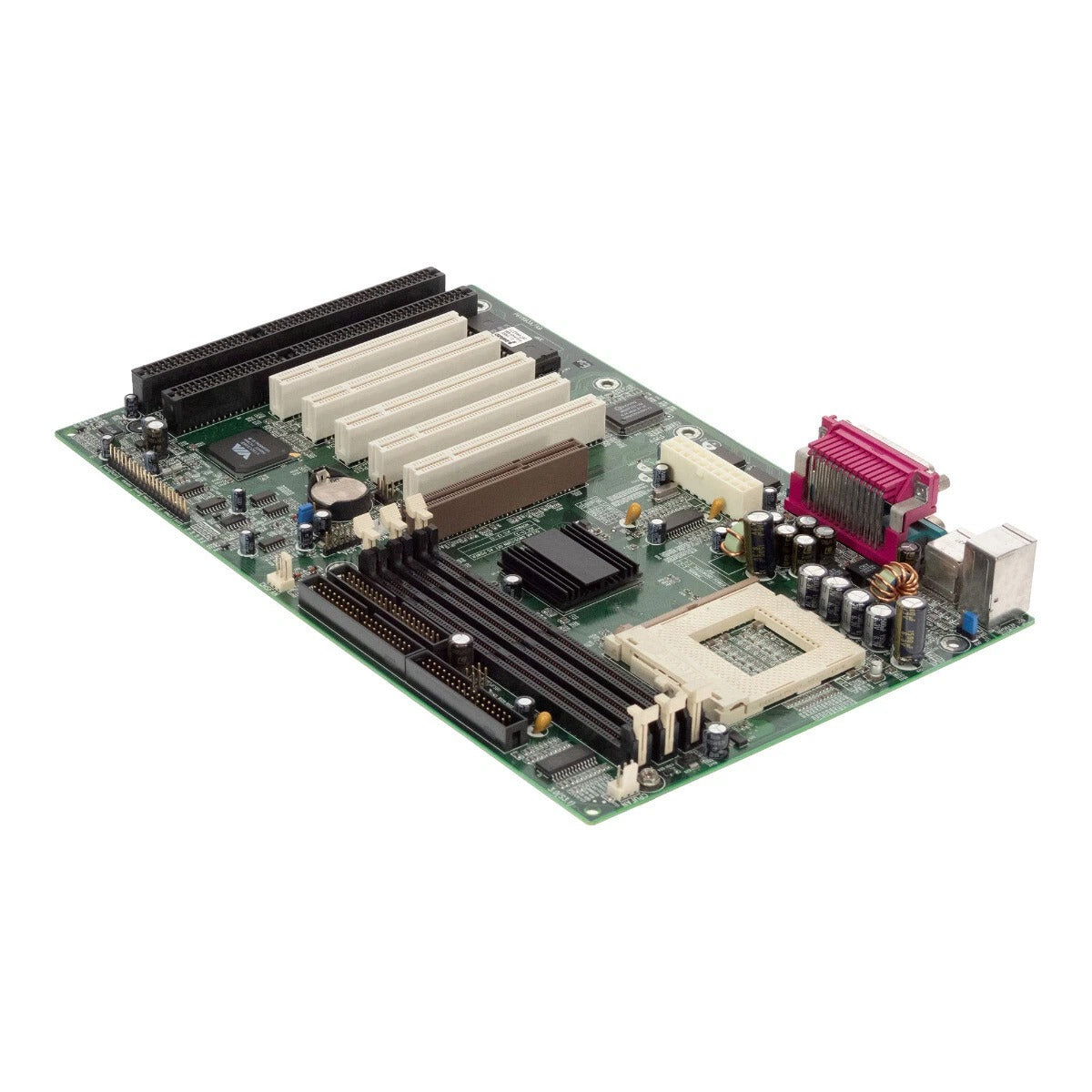

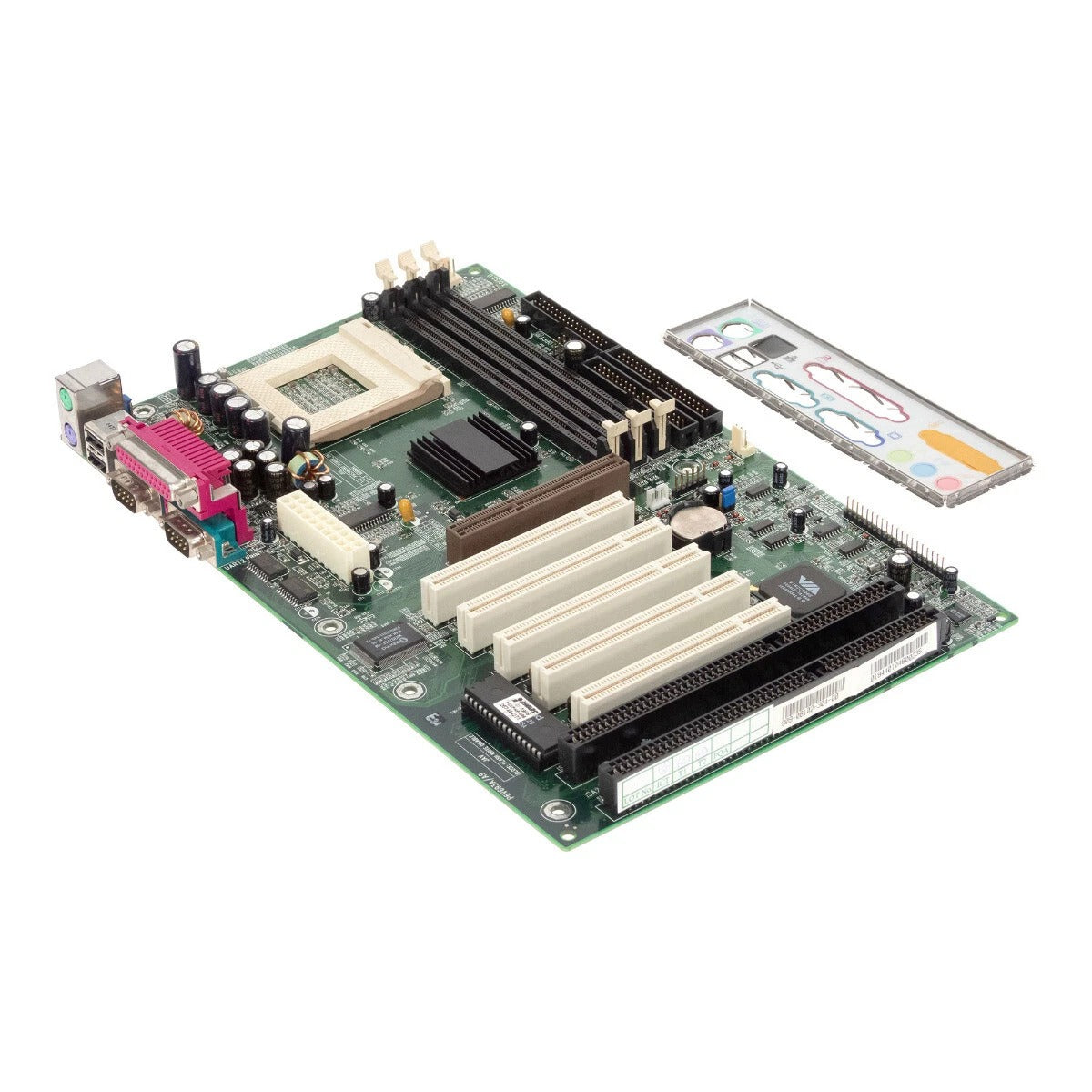

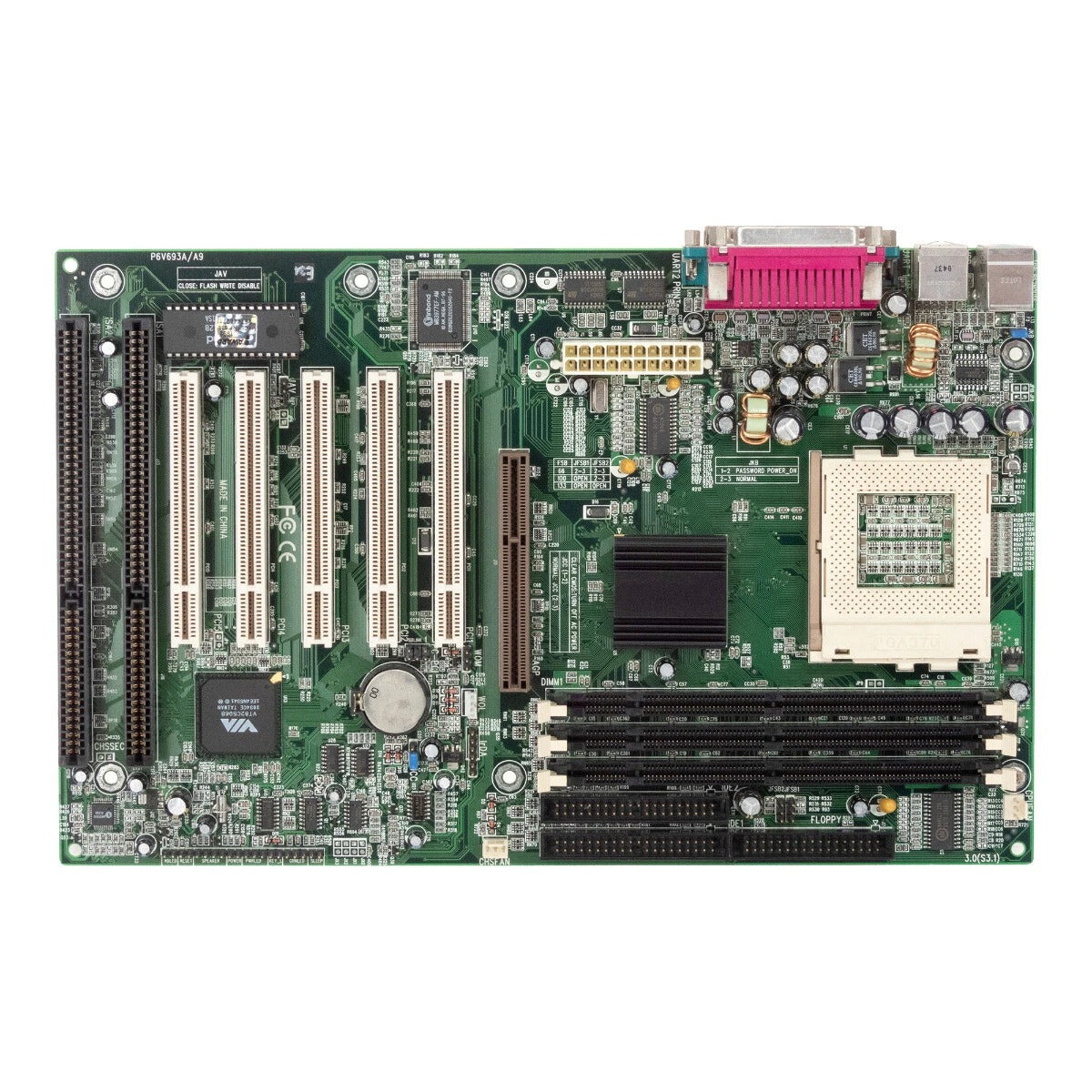

| Motherboard – Model NX372 | |
| Form Factor | ATX |
|---|---|
| Dimensions | Length: 12.0" (305 mm) Width: 7.6" (193 mm) |
| Processor | |
| Socket | 370 (FC-PGA / PPGA) |
| Series | Intel Pentium III FC-PGA up to 733 MHz Intel Celeron PPGA up to 533 MHz |
| Host Bus Speed | 66 / 100 / 133 MHz |
| Memory | |
| Capacity | 768MB (Max) |
| Type | SD-RAM PC66 / PC100 / PC133 (Unbuffered, ECC Support) 66MHz EDO DIMM |
| DIMM Slots | 3x 168-pin 3.3V DIMM Sockets |
| On-Board Devices | |
| Chipset |
VIA Apollo Pro 133 VT82C693A North Bridge VT82C596B South Bridge |
| Super I/O | Winbond W83977EF |
| Floppy | 1x Floppy Slot (up to 2 drives) |
| IDE | 2x IDE Slots (Ultra DMA/66, up to 4 devices) |
| Network Controllers | None |
| Graphics | None (AGP Slot) |
| Hardware Monitor | W83782D (Temperature / Voltage / Fan Speed) |
| Expansion Slots | |
|
2x ISA 5x PCI 32-bit 1x AGP (2X) |
|
| System BIOS | |
| BIOS Type | Award BIOS (2Mbit Flash ROM) |
| Features | ACPI Supported, Plug & Play, Flash Write Protect |
| Rear I/O | |
| VGA | None |
| LAN | None |
| USB | 2x USB Ports |
| Keyboard / Mouse | PS/2 Keyboard and Mouse Ports |
| Serial Port | 2x 16550 UART Serial Ports |
| Parallel Port | 1x Parallel Port |
| Audio | PC-PCI Sound Connector (Header) |

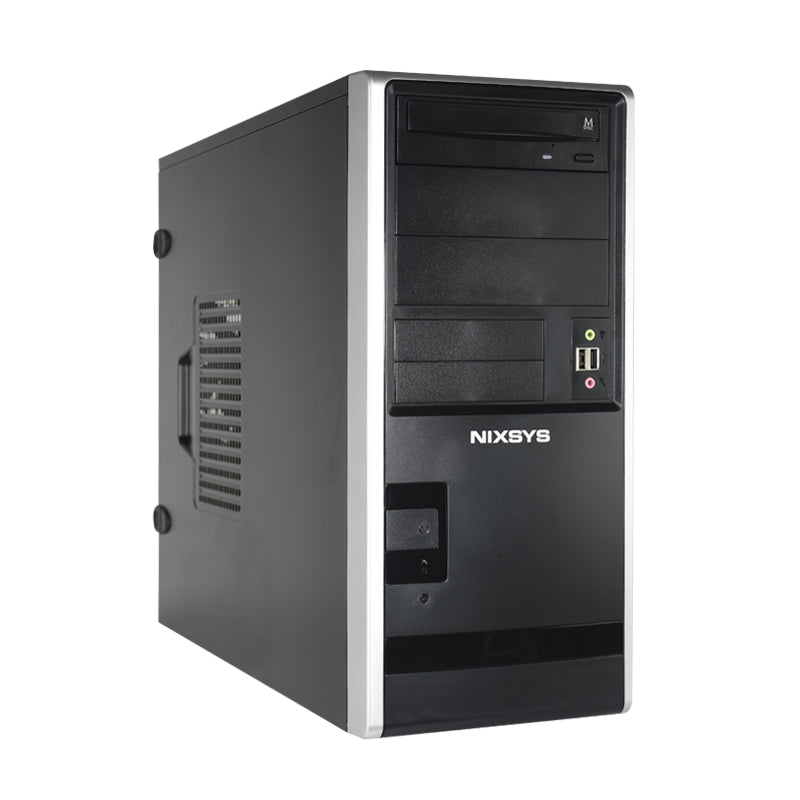

| Chassis | |
| Form Factor | Mid Size Tower Chassis |
|---|---|
| Motherboard Form Factor | ATX Micro-ATX |
| Dimensions |
Height: 17.0" (432 mm) Width: 19.0" (483 mm) Depth: 7.5" (190 mm) |
| Approx. Weight | 22 lbs |
| Drive Bays | |
| Internal | 1x 3.5" bay 1x 3.5" or 2.5" bay |
| External | 3x 5.25" bays 2x 3.5" bays |
| Front Panel | |
| Buttons | Power On/Off System Reset |
| LEDs | Power Status Hard Drive Activity |
| USB | 2x USB 2.0 ports |
| Audio | 1x 3.5mm Audio In 1x 3.5mm Audio Out |
| Expansion Slots | |
| 7x Full-Height ISA/PCI Expansion Slots | |
| System Cooling | |
| Fans | 1x 120mm chassis fan CPU heatsink and fan |
| Power Supply | |
| Output Watts | 450 Watts |
| AC Input | 100-240V~, 6-3A, 60-50Hz |
