NX370-Y Motherboard
$195.00
Skip to product information
NX370-Y Motherboard
$195.00
- Intel® Pentium III (P3) CPU
- 1x Full-Size ISA Slot
- 3x 32-bit PCI Slots
- 1x Serial Port & 1x Parallel Port
- VIA 8601A Chipset
- mATX Form Factor
- MS DOS, Win 3.1, 95, 98, 2K, NT, XP & Linux
SKU:
NX370-Y
| Motherboard – Model NX370 | |
| Form Factor | Micro ATX |
|---|---|
| Dimensions | Height: 9.5" (241 mm) Width: 7.6" (193 mm) |
| Processor | |
| Socket | 370 |
| Series | Intel Pentium III / Celeron up to 1.30 GHz |
| Memory | |
| Capacity | 512MB |
| Type | SD-RAM PC100 / PC133 (Unbuffered) |
| DIMM Sizes | 256MB, 512MB |
| On-Board Devices | |
| Chipset |
VIA 8601A or 8601T North Bridge VT82C686B South Bridge |
| Floppy | 1x Floppy Slot |
| IDE | 2x IDE Slots |
| Headers | 1x COM2 Header |
| Network Controllers | None |
| Graphics | SiS 301 Accelerator |
| Expansion Slots | |
|
1x Full-Size ISA 3x PCI 32-bit |
|
| System BIOS | |
| BIOS Type | Award BIOS |
| Features | ACPI Supported |

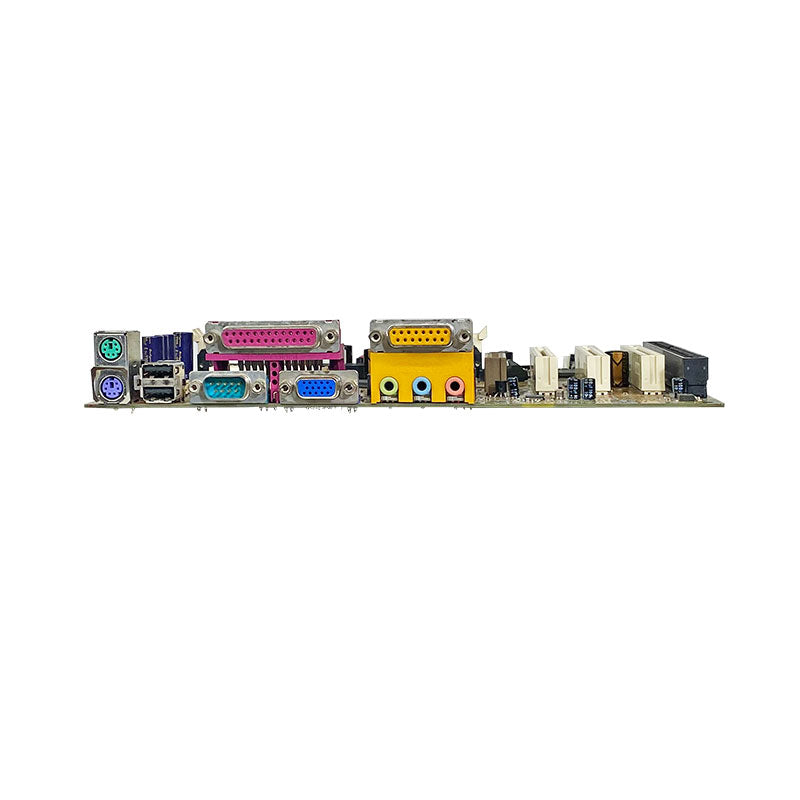

| Rear I/O | |
| VGA | 1x D-Sub 15-pin Port |
| LAN | None |
| USB | 2x USB Ports |
| Keyboard / Mouse | PS/2 Keyboard and Mouse Ports |
| Serial Port | 1x Fast UART 16550 Serial Port |
| Parallel Port | 1x Parallel Port |
| Audio | AC97 Codec Integrated Audio |
