Mid tower chassis, angled front view
NX-i95

NX-i95

$1,175.00 USD
  • Intel® Celeron or Pentium D CPU
  • 2x Full-Size ISA Slots
  • 5x 32-bit PCI Slots
  • 1x Serial Port & 1x Parallel Port
  • Intel® 945GV Chipset
  • MS DOS, Win 2K, XP, 7 & Linux
  • Mid Tower Chassis

SKU:
NX-i95
Base Computer *
Chassis *
Motherboard *
Processor *
Memory *
Primary Hard Drive (for Operating System) *
Secondary Drive(s) (max 3)
Floppy Drive
Video Adapter *
Network Adapter (Max 2) *
Additional PCI Adapter (Max 2)
Header Options
Power Supply *
Operating System *
Keyboard and Mouse
Warranty *
Monitor
Motherboard – Model NX945
Form FactorATX
DimensionsHeight: 12.0" (306 mm)
Width: 8.0" (203 mm)
Processor
Socket775
SeriesIntel Celeron D / Intel Pentium D
Memory
Capacity4GB
TypeDDR2 533/667/800 (Unbuffered)
DIMM Sizes256MB, 512MB, 1GB, 2GB
On-Board Devices
ChipsetIntel 945GV Chipset
IDE1x Enhanced IDE Channel
SATA4x SATA Devices
Network Controllers2x RTL8111C 10/100/1000 Ethernet Controllers
GraphicsIntel 945GV Chipset
Headers1x USB 2.0 Header
Expansion Slots
2x Full-Size ISA
5x PCI 32-bit
1x PCIe (x16)
System BIOS
BIOS TypeAward BIOS
FeaturesACPI / PnP Supported

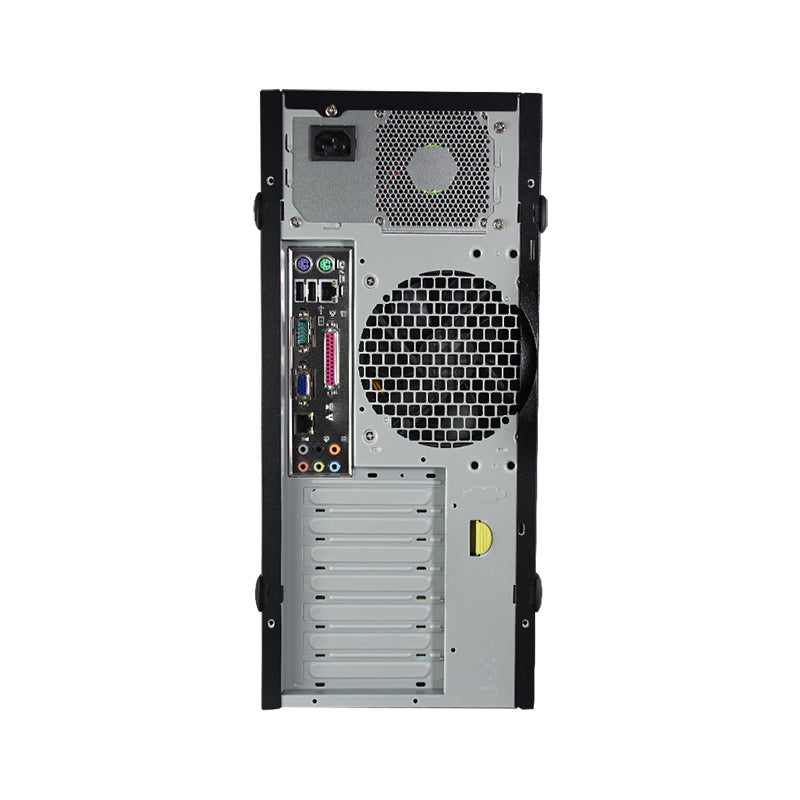

Rear I/O
VGA1x D-Sub 15-pin Port
LAN2x RJ45 LAN Ports
USB2x USB Ports
Keyboard / MousePS/2 Keyboard and Mouse Ports
Serial Port1x Fast UART 16550 Serial Port
Parallel Port1x Parallel Port
AudioICH4 Integrated Audio with AC97 Codec
Chassis
Form FactorMid Size Tower Chassis
Motherboard Form FactorATX
Micro-ATX
Dimensions Height: 17.0" (432 mm)
Width: 19.0" (483 mm)
Depth: 7.5" (190 mm)
Approx. Weight22 lbs
Drive Bays
Internal1x 3.5" bay
1x 3.5" or 2.5" bay
External3x 5.25" bays
2x 3.5" bays
Front Panel
ButtonsPower On/Off
System Reset
LEDsPower Status
Hard Drive Activity
USB2x USB 2.0 ports
Audio1x 3.5mm Audio In
1x 3.5mm Audio Out
Expansion Slots
7x Full-Height ISA/PCI Expansion Slots
System Cooling
Fans1x 120mm chassis fan
CPU heatsink and fan
Power Supply
Output Watts450 Watts
AC Input100-240V~, 6-3A, 60-50Hz
