NX-i490
$1,340.00
Skip to product information
NX-i490
$1,340.00
- Intel® Celeron or Pentium 4 CPU
- 3x ISA Slots
- 2x 32-bit PCI Slots
- 1x Serial Port & 1x Parallel Port
- Intel® 845GV Chipset
- MS DOS, 98, 2K, NT, XP & Linux
- 4U Rackmount Chassis
SKU:
NX-i490

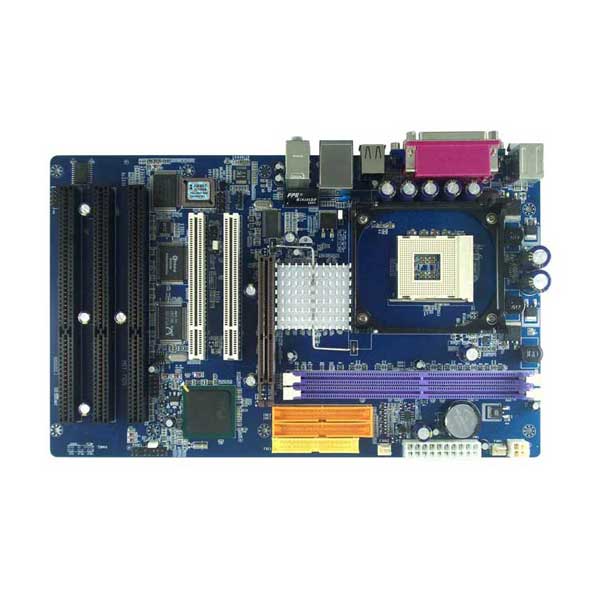

| Motherboard – Model NX853 | |
| Form Factor | ATX |
|---|---|
| Dimensions | Height: 12.0" (306 mm) Width: 8.0" (203 mm) |
| Processor | |
| Socket | 478 |
| Series | Intel Pentium 4 and Celeron CPU |
| Memory | |
| Capacity | 2GB |
| Type | DDR200 / DDR266 |
| DIMM Sizes | 256MB, 512MB, 1GB |
| On-Board Devices | |
| Chipset |
Intel 845GV Chipset GMCH: Intel 82845GV ICH4: Intel 82801DB |
| Floppy | 1x Floppy Slot |
| IDE | 2x IDE Slots |
| Headers |
1x USB 2.0 Header 1x COM2 Header 1x Audio Header |
| Network Controller | ICH4 Integrated Ethernet, 10/100Mbps |
| Graphics | Intel® 845GV Chipset |
| AGP | Accelerated Graphics Port (1.5V Key) |
| Expansion Slots | |
|
3x Full-Size ISA 2x PCI 32-bit 1x AGP |
|
| System BIOS | |
| BIOS Type | Award BIOS |
| Features | ACPI Supported |
| Rear I/O | |
| VGA | 1x D-Sub 15-pin Port |
| LAN | 1x RJ45 LAN Port |
| USB | 2x USB Ports |
| Keyboard / Mouse | PS/2 Keyboard and Mouse Ports |
| Serial Port | 1x Fast UART 16550 Serial Port |
| Parallel Port | 1x Parallel Port |
| Audio | ICH4 Integrated Audio with AC97 Codec |

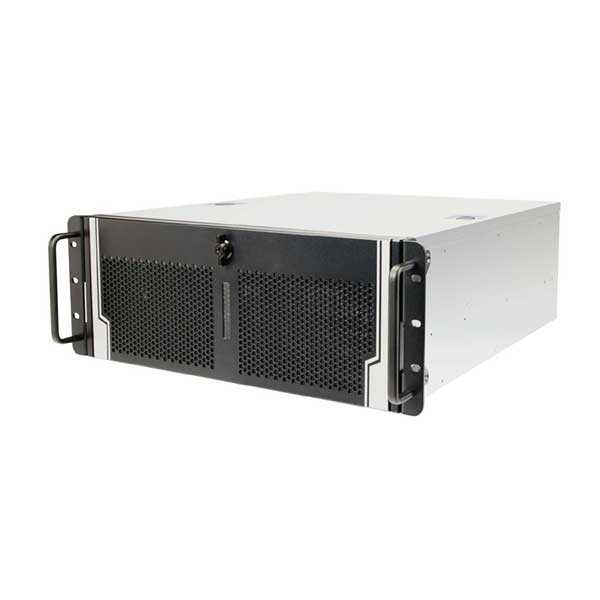

| 4U Rackmount Chassis | |
| Form Factor | 4U Rackmount Server |
|---|---|
| Motherboard Form Factor | ATX (12" x 9.6") CEB (12" x 10") EEB (12" x 13") |
| Dimensions | Height: 7.0" (175 mm) Width: 17.0" (432 mm) Depth: 21.0" (525 mm) |
| Approx. Weight | 45 lbs |
| Drive Bays | |
| Internal | 4x 3.5" bays 1x 2.5" bay |
| External | 3x 5.25" bays 1x 3.5" bay |
| Front Panel | |
| Buttons | Power On/Off Power Reset |
| LEDs | Power Status Hard Drive Activity LAN Activity LED |
| USB | 2x USB 2.0 Ports |
| Audio | N/A |
| Expansion Slots | |
| 7x Full-Height ISA/PCI Expansion Slots | |
| System Cooling | |
| Fans | 2x 80mm Front Fans |
